Featured image of 3D Printing with PETG – How to Succeed
The Perfect PET

3D Printing with PETG – How to Succeed

Picture of Hironori Kondo
by Hironori Kondo
Oct 9, 2018

Easily printable PETG plastics have quickly come to replace ABS for temperature-resistant, high-strength parts. Here's how to succeed printing with PETG.

Printing with PETG An Overview

Printed successfully, PETG performs incredibly!
Printed successfully, PETG performs incredibly! Source: All3DP

PETG, short for polyethylene terephthalate glycol, is a tough, temperature-resistant, and highly impact-resistant plastic often used in FDM-style 3D printing. There’s quite a lot to this material, so check out our full filament guide for more.

Here, we’ll take you through how to successfully print with PETG and help you troubleshoot common issues. While printing with PETG is certainly less challenging than with ABS, it does have its caveats, which we will address.

Watch out for:

  • Nozzle temperature
  • Bed temperature
  • Bed surfaces/adhesion
  • Retraction settings
  • Fan speeds
  • Support settings
  • Moisture absorption

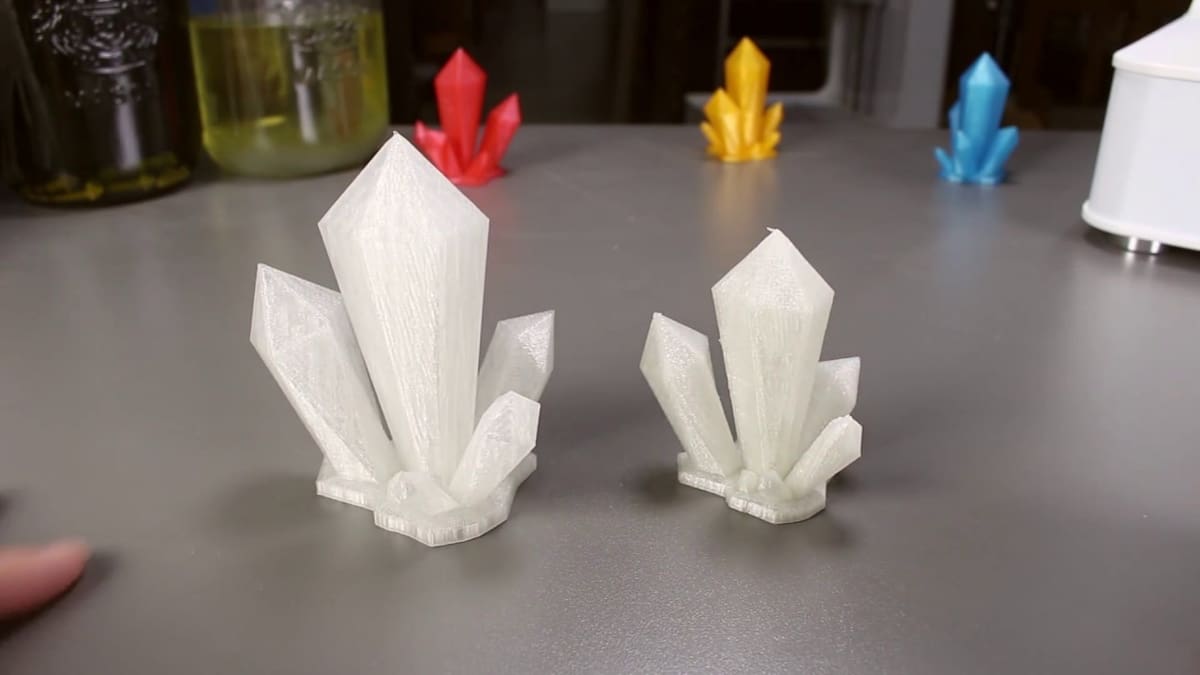

Printing with PETG Tuning Print Settings

Tune your settings for optimal performance
Tune your settings for optimal performance Source: Thomas Sanladerer's Youtube Channel

To start, open your slicing software to access your print settings. You’ll want to tune these to your PETG filament for optimal results.

Initial Settings

If your slicer has built-in PETG material profiles, those will be a great place to start. Otherwise, you can take your ordinary PLA settings and make a couple of changes:

  • Increase the nozzle temperature as per manufacturer recommendations (usually between 220 and 260 ºC)
  • Increase the bed temperature as per manufacturer recommendations (usually between 50 and 85 ºC)
  • Decrease fan speeds to somewhere in the range of 20 to 50 %

Fine-Tuning

Using the settings described above, try printing a test piece. Two things you’ll notice about PETG is that it’s quite prone to stringing, and excessive cooling can delaminate layers.

Using the test piece, modify your print settings. If layers are not staying together, decrease fan speeds or increase the print temperature. If stringing is severe, increase the retraction speed or distance. If parts are curling or deforming, lower the print temperature.

For more help diagnosing print artifacts, you can refer to our troubleshooting guide

Keep tuning until you’re satisfied with your results. If issues persist, the following tips may be helpful.

Printing with PETG Tip #1: Use Gluestick or Hairspray

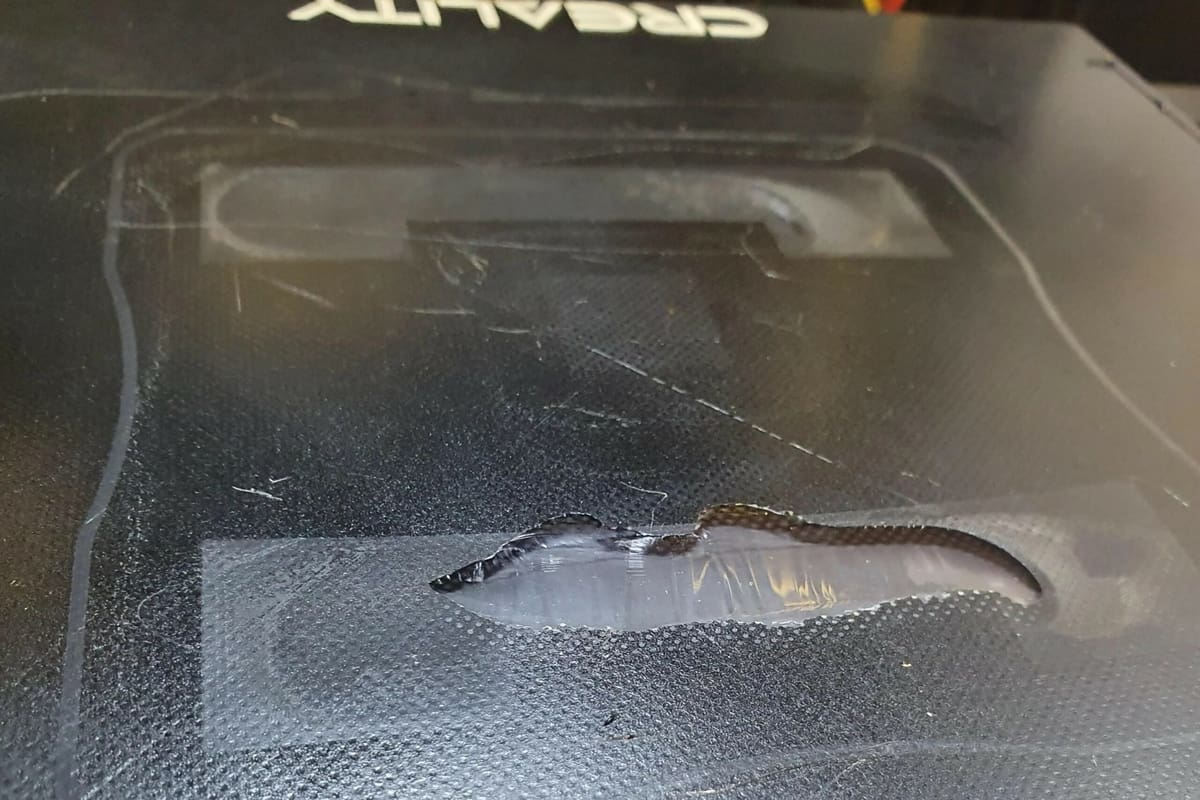

PETG sticks too well to PEI and glass.
PETG sticks too well to PEI and glass. Source: Thomas Sanladerer / YouTube

Usually, glue stick and hairspray are applied to print surfaces to help parts stick to the bed, so are only needed when adhesion is poor.

PETG, however, often sticks too well — enough to tear out pieces of your printed part or build surface.

Always use glue stick or hairspray as a release agent, and never print directly on something like Buildtak, PEI, or glass. That way, your parts will come off with the agent and not with bits and pieces of your precious build surface.

Printing with PETG Tip #2: Get Retraction Right

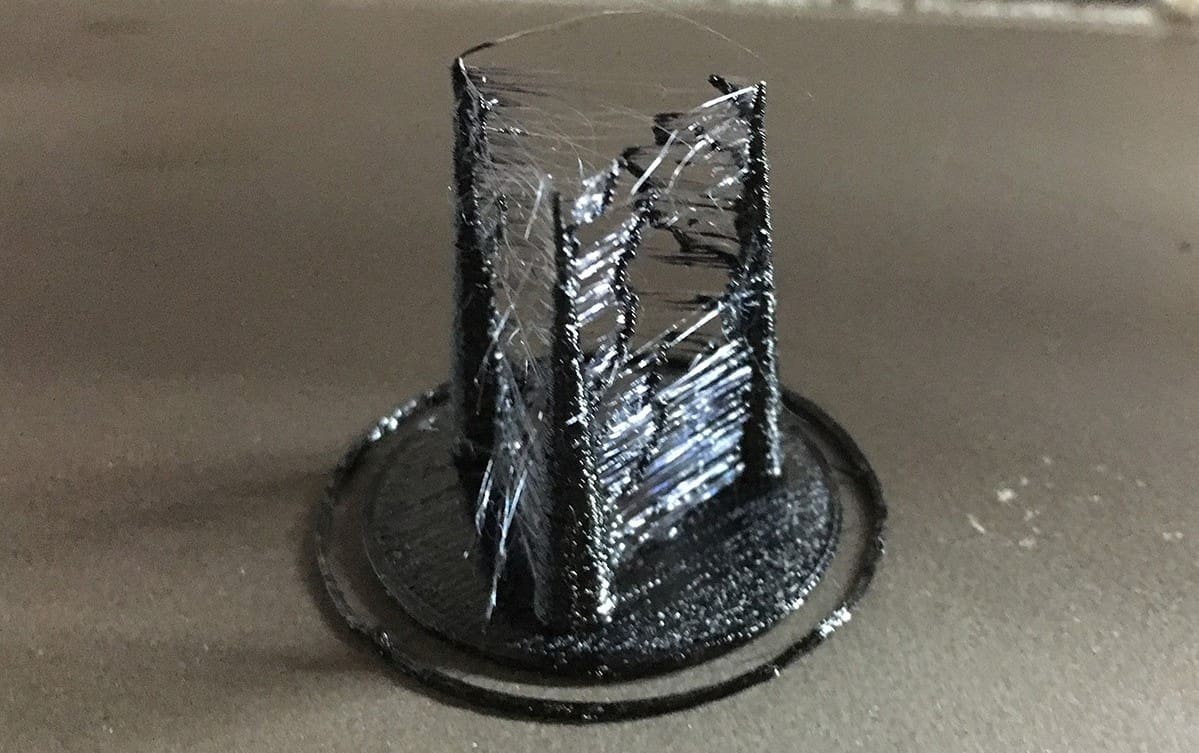

PETG has a high tendency to ooze.
PETG has a high tendency to ooze. Source: Thomas Sanladerer / YouTube

As explained already, PETG has a high tendency to string and ooze. And the material’s toughness makes strings of molten plastic difficult to break, leading to unsightly webs and wisps on your prints.

These can be mitigated by properly tuning your print settings, described earlier. In particular, try to increase retraction distance, retraction speed, and travel speed, within reasonable limits.

Finally, if all else fails, a little help from a heat gun can take care of any remaining strings.

Printing with PETG Tip #3: Prevent Cracking

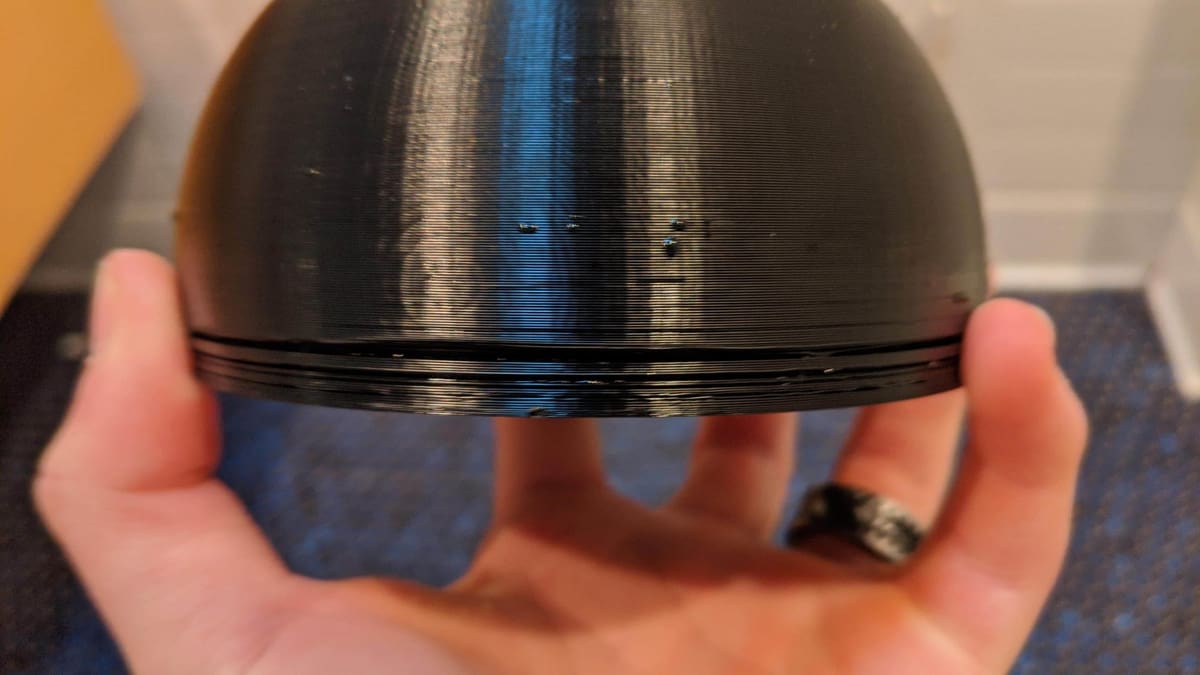

PETG prints can split along layers.
PETG prints can split along layers. Source: Thomas Sanladerer / YouTube

If you’re transitioning to PETG from PLA, you may find that PETG cracks rather easily. While PLA benefits from large amounts of cooling, PETG can suffer if it’s cooled too quickly.

If print layers begin to separate or crack, reduce the fan speed. PETG retains its shape at much higher temperatures than PLA, so overhangs and complex shapes will still come out sharp. The reduced cooling will give extruded plastic time to fully bond with the rest of the model.

Printing with PETG Tip #4: Give Support Structures Space

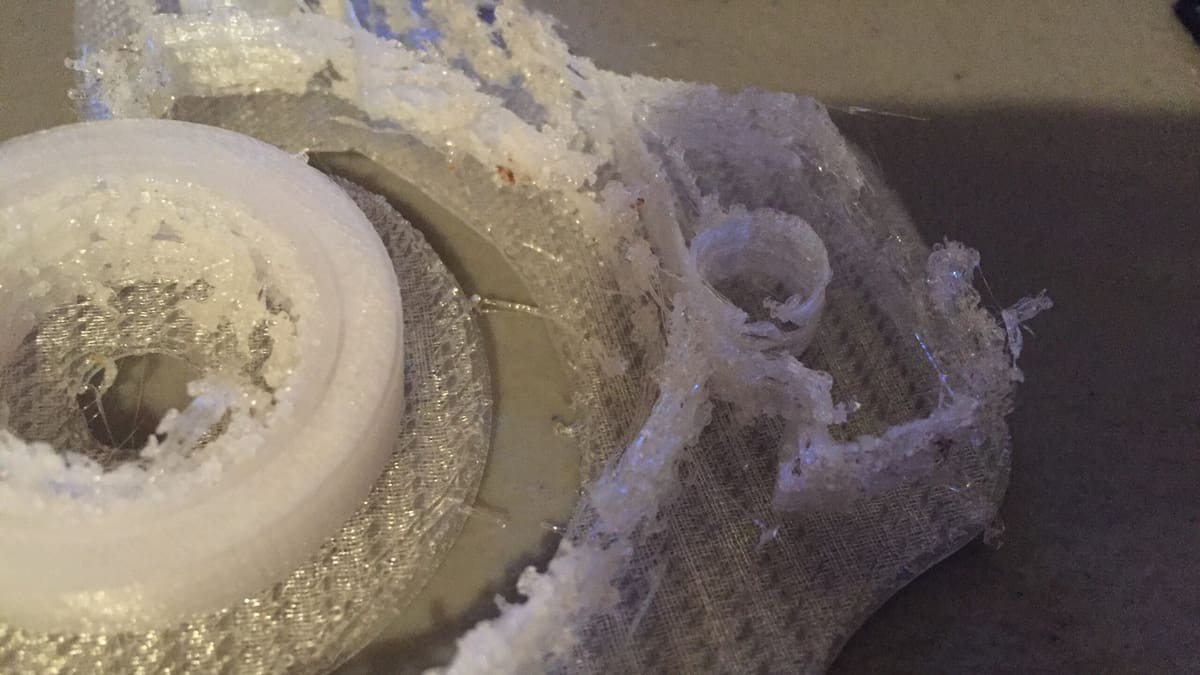

PETG supports may need larger air gaps.
PETG supports may need larger air gaps. Source: 3DHubs

As with any other FDM printing material, some models printed in PETG may require support structures.

However, once tuned for layer adhesion, PETG can stick too well to itself, making supports difficult to remove. You may want to dive into your slicing software’s more advanced settings and increase the distance between the support structures and your actual model (“Support Z Gap” or similar).

Printing with PETG Tip #5: Keep PETG Dry

Store PETG in a dry environment.
Store PETG in a dry environment. Source: Thomas Sanladerer / YouTube

After printing PETG for a while, you might begin to notice deteriorating print quality and strength.

This is because PETG is hygroscopic, meaning that it easily absorbs moisture from the air. This moisture deteriorates the material itself and can ruin an otherwise fine spool of filament.

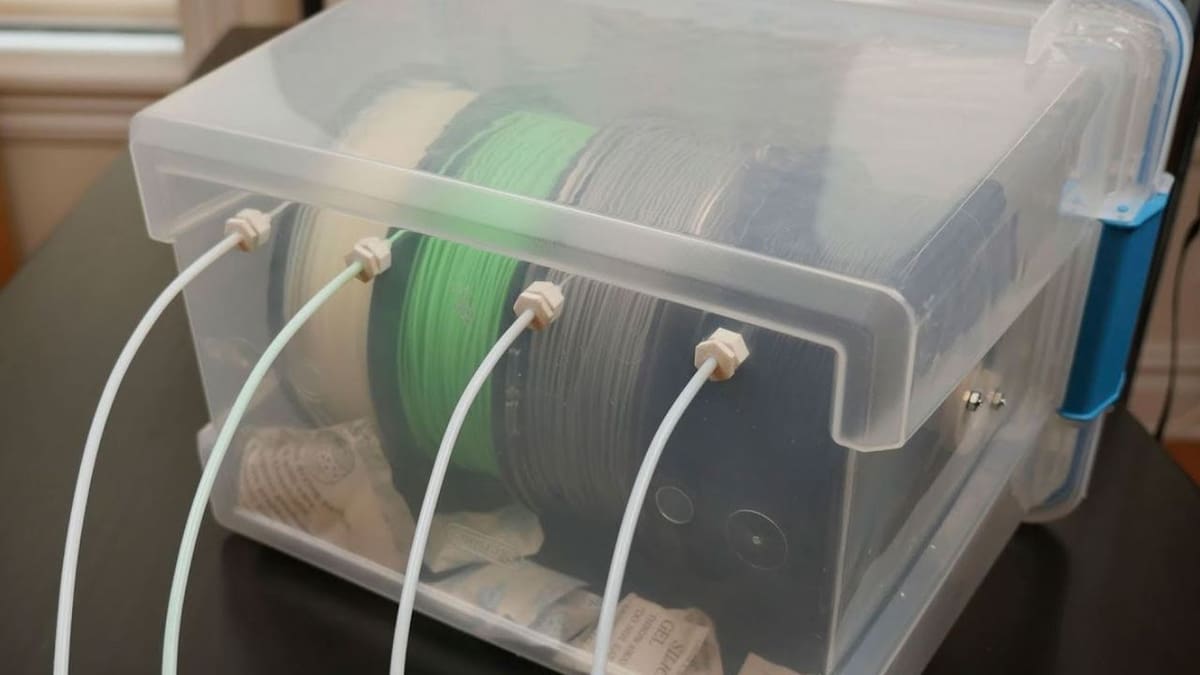

As such, keep your filament stored in a dry environment, like in an airtight bag or box filled with desiccant packs. This should preserve the filament and prevent it from absorbing too much moisture.

If your filament is already wet, then you can dry it out with an oven set at around 60 °C. Leave the spool in the oven for a few hours while the moisture is cooked out.

Printing with PETG Print On!

Benchy printed in PETG.
Benchy printed in PETG. Source: Thomas Sanladerer / YouTube

With just a little bit of work, you can get incredibly high-strength, high-quality prints with PETG filament. Hopefully, this guide helped get you started with this incredibly versatile material!

If you want to find out more about PETG, we have a helpful and thorough PETG guide. For general troubleshooting tips, check out our 2018 Troubleshooting Guide

Happy printing!
