FDM 3D prints generally have a rough surface finish, which is visible to the eye, but they can be easily post-processed to achieve the desired look and feel. Throughout this article, we highlight 3D printing post-processing techniques to help you get the best out of your FDM 3D prints.

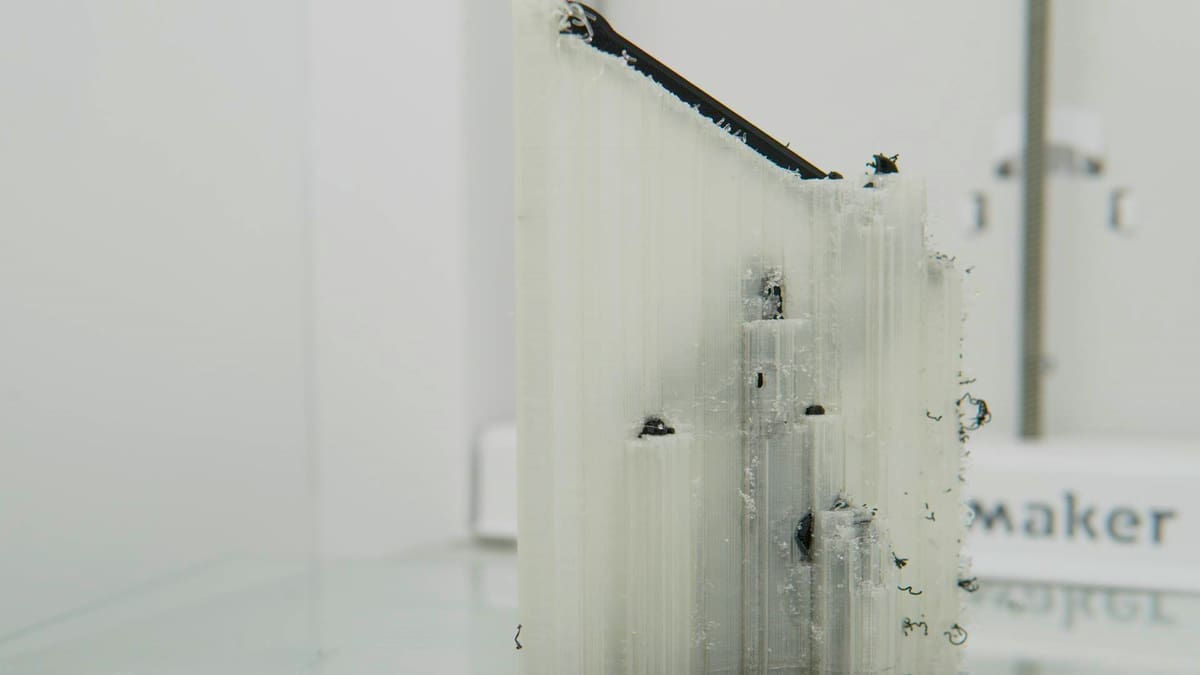

Even though support removal is a must in FDM 3D printing, proper planning can greatly improve final surface quality. This is done through eliminating unnecessary material waste and complicated supports, which may leave marks on the print surface.
Supports can be of two types: soluble and insoluble. Let’s look at them one by one.
Soluble: Soluble materials dissolve in water or specific chemicals. HIPS, generally used as a support with ABS material, dissolves in a chemical named D-limonene. The print is dipped in the chemical and the support printed with HIPS material will completely dissolve, leaving only the necessary part. Another material, PVA, is generally used as a support with PLA material and dissolves in water.
Naturally, these types of supports make removal much easier than the usual push-pull-tug method of removal using clippers (or fingers).
Insoluble: Insoluble materials are the normal printing materials like PLA, ABS, Nylon, or PC. These materials are typically used for prints as well as their supports when using a single extruder. Such supports are removed by hand or flush cutters.
Sometimes these supports are easy to remove but, if generated in critical locations, they can be difficult to remove and may damage the print.
Soluble or insoluble, support structures still leave marks at the touch points of a print. These can be further post-processed to achieve a smooth and even finish.
Pros & Cons of Support Removal

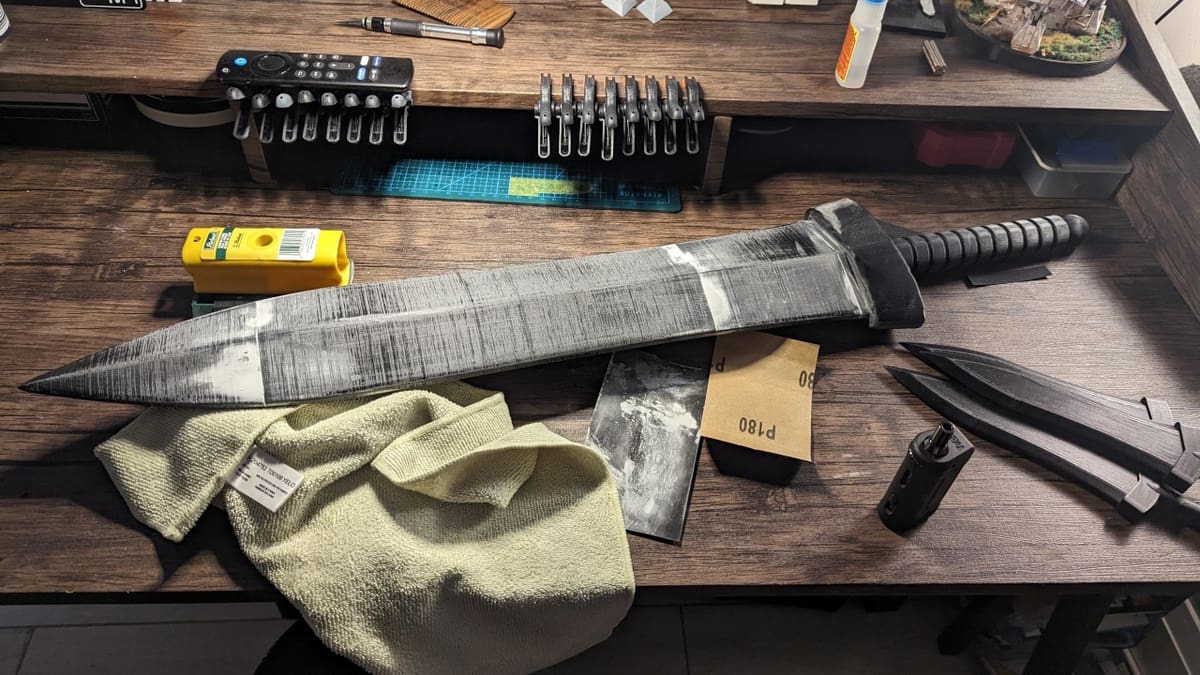

Sanding is the most common 3D printing post-processing method. It’s accomplished using sandpaper of varying grits. The usual process is to start with a low grit sandpaper and then move up, in stages, towards higher grit sandpapers (for example around 2000 grit).
Pros & Cons of Sanding

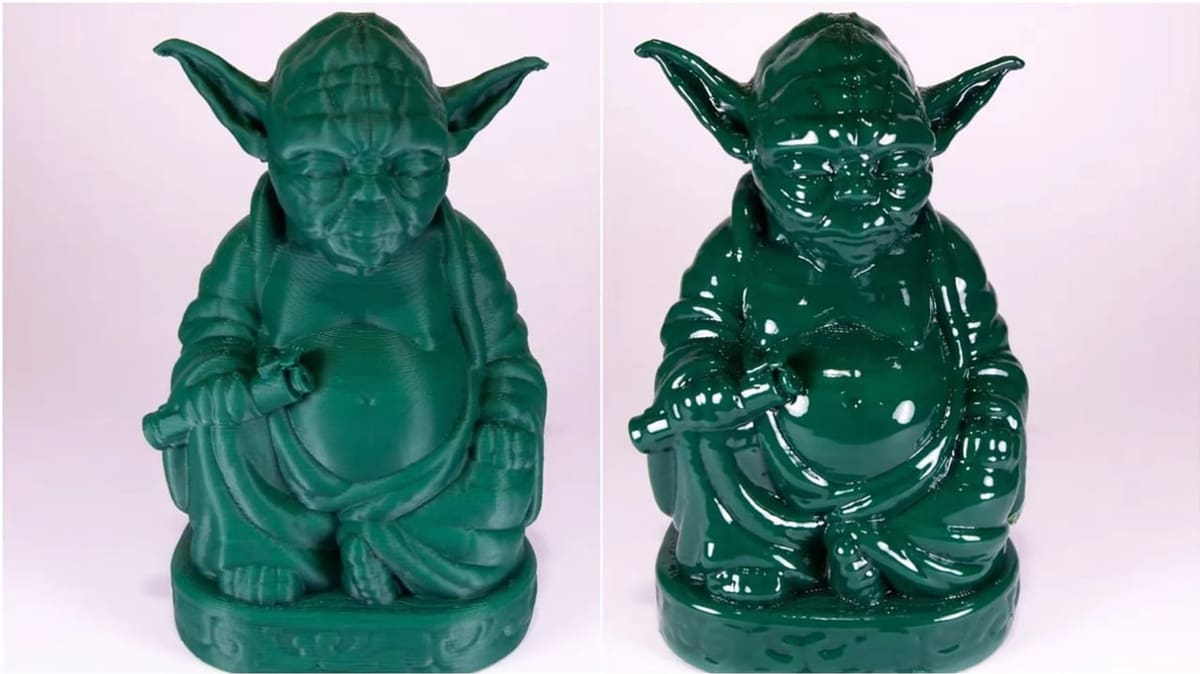

Acetone smoothing is a popular 3D printing post-processing technique for ABS material. It involves the 3D printed part being exposed to acetone vapors in a closed environment (generally in a glass enclosure). The vapors react with the outer layer of the print and melt it. This results in layer lines fading, which indirectly smoothens the outer layer of the print and gives it a shiny look.
Pros & Cons of Acetone Smoothing
NOTE: Acetone is a highly flammable and can explode. Therefore, proper precautions should be followed while carrying out this process. Even acetone fumes are harmful if inhaled, causing irritation and other negative effects. The process must be carried out in a well-ventilated area.

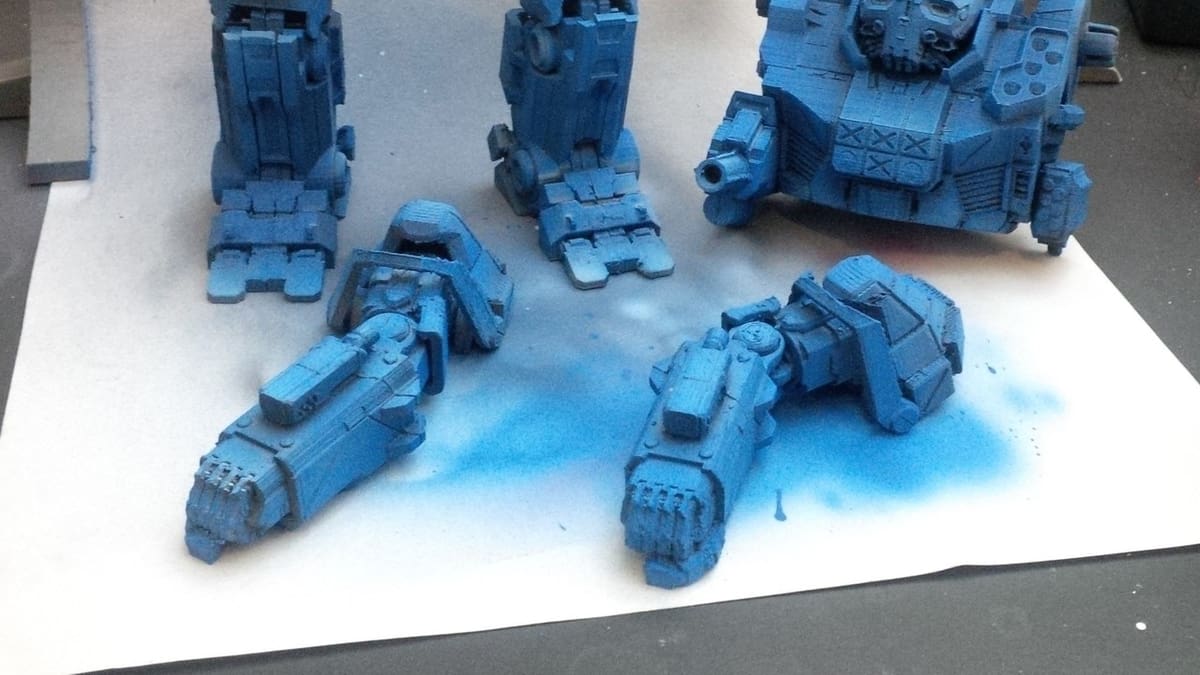

Priming simply means coating the part with a primer paint or a primer spray. It acts as a base layer that prepares the surface for the desired paint. This 3D printing post-processing technique can significantly enhance the look and feel of the product.
For priming, it is recommended that the product is sanded first with a low and medium grit sandpaper. This removes the layer lines and exposes the surface. After sanding the part, spray (or apply) the primer onto the part in two separate coats.
Once the model has dried, paint can be applied using a brush or spray. Masking techniques, for example using tape, can help with sharp color intersections.
Pros & Cons of Priming & Painting
NOTE: Take proper safety precautions while spraying primer and paints. Carry out both tasks in a well-ventilated area or outdoors.

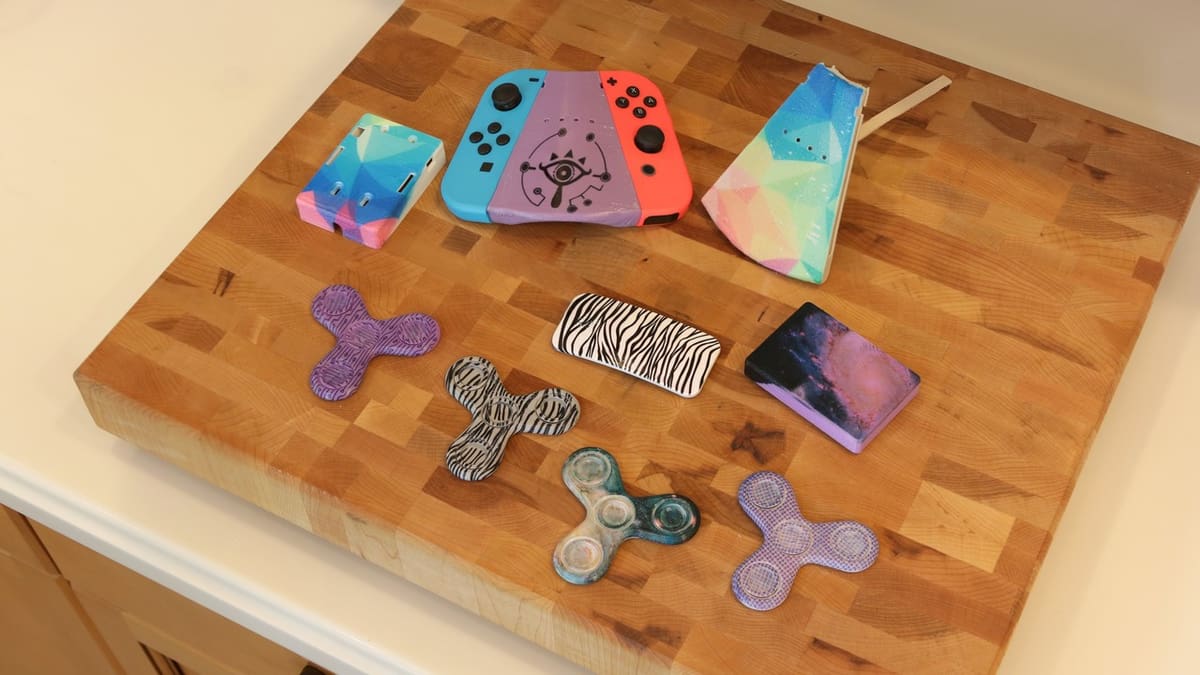

Hydro dipping is a relatively new technique to be used with 3D printed parts. Though typically used on a large scale for industrial products, small-scale hydro dipping can easily be applied to 3D printed parts for a great look.
Hydro dipping, also called as hydrographics, immersion printing, water transfer printing, or water transfer imaging, is a process of applying printed graphic designs to solid objects. This 3D printing post-processing technique is used on various materials like plastic, metal, wood, or glass.
Note that this is only used for enhancing the aesthetics of the object and does not change any dimensional properties nor the feel.
Pros & Cons of Hydro Dipping

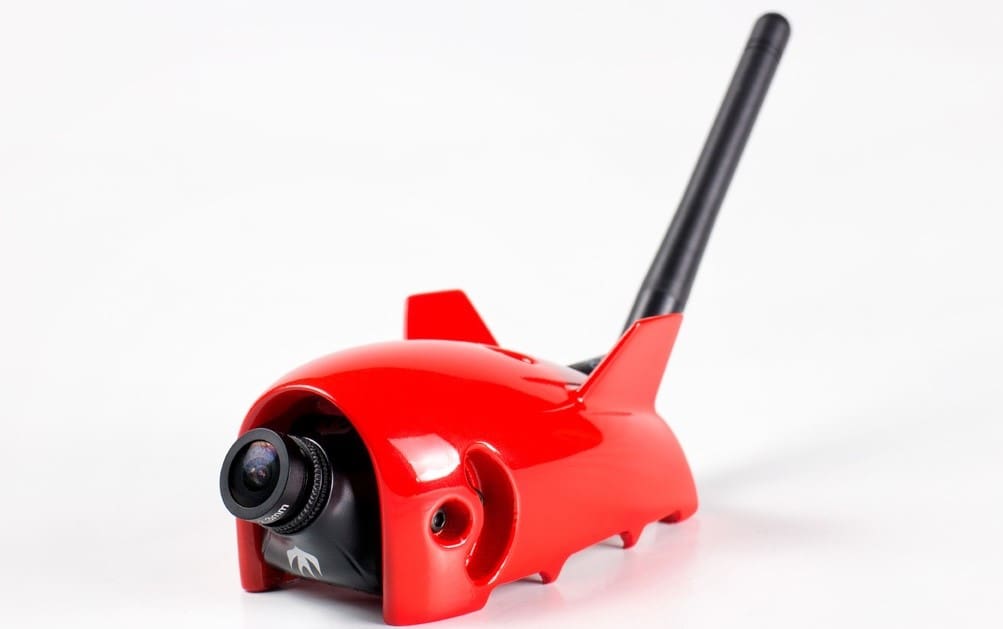

This 3D printing post-processing technique can be carried out with simple polishing tools, available at any local hardware store. Enthusiasts can buy polishing toolkits like the Dremel tools for getting a much-enhanced result.
Polishing should be carried out only after proper sanding. Polishing will enchance the effect of sanding, providing a much smoother finish.
Pros & Cons of Polishing

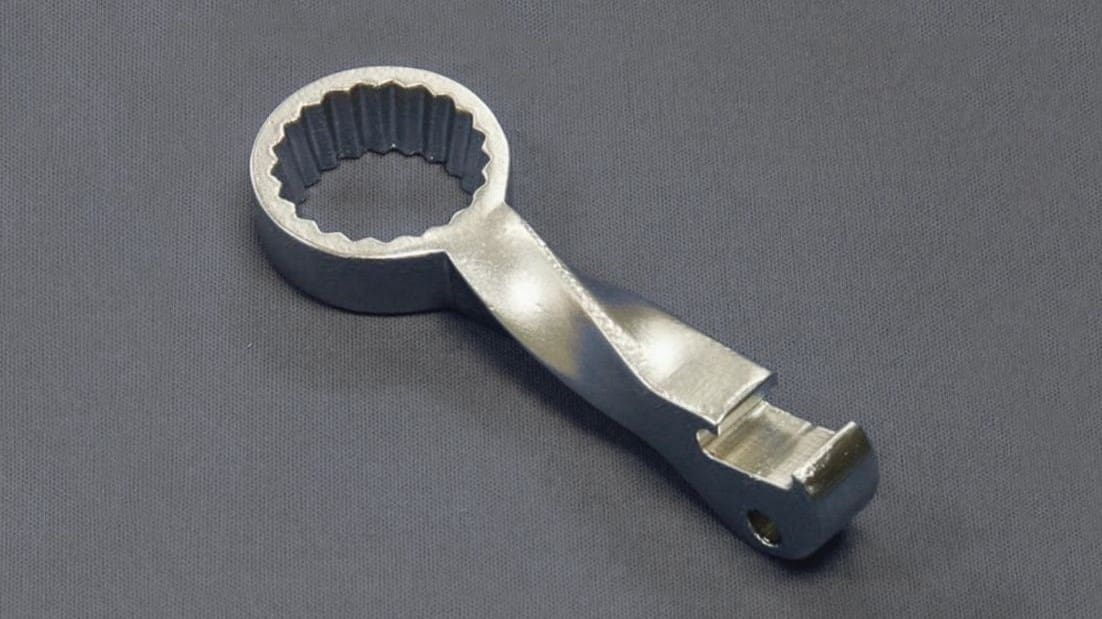

Electroplating is a great 3D printing post-processing option. It not only augments the look and feel of a part but also increases its strength.
On the other hand, only a few materials like ABS can be electroplated. Commonly used metals for electroplating are gold, silver, nickel, chrome, and copper.
Pros & Cons of Electroplating

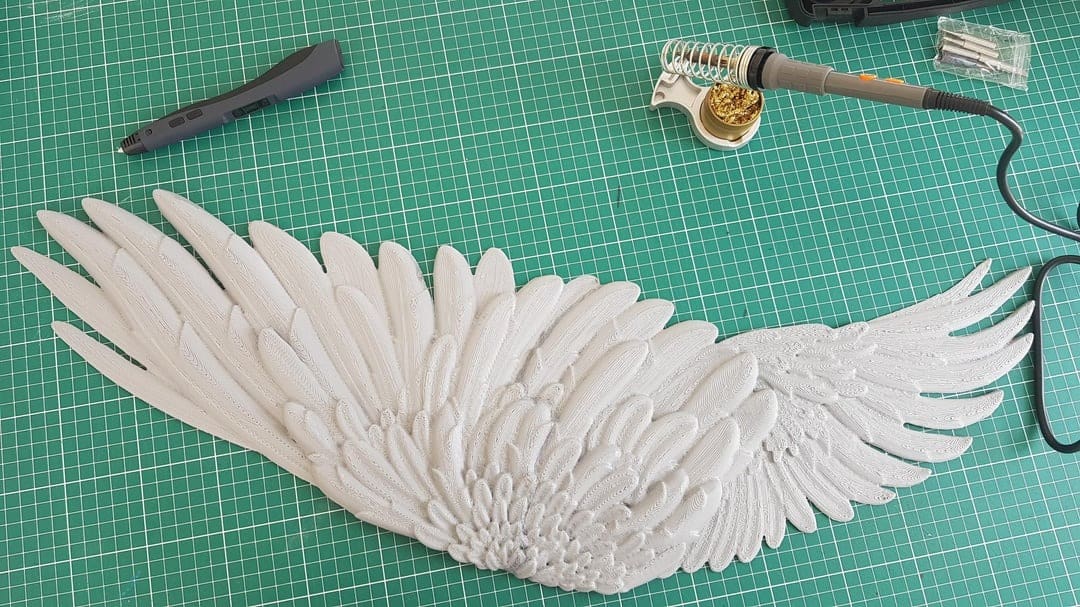

Multiple parts can be glued together to form a single part. This is mostly used in the case of large parts that cannot be 3D printed as a single piece due to dimensional constraints of the printer.
PLA is an example material that can easily be glued together using industrial bonding agents like Anabond.
Pros & Cons of Gluing
In this context, welding doesn’t refer to metal welding but the joining together of ABS parts using acetone. Acetone, as we already know, reacts chemically with ABS, melting it in the process. Using this property, we can apply light layers of acetone on two mating ABS parts, which are then held together to eventually form a bond.
Such welded bonds are fairly strong. The larger the surface area of the bond, the greater the strength of the bond.
Pros & Cons of Welding
We’ve now seen multiple 3D printing post-processing techniques by which we can achieve different results. Remember that post-processing is not only about the aesthetics of the object but also its feel, strength, and other properties. By employing the best-suited process for the specific application, users can reinvent their 3D prints.
