Everyone sees it, but no one likes to talk about it -- the rash on their 3D print, also known as zits or blobs. Here you'll find all the facts: What they are, how to prevent them, and how to get rid of them!

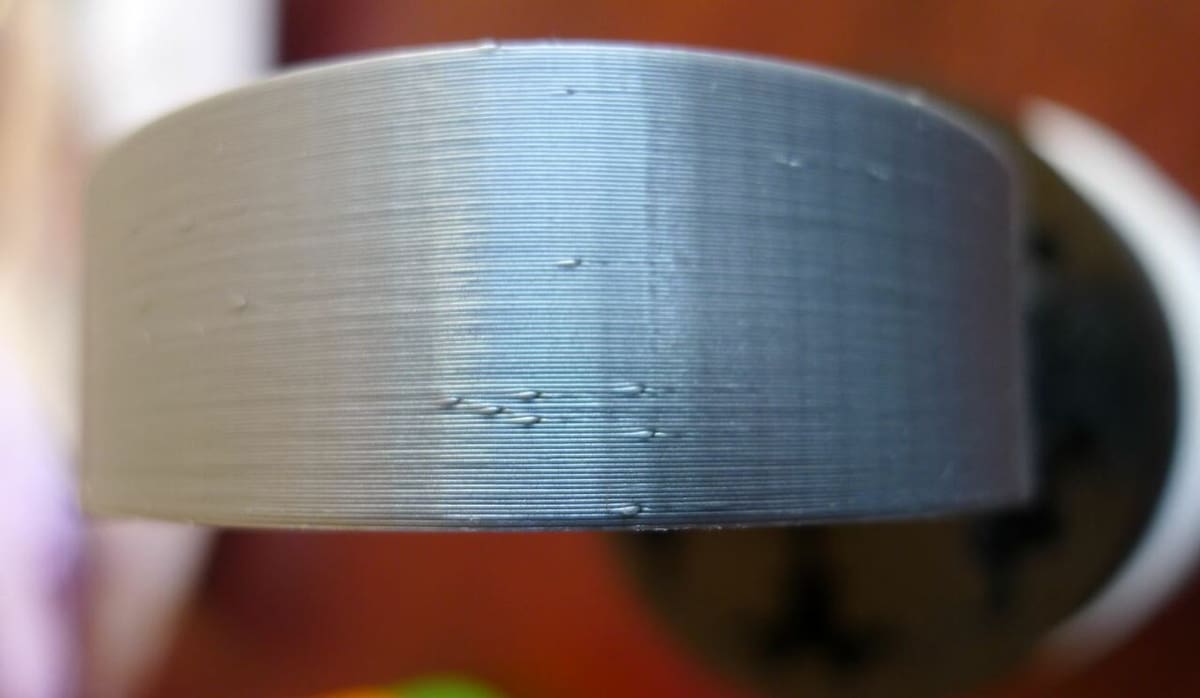

Zits and blobs can be found on many 3D prints and are mostly distributed over the whole object. On closer inspection, we see that one blob belongs to one layer. But what causes it to form in the first place?
A blob is created because the filament is still under pressure in the print head when a layer is finished. This results in a short burst of over extrusion: a blob, also know as Z-scaring or Z-seam.
However, it can also happen, at the beginning of or within a layer, that a blob is placed if the retraction or some other settings are not selected optimally and the nozzle oozes slightly during travel moves.

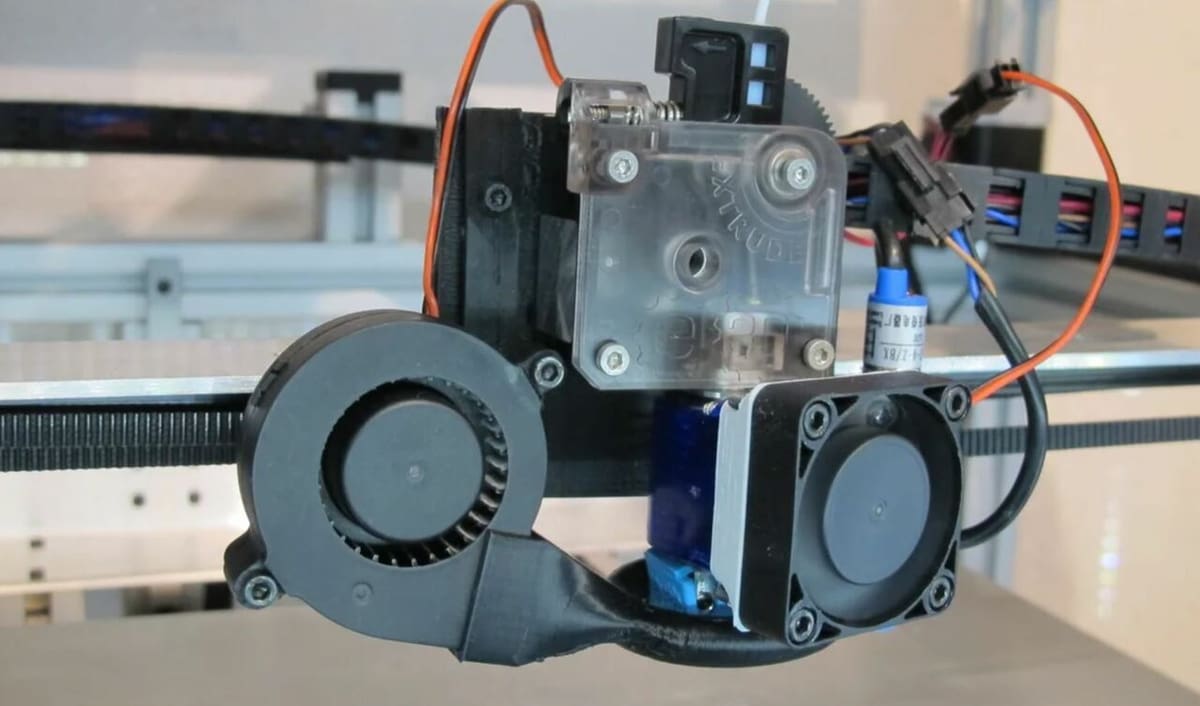

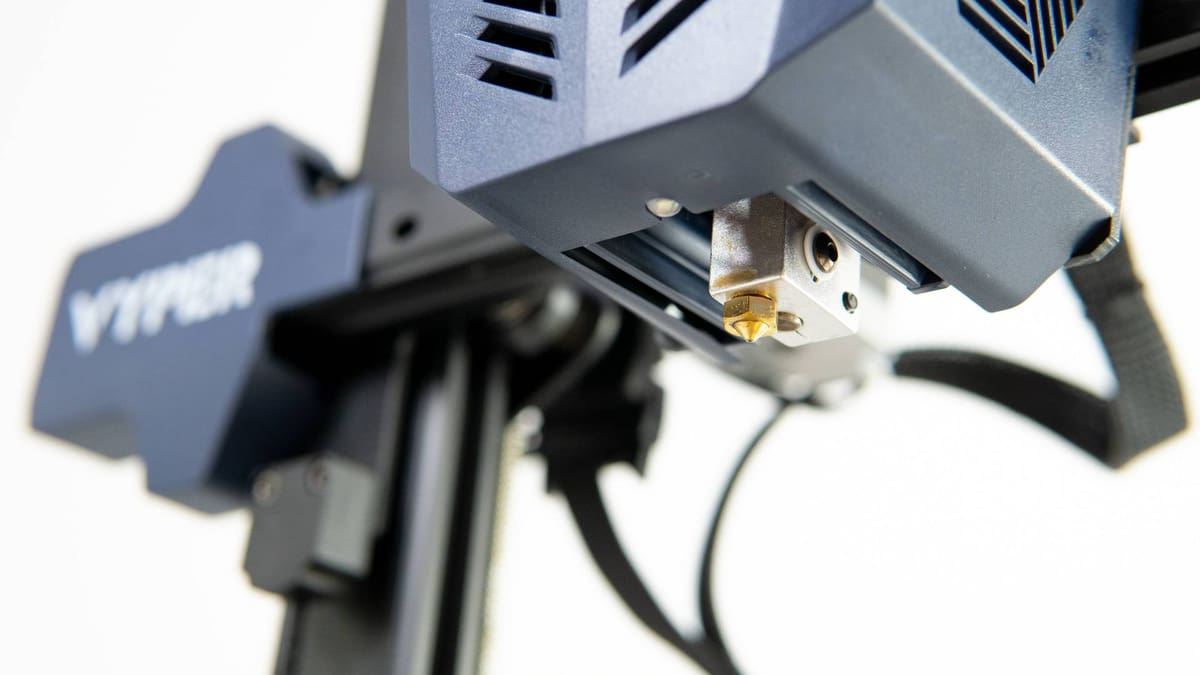

The first rule is to print slowly and as coolly as possible as well as to set all speeds to the same value. For example, many slicers print outer walls at a slower speed than infill. Due to the constant changing of speeds, slight over- and under-extrusions occur again and again, which then become visible as blobs and zits on the object.
Another option is the “coasting” setting in your slicer. This will stop extrusion just before the ends of layers so that the layer is finished with the remaining pressure in the nozzle.
With retraction settings, you can also avoid nozzle oozing. Simply make sure that retraction is enabled in your slicer, adjusting the retraction speed and distance, if necessary. If the filament is pulled back too slowly or not far enough, the material may come out of the nozzle and create a blob.
Blobs at the beginning of a layer are often difficult to control. A workaround would be to manually move the starting point of the layer to a position where it’s no long problematic, like a sharp edge or the back of the object.
If your print comes out in zits, unfortunately, only careful sanding can help. When sanding PLA, be sure to sand wet and slow. Otherwise, the friction heat will cause crumbs on the surface.
Positioning the Z-seam at a certain point helps a lot with manual reworking and saves time.
