Tuning 3D printing speed can be tricky: If it's too slow, prints take forever, but if it's too fast, prints fail. Where is the sweet spot? Let's find out!

3D Printing Speed What's Up With Speed?

A strong, functional part produced with 3D printing.
A strong, functional part produced with 3D printing. Source: Ultimaker / YouTube

3D printing is often affectionately referred to as “rapid prototyping”. The slight irony here is that individual prints can take upwards of hours to complete. Fortunately, printing speed can be adjusted to reduce production time, but poor adjustment may also lead to print imperfections and failures.

Here, we’ll run you through the common 3D printer speed settings. By the end of this guide, you will know how to strike the perfect balance between printing speed and quality. Keep in mind that different printers, slicing software, and filament may behave differently, so repeated testing may be necessary.

Fire up your slicing software and let’s get started!

3D Printing Speed Print Speed

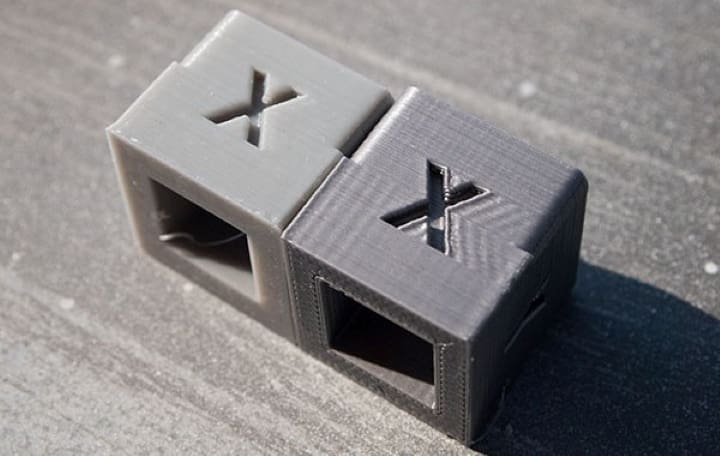

Ringing artifacts (right) caused by high printing speeds.
Ringing artifacts (right) caused by high printing speeds. Source: orcinus / Thingiverse

Test model: Speed Test Tower by wscarlton (not pictured)

Print speed is the main speed setting that will influence your 3D prints. As the name suggests, print speed determines how fast the motors of your printer move. This includes the motors controlling the X and Y axis, as well as the extruder motor(s).

To test for print speed, download the print speed test model above. In the link, you will find instructions on how to create the settings for this print. Essentially, it will print the same shape at gradually increasing speeds, allowing you to visually identify the optimal setting.

Too slow of a print speed may cause print deformation due to the nozzle sitting on the plastic for too long. Too fast and there may be other overheating artifacts caused by insufficient cooling, as well as ringing, under extrusion, and weak layer adhesion. The sweet spot should be as fast as your printer can get without sacrificing too much print quality. Decide how much print quality is appropriate for your use case.

To better refine print speed, this setting is commonly split into many more secondary settings:

  • Outer wall/shell speed: This setting adjusts how fast the outermost perimeter of the model is printed. It is typically decreased slightly to improve surface quality.
  • Inner wall/shell speed: This setting adjusts how fast the inner perimeter(s) of the model is/are printed. It is typically the same as the overall print speed to decrease print times while maintaining print strength.
  • Infill speed: This setting adjusts how fast the infill of the model is printed. It’s typically the same as the overall print speed to decrease print times while maintaining print strength.
  • Top/bottom speed: This setting adjusts how fast the tops and bottoms of the model are printed. It’s typically decreased slightly to improve surface quality.
Advertisement

3D Printing Speed Travel Speed

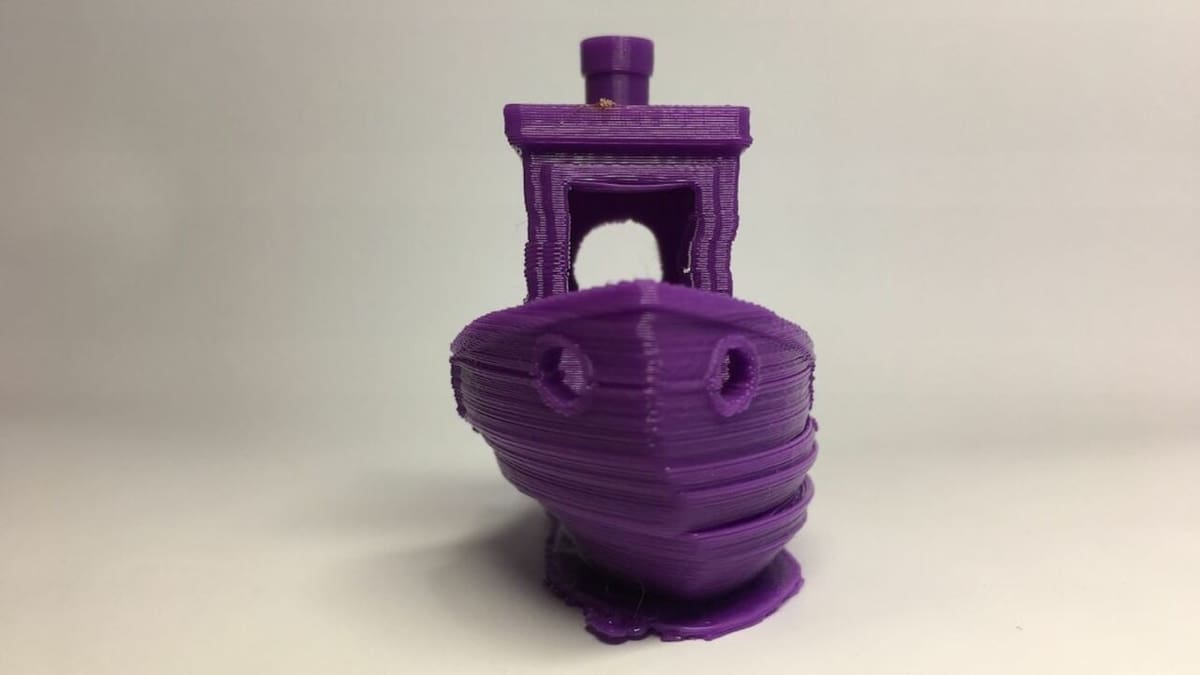

Excessive travel speeds may cause layer shifts.
Excessive travel speeds may cause layer shifts. Source: All3DP

Test Model: Fine Postive Features test by Make: (not pictured)

Travel speed adjusts how fast the printer’s print head moves when it’s not extruding plastic. Increasing travel speed can save significant amounts of print time, but increasing it too much may lead to ringing/ghosting artifacts or even misaligned layers (and thus print failure).

To determine the optimal travel speed for your printer, print out the test print (above) at various travel speeds, starting at 100 mm/s and adjusting by 5 mm/s increments. Keep bumping up the speed if the surface quality is acceptable, and decrease if print quality suffers. Look out for defects like misaligned layers (above).

Advertisement

3D Printing Speed Retraction Speed

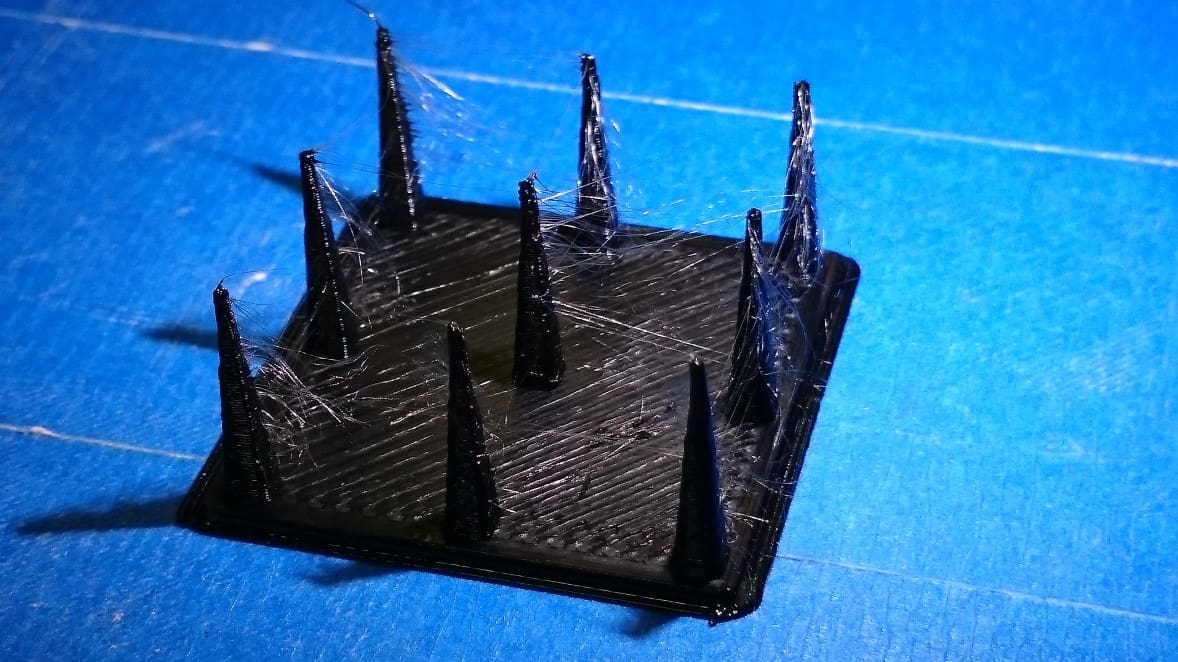

Stringing on the make: Fine features test.
Stringing on the make: Fine features test. Source: Ultimaker

Test Model: Fine Postive Features test by Make:

Retraction speed adjusts how fast the printer pulls filament back (a retraction) before travel moves. This setting is critical for reducing stringing and improving print quality. Too slow, and you may be left with unsightly strings and blobs on your prints. Too fast, and you may experience the symptoms of filament grinding, which also include stringing and blobbing.

To determine the optimal retraction speed for your printer, print out the retraction speed test (above) at various retraction speeds, starting at 25 mm/s and adjusting by 5 mm/s increments. Look out for web-or-tree-like strings stretching between the spikes on the model. The perfect retraction speed should be the highest value that minimizes these artifacts without jeopardizing filament flow.

To better refine retraction speed, this setting is commonly split into two more secondary settings:

  • Retraction Retract Speed: This setting adjusts how fast the retract (the actual pulling back of the filament) occurs. This is usually the same as your overall retraction speed, and tuning it follows the same process.
  • Retraction Prime Speed: This setting adjusts how fast the filament is reinserted after the initial retract, in preparation for further printing. Increasing this speed will result in reduced print times and less blobbing due to extended exposure of the plastic to heat. Increasing it too much, however, may also result in insufficient heating of the freshly-reinserted filament before printing resumes. For most users, keeping this the same as the general retraction speed setting should work well.

For more on reducing stringing, check out our dedicated guide to retraction speed.

Advertisement

3D Printing Speed Shell, Infill, and Layer Height

The first layer of a 3D print.
The first layer of a 3D print. Source: Thomas Sanladerer / YouTube

Test Model: N/A

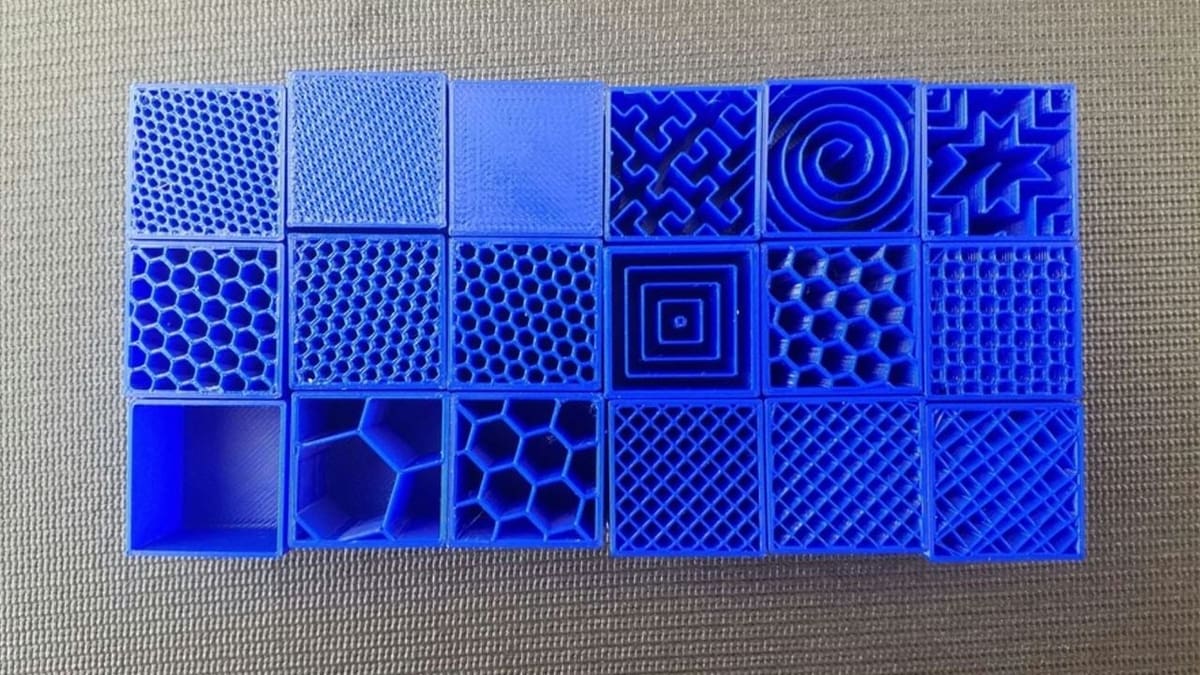

Your 3D printer’s speed isn’t affected only by “speed” specifically. It is also significantly affected by how much plastic, and in what thickness, each layer of the 3D print is extruded. These settings are incredibly detailed, so we will only go through general information about how each affects print speed. For more, we have specific guides to 3D printing shells, infill, and layer height.

Advertisement

3D Printing Speed Happy Printing!

Properly-tuned speeds yield clean prints.
Properly-tuned speeds yield clean prints. Source: Ultimaker / YouTube

And there you have it: Our guide on nailing 3D printing speeds! Hopefully, this was helpful for perfecting your 3D prints.

For more on retractions specifically, check out our dedicated guides to retraction speed and stringing. For general troubleshooting, feel free to refer to our 2019 troubleshooting guide.

Feature image source: ExplainingComputers / YouTube
