3D Printer Bed Adhesion: How to Make Prints Stick

Picture of Hironori Kondo
by Hironori Kondo
Jan 13, 2020
Advertisement
Advertisement
Advertisement

3D printer bed adhesion is critical to printing success, but it can be tricky. Follow along to learn the secrets to consistent, successful adhesion.

3D Printer Bed Adhesion

Keeping Your Prints Down

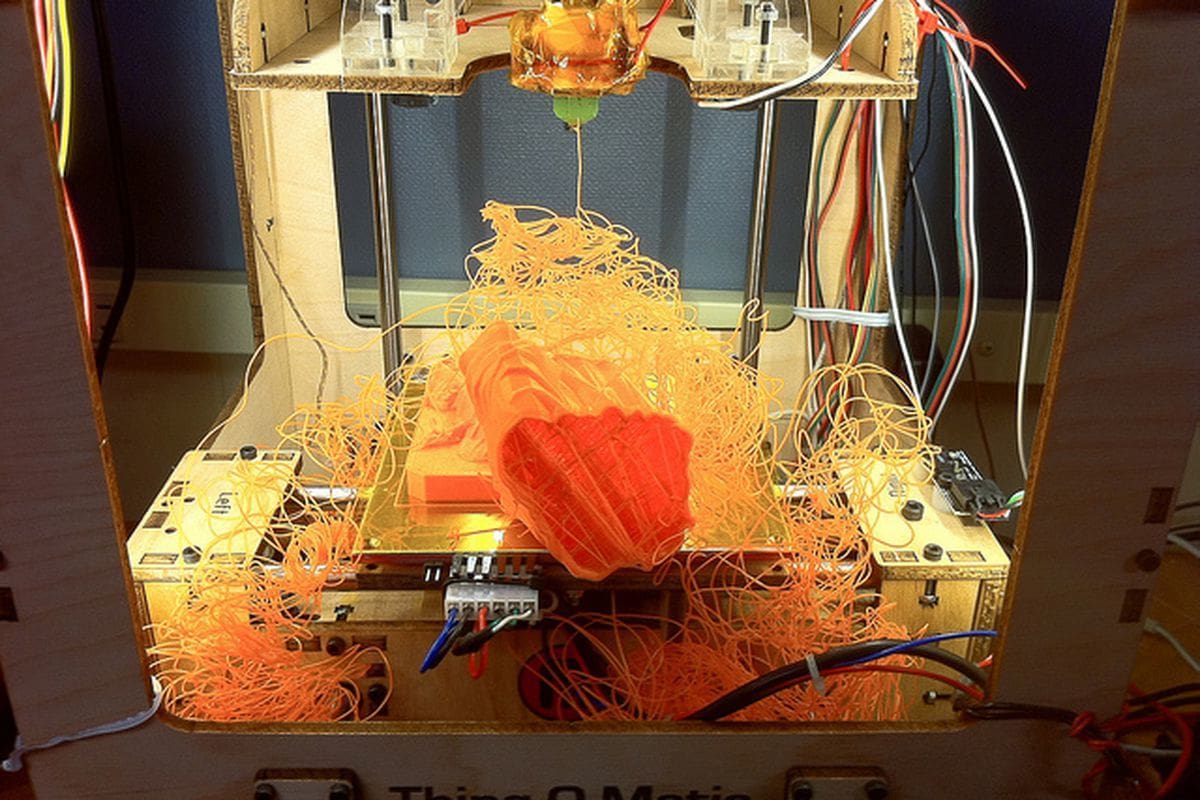

A dislodged and failed 3D print
A dislodged and failed 3D print (Source: The Verge)

Proper bed adhesion is critical to every FDM 3D print. Without adhesion, prints dislodge before being fully formed, leaving a bird’s nest of mis-extruded plastic (depicted above). Such failures can be incredibly frustrating, consuming both time and material.

As such, you’ll want to do the best you can to achieve proper bed adhesion. To get you started, we’ll run through some popular tips and tricks for keeping your prints stuck down.

Let’s get started!

Back to Contents

Advertisement
3D Printer Bed Adhesion

Tip #1: Get the First Layer Right

3D printer extruding the first layer onto a print bed.
3D printer extruding the first layer onto a print bed. (Source: Thomas Sanladerer / YouTube)

With FDM printing, plastic is extruded layer by layer. Everything is built off of the first layer, so naturally, it has to be firmly adhered to the bed. This is such a critical step that we have an entire guide dedicated to getting it right, so here we’ll just gloss over some key points.

Leveling the Bed

Make sure that your printer’s bed is level. This provides a perfect surface for the first layer to grab onto. If you’re not sure how to level your bed, we have a handy guide.

First Layer Print Settings

Your 3D printer slicer has many print settings dedicated to the first layer, including bed temperature and printable adhesion aids (i.e. rafts, skirts, and brims). Tuning these settings will optimize first layer performance by ensuring that the first layer is firmly squished down to the bed (excessive squishing is often referred to as “elephant’s foot“). We go through these in more detail with our first layer guide.

Increasing Surface Area

Orient or design your part such that there is as much contiguous surface area on its bottom surface as possible. Having little surface area or isolated “islands” on your first layer

Cleaning the Bed

Oil, dust, and other grime can interfere with your prints grabbing onto the print bed. Before every print, make sure that your print surface is clean. If it’s not, a wipe-down with some isopropyl alcohol usually does the trick.

Using Adhesive Aids

Adhesive aids exist for holding down 3D prints. These include PVA glue (regular household glue stick), Kapton tape, and blue printer’s tape. Commercial solutions such as Magigoo also exist. Your mileage with these may vary between materials, so consult your filament manufacturer for their recommended adhesive aids.

With the tapes, cover the build plate with a single, flat layer and replace it as it wears. With wipe-on adhesives, apply a thin coat before each print. Just remember to routinely clean your print bed!

Back to Contents

Advertisement
3D Printer Bed Adhesion

Tip #2: Prevent Print Head Collisions

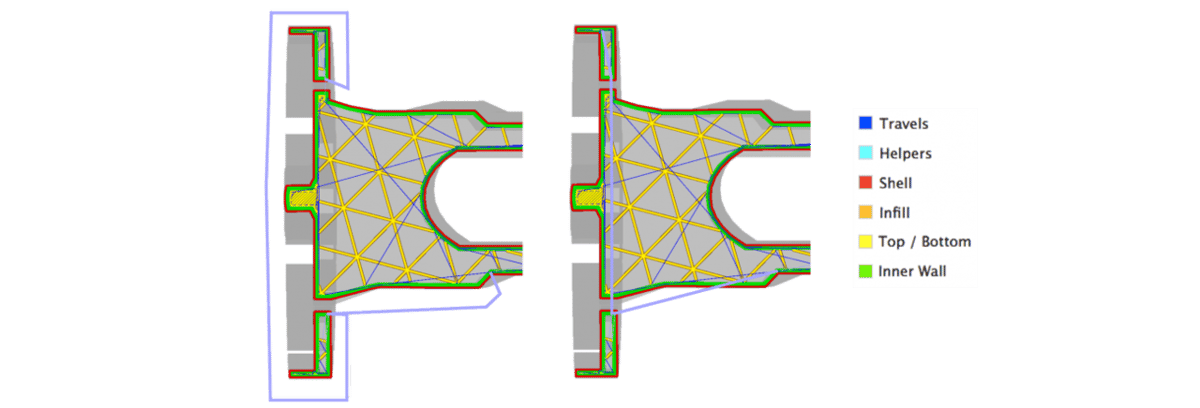

The
The "Avoid Printed Parts" setting in Cura alters travel moves (dark blue) to stay outside of printed areas (left). (Source: Ultimaker)

Even if your first layer sticks well, there’s still a chance that your print might dislodge. This commonly happens if the print head collides with a part of the print. You may see this happening if your printer is especially prone to blobbing, which produces surface irregularities that may cause issues.

To mitigate the odds of print head collisions, make sure you tune the following slicer settings:

Retraction Settings

Retraction is when the filament is pulled back to prevent undesired oozing of the plastic. Improper retraction settings can result in mis-extruded plastic, which in turn can catch on the print head as it moves, dislodging the print. Nailing retraction is an art in and of itself, so we have a dedicated guide for it.

Z Hop

Z hop is a special setting that lifts the print head (or lowers the build plate) before travel moves. This helps the print head clear printed parts, reducing the chances of anything catching.

Avoiding Printed Parts

Many slicers have a dedicated setting that adjusts all travel moves to avoid printed parts (above). This setting will increase print times, as the print head will no longer be able to take the most direct travel moves, but it will also help avoid mishaps.

Back to Contents

Advertisement
3D Printer Bed Adhesion

Tip #3: Keep a Stable Ambient Temperature

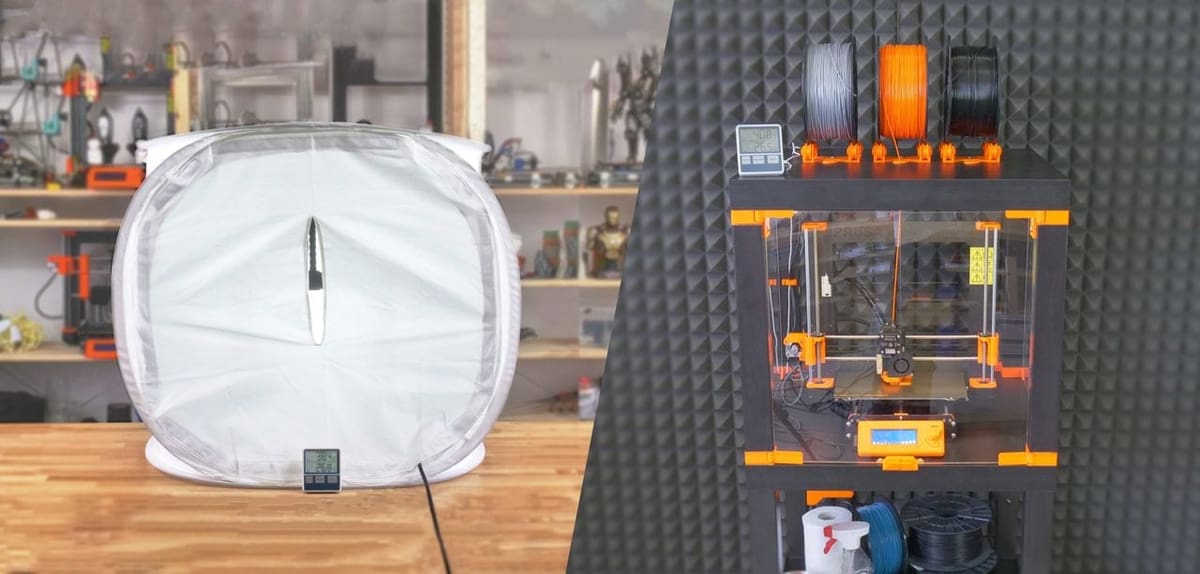

Two examples of 3D printer enclosures
Two examples of 3D printer enclosures (Source: Prusa Research)

This tip especially applies to printing high-temperature materials, which can be sensitive to temperature fluctuations. Even if your first layer goes well, temperature changes at a later point during printing can cause changes in thermal expansion. Printed plastic doesn’t contract or expand like most build plates, so these temperature changes can cause prints to pop off the print bed.

To avoid temperature fluctuations, we recommend enclosing your 3D printer. This will help keep a stable internal printing temperature as well as shield against unexpected gusts of cold air.

If an enclosure doesn’t seem feasible or appropriate, simply moving your 3D printer to a gust-free area will help.

Back to Contents

Advertisement
3D Printer Bed Adhesion

There You Go!

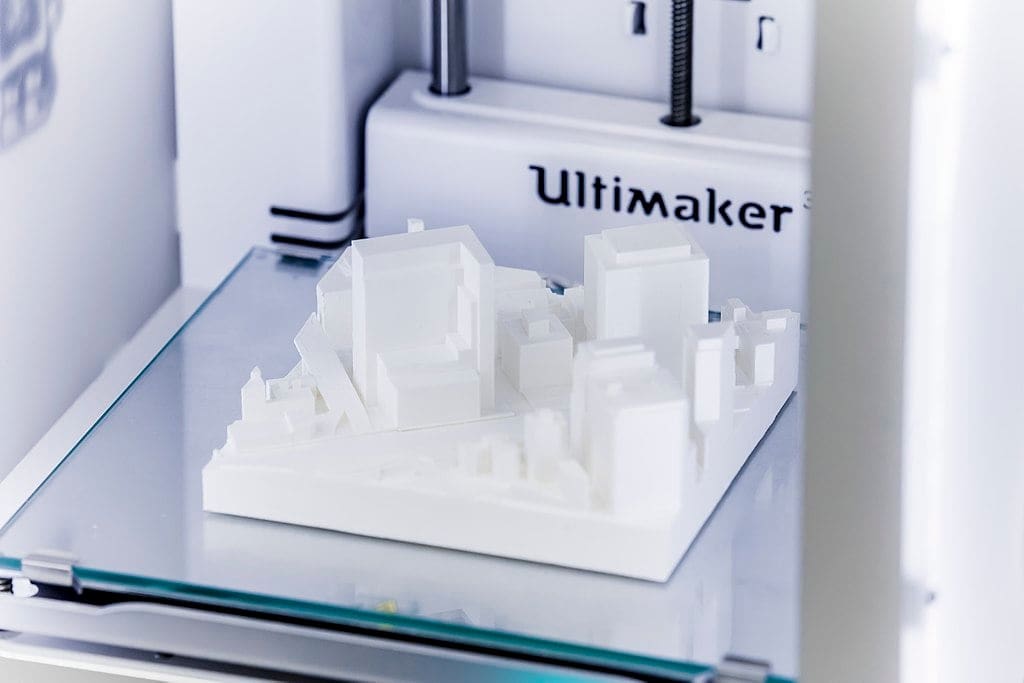

A successful and well-adhered 3D print.
A successful and well-adhered 3D print. (Source: Wikimedia Commons)

And with that, you have our top tips for improving 3D print adhesion! With these tricks up your sleeve, you’ll be able to print confidently, knowing that your parts aren’t going anywhere.

If you’re looking for other troubleshooting tips, we have a handy troubleshooting guide. Otherwise, now that you’re printing successfully, you can start working on improving your print quality!

Happy printing!

(Lead image source: Ultimaker)
