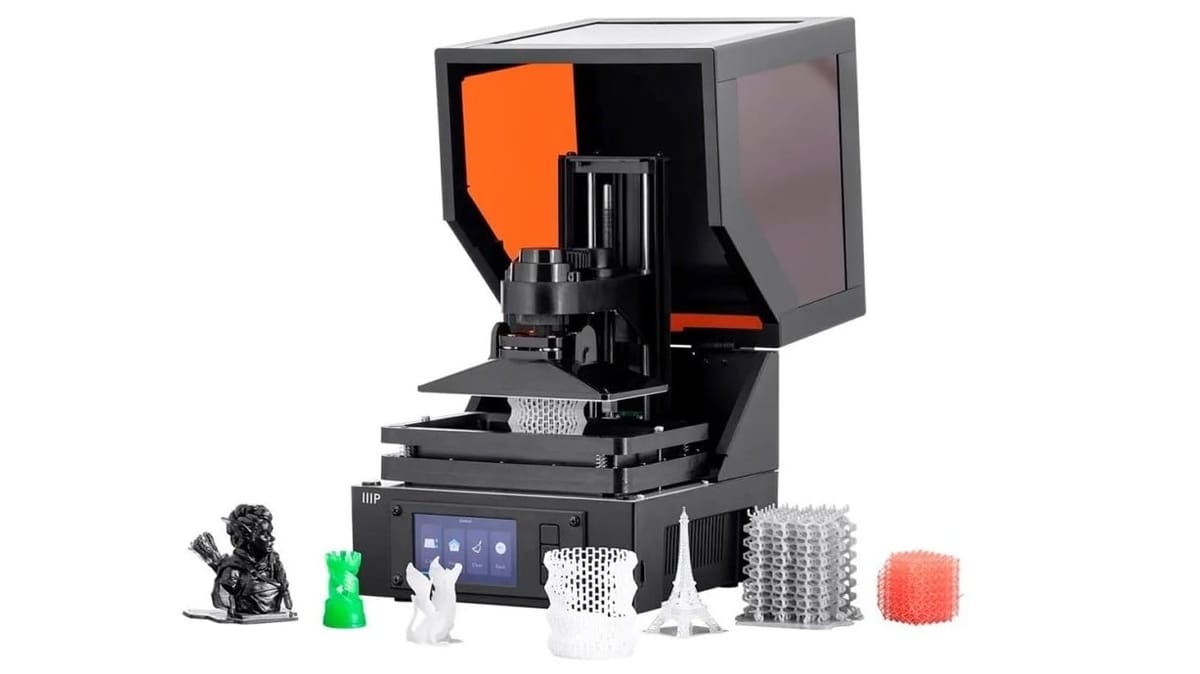

Featured image of 2019 Monoprice MP Mini SLA LCD 3D Printer – Review the Specs
Resin Rig for Tinkerers

2019 Monoprice MP Mini SLA LCD 3D Printer – Review the Specs

Picture of Mika Yeap
by Mika Yeap
Aug 14, 2019
Advertisement
Advertisement
Advertisement

The Monoprice MP Mini SLA LCD is a high-resolution 3D printer that provides compelling value for your money. Read on as we review its specs.

Monoprice has quite the track record in the 3D printing community. Its well-loved Select Mini was a big deal for a while in the FDM world, and now this MP Mini SLA LCD resin printer (not to be confused with the Monoprice Mini resin printer) aims to make a splash in the resin world.

It wasn’t too long ago that the only worthwhile resin printer a consumer could acquire was made by Formlabs. These machines were tried and true but would leave you with a hole in your wallet that looked like $3,000 had just gone missing. After a while, resin printers became more affordable and common — and this machine is a prime specimen in this age of affordable resin hardware that combines functionality and affordability.

Packing a 2K LCD screen, wireless connectivity, and automatic platform leveling in a sub-$300 package, the MP Mini appears to continue the legacy of Monoprice’s game-changing FDM offering on the surface. But do the specs hold up under close examination? Let’s review them to find out.

Monoprice MP Mini SLA

Product image of Monoprice MP Mini SLA Resin 3D Printer
Advertisement

Monoprice MP Mini SLA LCD 3D Printer – Review the Specs Features

Image of Monoprice MP Mini SLA LCD 3D Printer – Review the Specs: Features

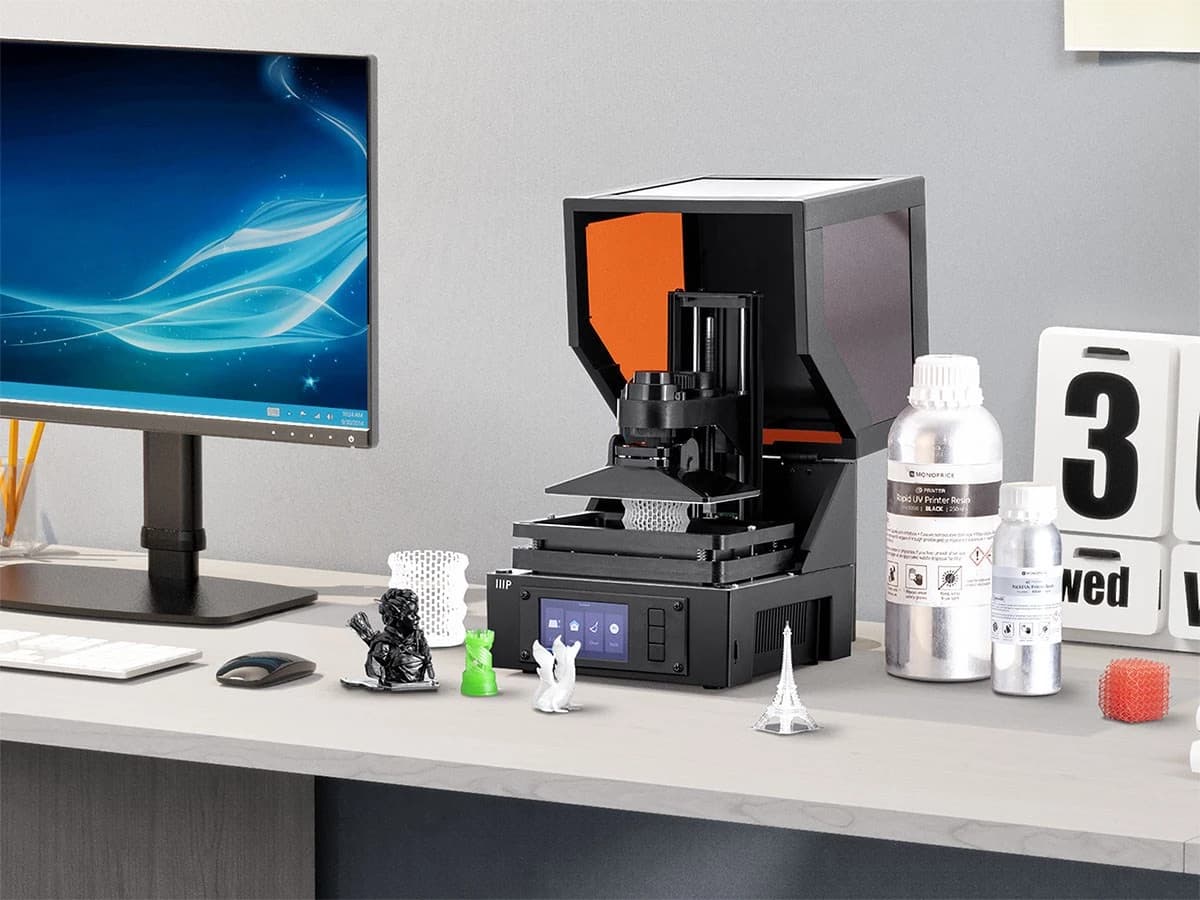

This resin printer fits nicely on a desktop. (Source: Monoprice)

2K LCD Screen

The LCD curing screen has a relatively sharp resolution considering it just covers a 118 x 65 mm print area, which means print resolution on this machine should be standard for this price point. Its maximum resolution of 0.05 mm is more than enough for most hobbyists and is a good deal at this price point.

Note that this machine uses an LCD array, not a laser and mirrors, to cure the resin and build it into a part. This means that, depending on the model, cure times can be different compared to an SLA machine printing the same model.

Auto-leveling, Removable Platform

This machine continues to impress with a rare feature for this price range: An auto-leveling build platform. At the start of every print, the platform is loosened then lowered slowly against the base of the curing vat to ensure it’s parallel, then the platform orientation is fixed in place to maintain the perfect alignment.

This feature will certainly save beginners some hassle, especially since the bed leveling process requires finesse and a certain level of experience with resin printing. This way, it’s that much easier to just get printing. We’re surprised this is included for its price, but we certainly appreciate it (and hope it works).

Open Software Compatibility

In addition to a proprietary “Web UI”, the MP Mini is also compatible with Creation Workshop and Print Studio, which means you’re not as limited in terms of software compared to other machines in this price range. Otherwise, slicing and model preparation is fairly standard for this machine — cure times are standard, as long as you don’t use the wrong type of resin, and print speed is average, too.

On-board Profile Management

The MP Mini has a hidden trick once you start printing: It allows you to store multiple profiles on the machine itself to quickly change cure times, lift height, and other printing parameters. This is useful when testing out resins or simply to change the type of print job, because the entire model needn’t be re-sliced on a computer.

Advertisement

Monoprice MP Mini SLA LCD 3D Printer – Review the Specs Technical Specifications

GENERAL

Printing Technology: LCD-based Masked Stereolithography (MSLA)

LCD: 4.6″ x 2.6″ LCD matrix

Build Volume: 118 x 65 x 110 mm

Z-Layer Resolution: 50 microns

XY Resolution: 50 microns

UI: Color LCD screen

Connectivity: WiFi, micro USB

Build Platform Leveling: Auto-leveling

Materials: Resins suitable for 405 nm LCD-based printers

SOFTWARE

Software bundle: Creation Workshop, Print Studio, Web UI

File types: STL or OBJ (desktop)

WEIGHT AND DIMENSIONS

Weight: 3 kg

Dimensions: 260 x 260 x 385 mm

Advertisement

Monoprice MP Mini SLA LCD 3D Printer – Review the Specs Where to Buy

The Monoprice MP Mini is available from the following online retailers:

Monoprice MP Mini SLA

Product image of Monoprice MP Mini SLA Resin 3D Printer
