Meet the Powerbelt Zero, a $399 Belt 3D Printer

Picture of All3DP
by All3DP
Oct 8, 2019

Belt 3D printers a rare and usually expensive. With the Powerbelt3D Zero, a New York-based startup wants to bring down the costs to just $399.

Powerbelt3D, a 3D printing startup company based in Syracuse, NY, is introducing a belt 3D printer starting at $399.

What so special about belt 3D printers? Standard FFF printers use a cartesian coordinate system to position the print head within a fixed volume in the shape of a cube. The drawback of this proven design is that you can’t print “outside of the box”. Therefore, you’ll have to live with a fixed build volume. And if you want to print multiple objects, you’ll have to pluck them from the build plate before you can print again.

Belt printers, on the other hand, tip the X and Y axis by 45 degrees and add a conveyor belt to the Z-axis. Whatever is printed will be conveyed out of the cubic dimensions by the belt… so theoretically, you can print extremely long objects or even start mass-producing objects.

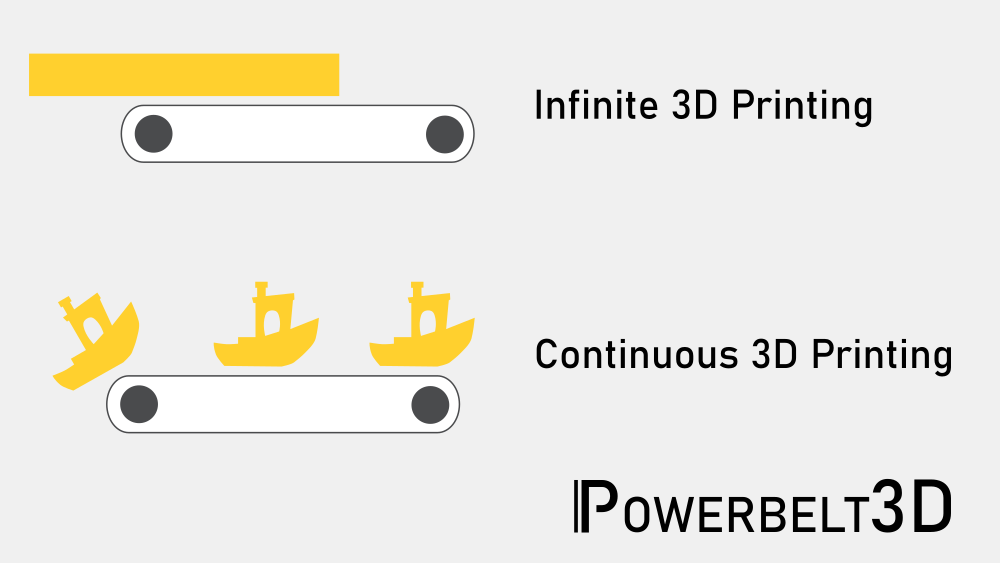

Belt printers were made with mass production in mind (Image: Powerbelt3D)

In the world of 3D printing, belt printers are a rarity. The most popular one is made by Blackbelt3D, but this semi-professional machine starts at $11,000. Then, there’s the White Knight, an open-source project you’ll find at Thingiverse, but you’ll have to build everything from scratch. There’s not much in between… yet.

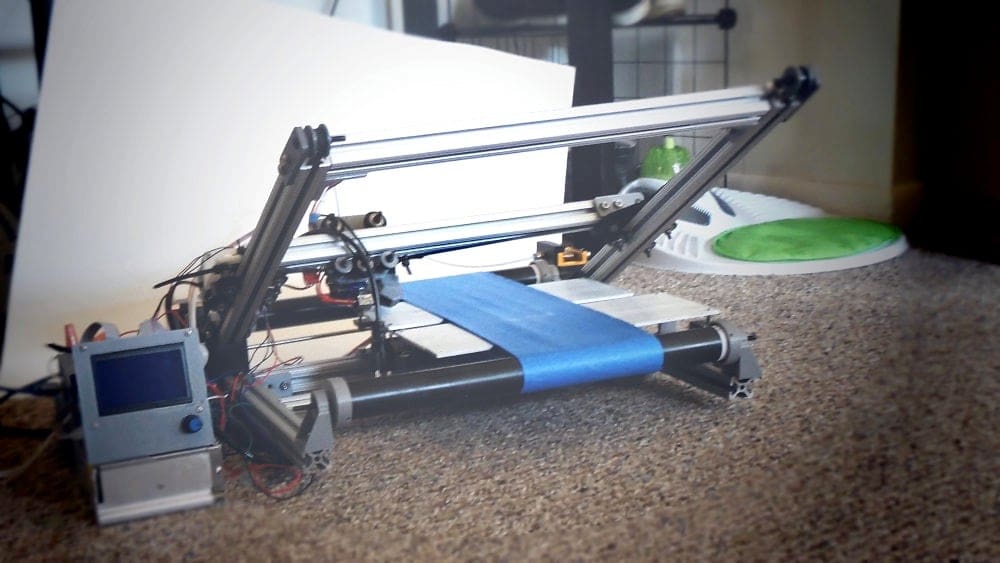

The new Powerbelt3D Zero is clearly made with makers in mind, starting with the price. In order to promote the printer, the company plans to offer 50 units for $399, before they raise the price gradually to $499. The manufacturer provides these specifications:

  • Build volume (mm): 200 x 170 x infinity
  • Printing type: Core-XY
  • Extruder: Direct Drive with an all-metal hot end
  • Control Board: MKS Base V1.4
  • Motor Drivers: DRV8825
  • Steel-reinforced GT2 Belts

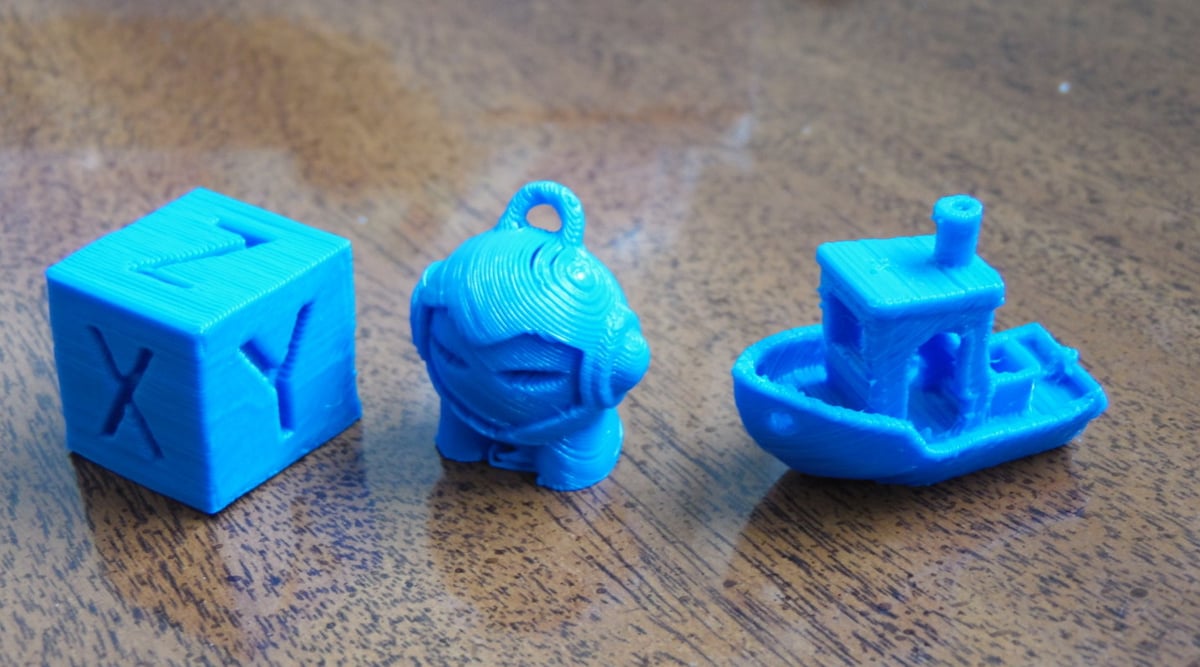

You can clearly see the layer lines are shifted on the direction of the hot-end (Image: Powerbelt3D)
You can clearly see the layer lines are shifted in the direction of the hot-end (Image: Powerbelt3D)

A Machine Made for Makers

The machine comes as a kit, is made from standard components and will be delivered with detailed build instructions. Fasnacht continues: “We have spent over a year designing, testing, and improving the Powerbelt3D Zero. The result is a conveyor belt 3D printer kit that is fun to build, hack-able, and upgrade-able. We hope we can inspire tinkerers and 3D printing lovers everywhere with the unique capabilities that a conveyor belt 3D printer can offer.

The images of test prints (see above) clearly show a print quality that is not up to par with other FFF printers in this price range. Yet, as the machine is open source, it should be perfectly hackable and improvable. Should you be looking to buy it, though, know that you might have to wait until mid-2020 before you can lay your hands on it.

If you are an experienced maker and want to get your feet wet in belt 3D printing, you might want to take a peek at the machine at the company‘s website.

(Source: Press Release)
