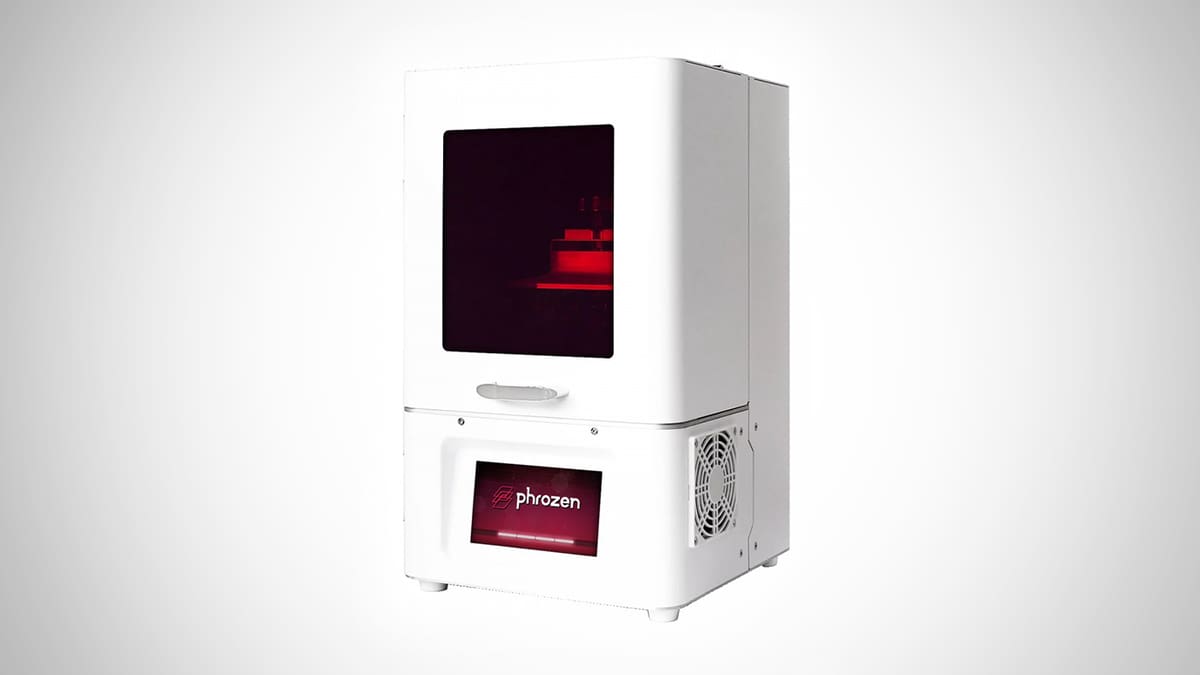

Featured image of 2019 Phrozen Sonic 3D Printer: Review the Specs
All3DP is an editorially independent publication. All product reviews and recommendations are the unbiased opinion of our editorial team, and can not be bought or influenced. To keep All3DP free and open, we finance ourselves through advertising and affiliate revenues. When you purchase using a shopping link on our site we earn an affiliate commission. Learn more.
Gotta Go Fast

2019 Phrozen Sonic 3D Printer: Review the Specs

Picture of Matthew Mensley
by Matthew Mensley
Oct 22, 2019
Advertisement
Advertisement
Advertisement

Taiwanese 3D printer manufacturer Phrozen has announced a new professionally-oriented resin printer that potentially offers wicked speed. Join us as we review the specifications.

It’s only been a matter of weeks since we last wrote about an interesting new take on the LCD 3D printer from Taiwanese manufacturer Phrozen. That was the Shuffle 4K, offering a bump in printing quality. This is the Phrozen Sonic.

A new machine that keeps the form factor of its Shuffle printers, and swaps out the LCD tech inside for something altogether different, the Phrozen Sonic promises blisteringly fast layer cure times – as little as half a second, given certain conditions.

Pitched at professional applications in jewelry and dental, it’s certainly and an intriguing looking desktop printer that approaches LCD-based resin printing differently enough to achieve what appears to be a step-change in desktop LCD printing performance.

Read on as we take a look at all the known information about the Phrozen Sonic, and review the specifications.

Advertisement

Phrozen Sonic: Review the Specs Features

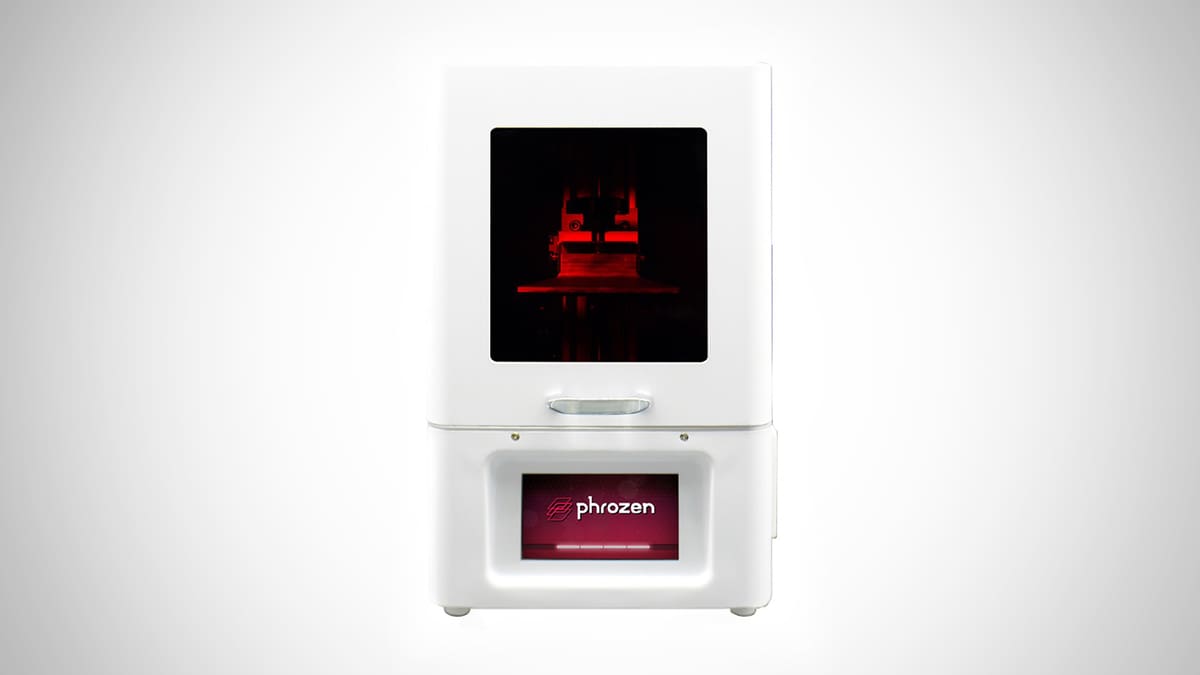

Image of Phrozen Sonic: Review the Specs: Features

Another day, another LCD-based resin 3D printer, right? Wrong? The Phrozen Sonic – on paper at least – appears to be doing something quite different in order to achieve the claimed half-second layer cure times.

Monochrome LCD

To begin, the Sonic features what Phrozen refers to as a mono-LCD – an alternative form of LCD masking screen that is purported to be more transparent than the LCDs currently commonly used in similar printers. This transparency – allowing more UV light to pass through it – in combination with the latest iteration of Phrozen’s powerful ParaLED UV light engine contribute to what appear to be unbelievably quick layer cure times.

It is claimed that this new panel is harder wearing and longer-lasting than conventional panels, citing a lifetime of 2,000 hours. If so, that would have it lasting some four times longer than competing printers’ LCDs. There’s no word yet on the expense of replacing a mono-LCD, though, so we’ll reserve judgment on whether this is as spectacular as sounds on face value.

Quality

In aiming for speed with the mono LCD, Phrozen appears to be sacrificing a small degree of detail, with the Phrozen Sonic featuring an XY resolution of 62-microns – down from the 47-microns found on the original Phrozen Shuffle.

For some professions and use cases, we expect that to be small change for what could a wickedly fast printer.

Speed

The documentation swirling around the printer’s announcement suggests a layer cure time as fast as 0.5 seconds per layer (0.05 mm layer height), which would be magnitudes quicker than the masking LCD printers commonly available today.

Printing at a particular resolution, the company claims a print speed of 60 mm per hour.

The following YouTube video doesn’t show all that much since you don’t a view on the height of the print, but it does give a slight impression of the possible print speed achievable with the Sonic.

Build Volume

As stated above, the Phrozen Sonic appears to be built on the foundation of the Phrozen Shuffle, meaning a linear rail-guided Z-axis arm, probably (but not confirmed) running up and down a heavy-duty ball screw.

Attached to the said arm is a print plate measuring out at 120 x 68 mm, with 170 mm of printable space available through the Z-axis.

Operation

The Phrozen Sonic will be running on Phrozen’s Phrozen OS which, last we saw, was based on NanoDLP. Model preparation comes courtesy of the company’s PZSlice Pro software, which we have yet to see in action. Said to be based on premium slicer Formware (in an official capacity, judging by Formware’s inclusion on Phrozen slides detailing the software side of things), we would expect to see some advanced features beyond the typical support generation and hollowing.

Having used the basic PZSlice with the Phrozen Transform (a review-in-progress, for those that care), things are certainly pointing in the right direction, with preconfigured settings for Phrozen’s and generally slick operation.

Advertisement

Phrozen Sonic: Review the Specs Tech Specs

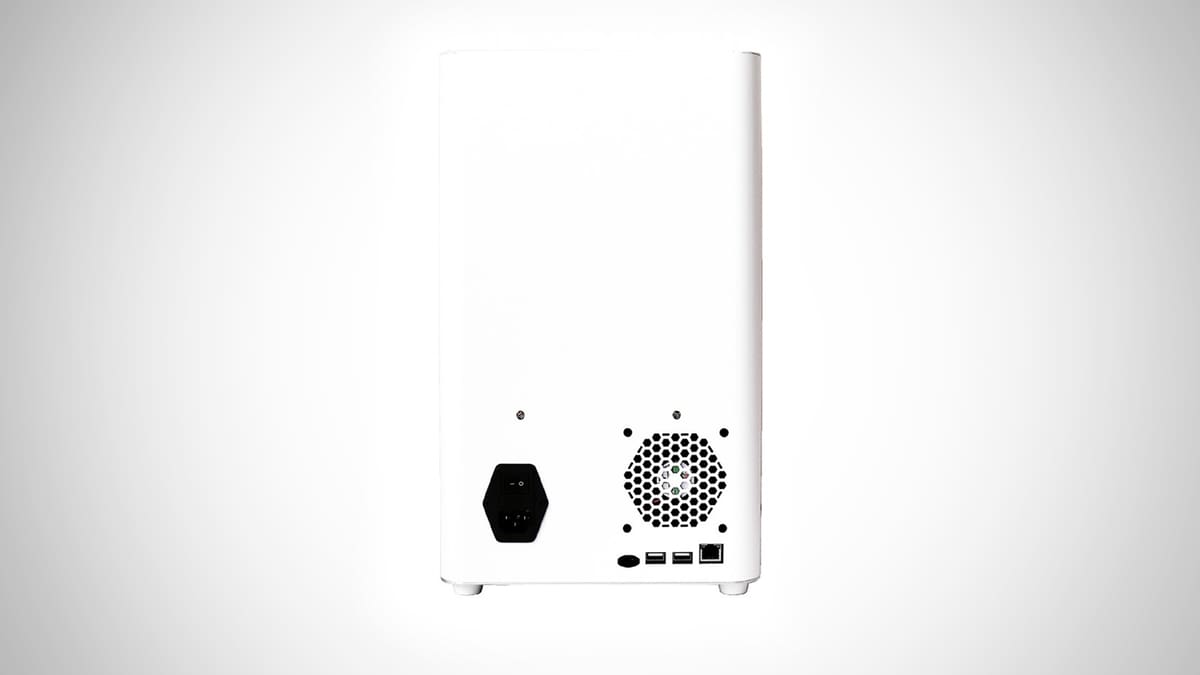

Image of Phrozen Sonic: Review the Specs: Tech Specs

General

Printing Technology: LCD-based Masked Stereolithography (MSLA)
LCD: Custom 5.5-inch mono-LCD, 405nm ParaLED 3.0 Module light engine
Build Volume: 120 x 68 x 170 mm
Z-Layer Resolution: 10-micron
XY Resolution: 62-microns
UI: 5-inch IPS touchscreen display
Connectivity: USB, LAN, WiFi
Build Platform Leveling: Assisted leveling
Materials: Resins suitable for 405nm LCD-based printers

SOFTWARE

Software bundle: Phrozen OS (onboard), PZSlice Pro (desktop)
File types: ZIP (onboard), SLC (onboard), STL (desktop)

WEIGHT AND DIMENSIONS

Weight: 10kg
Dimensions: 280 x 280 x 370 mm

Advertisement

Phrozen Sonic: Review the Specs Where to Buy

According to Phrozen, the Sonic will begin shipping in November 2019. Preorders are open already if you’re particularly sold on the possibilities the printer offers. Hit the links below for more.

(Image source: FEPShop)
