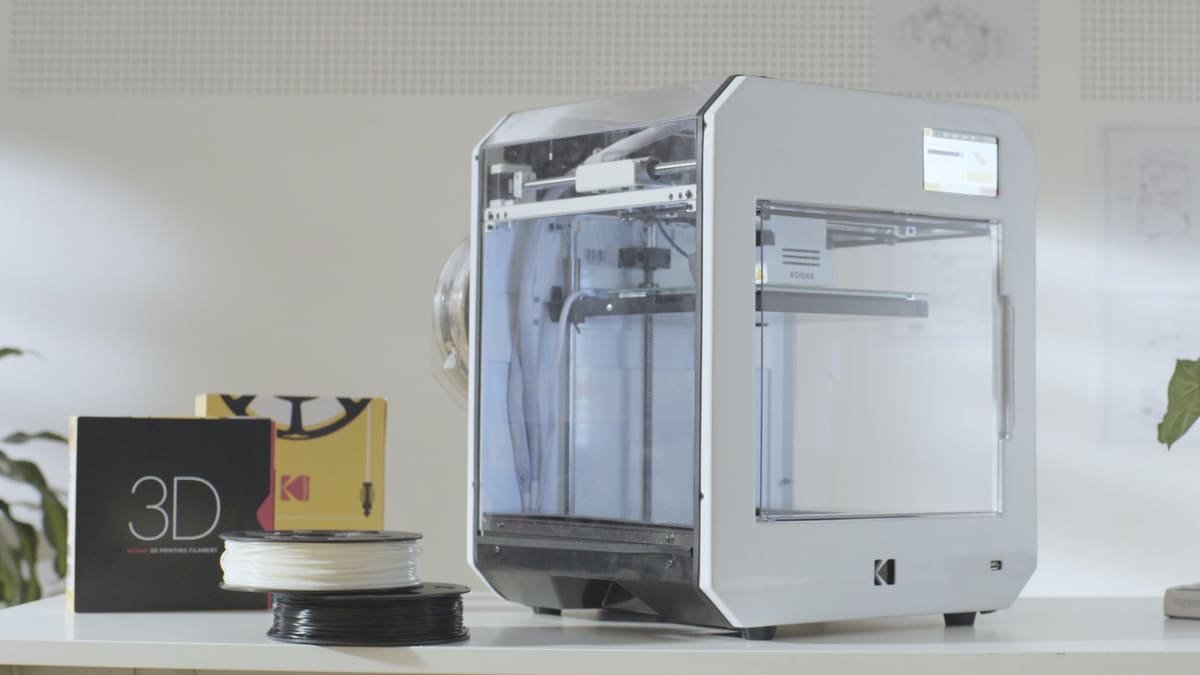

Featured image of Kodak Portrait – Review the Specs of this 3D Printer
Say Cheese!

Kodak Portrait – Review the Specs of this 3D Printer

Picture of Matthew Mensley
by Matthew Mensley
Nov 26, 2018

Kodak Portrait – Review the Specs of this 3D Printer

A market debut for the company appealing to "Creative Professionals," the Kodak Portrait is an exciting machine that should have the likes of Ultimaker worried. Read on as we review all we know about this hot newness of a 3D printer.

The sub-industrial market for 3D printers is possibly more competitive than it has ever been. Low-cost 3D printer kits have gutted the hobbyist market, leaving manufacturers of what one might consider premium products in this arena to double down on the professional dollar.

It is here that the historic imaging company Kodak is throwing its chips. Revealed at formnext 2018, Kodak’s debut 3D printer, the Kodak Portrait, is ready for its close up.

The printer was not developed by Kodak itself, however. Indeed, the Portrait is the work of Argentinian startup Smart International, which successfully pitched for the rights to use Kodak’s illustrious name.

Folding into Kodak’s new image as a brand for creative professionals, the Kodak Portrait is a flagship debut for the company, bringing with it an ecosystem of materials, quality of life features including cloud-connectivity and control, plus manufacturer material profiles for plug-and-play operation.

We saw the printer up close at formnext and can confirm that it looks the business. There are few printers that you encounter without any visible or immediate flaw, and the Kodak Portrait is one of them.

Here’s the full skinny on the specs and features.

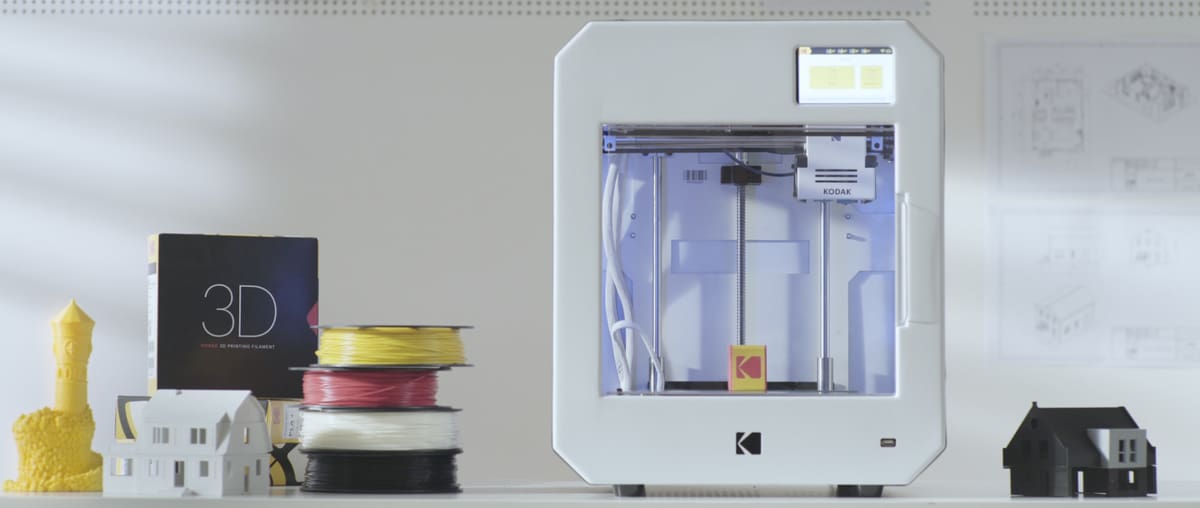

Product image of Kodak Portrait 3D Printer

Kodak Portrait

Kodak Portrait 3D Printer – Review the Specs Features

Image of Kodak Portrait 3D Printer – Review the Specs: Features

The Kodak Portrait is a professionally pitched dual extrusion fused deposition modeling (FDM) 3D printer. Priced at $3,499, it sits squarely amongst the likes of the Ultimaker 3, MakerGear M3-ID and BCN3D Sigma R19 concerning price and capability.

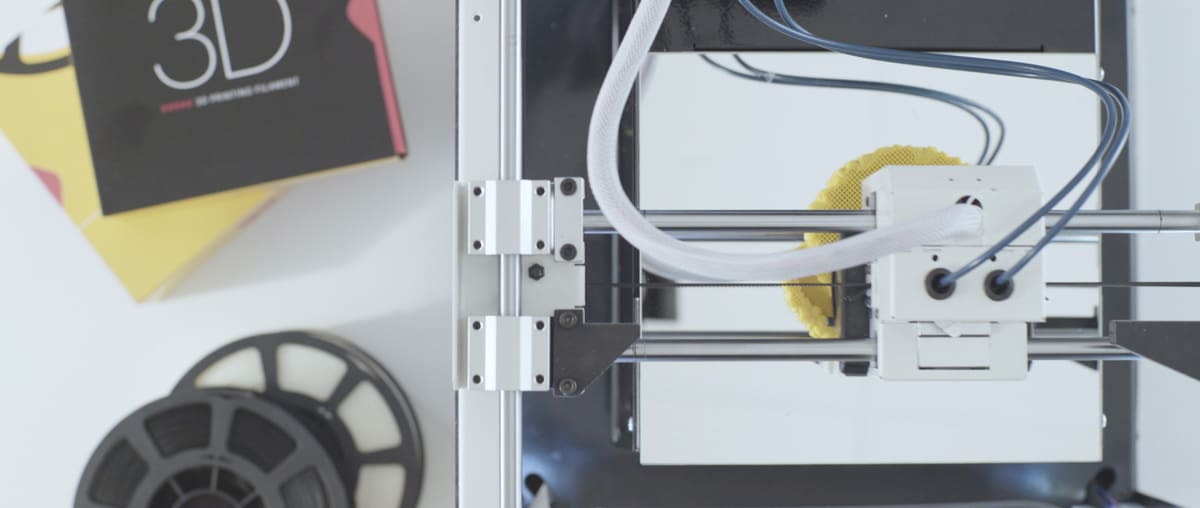

Multi-material printing is handled on the Kodak Portrait via a dual print-core style print head that’s similar to Ultimaker’s “Print Core” concept, introduced in the Ultimaker 3.

Accepting any combination of PTFE and all-metal hot ends to meet a wide variety of material requirements, it’s interesting to see such a system gain traction. Despite their similarities, Kodak’s implementation requires a little more manual work in removing the print head housing to make the switch.

The inactive nozzle is mechanically retracted clear of the print to assist in preventing oozing and create clean transitions between materials and colors.

Feeding this versatile print head is a dual Bowden extruder arrangement, which is in turn fed from one of the more interesting inclusions of the Kodak Portrait — reusable moisture-resistant filament cartridges.

Not the most high tech of features — essentially two lockable clear plastic cases with compartments for silica pouches — these Kodak filament-compatible units mean that it’s possible to load up hygroscopic filaments such as Nylon (which is part of Kodak’s ecosystem of materials for the printer) and print for days without fear of moisture-induced misery. It’s not revolutionary, but a thoughtful rarity nonetheless.

The Kodak Portrait has a 200 x 200 x 235mm print volume, with a removable glass bed that snaps into place using magnets. Heating to 105 and 295 degrees Celsius respectively, the bed and hot ends are just so to aid the machine in tackling a wide range of materials including HIPS, PETG and multiple grades of Nylon.

A rigid all-steel frame with clear acrylic sides and ceiling completely enclose the print chamber, creating a friendly environment for printing temperature sensitive materials. A HEPA and activated carbon air filter tackles the VOCs released during the printing process, up to a point.

The locomotion system features linear rails for stability in the X and Y axes and a precision ball screw for the Z axis, in a Cartesian-XY-head arrangement.

Pitching for effortless operation, Smart International opted to use the experience of 3DPrinterOS for print job generation, printer control, and farm management. Skinned in Kodak’s distinctive yellow color and branded as Kodak 3D Cloud, the resulting software and printer UI prioritizes simplicity, with Kodak material profiles removing the guesswork and trial-and-error often required in printing.

Operable via a web browser from anywhere with an internet connection, this cloud approach to print management allows the Portrait to slot into a network of machines with no load on the machine itself. An inbuilt Raspberry Pi 3 keeps things humming along, with direct operation possible via the printer’s 5-inch color touchscreen.

Offline operation is also possible via the Kodak 3D Slicer for print preparation, shifting print jobs to the Portrait using LAN or USB.

Overall the Kodak Portrait is an intriguing proposition. Including a suite of quality of life features that the direct competition lack for a similar price point sends a clear message, and with a bankable household name slapped across the front of the machine it is, without doubt, one of the more interesting 3D printers to launch this year.

Expect a full review of the Kodak Portrait from us in the not too distant future.

Kodak Portrait 3D Printer – Review the Specs Specifications

Image of Kodak Portrait 3D Printer – Review the Specs: Specifications

General Specs

  • Technology: FDM
  • Year: 2018
  • Assembly: Fully assembled
  • Mechanical arrangement: Cartesian-XY-head
  • Manufacturer: Kodak (Smart International)

Materials

  • Filament diameter: 1.75mm
  • 3rd party filaments: Yes
  • Compatible materials: Kodak ABS, Flex 98, HIPS, Nylon 6, Nylon 12, PETG, PLA+, PLA Tough, PVA, other 3rd-party

3D Printing Properties

  • Accuracy: XY +/-12.5 micron, Z +/- 2.5 micron
  • Layer height: 20 – 250 micron
  • Feeder system: Bowden
  • Extruder type: Single print head – dual hot end
  • Nozzle size: 0.4mm
  • Max. extruder temperature: 295 °C
  • Max. heated bed temperature: 105 °C
  • Max. print speed:
  • Closed print chamber: Yes
  • Bed leveling: Automatic
  • Print bed: Heated
  • Display: 5-inch color touchscreen
  • Connectivity: WiFi, LAN, USB
  • Built-in camera: Yes
  • Extras: HEPA + activated carbon air filter, moisture-blocking filament cartridges

Kodak Portrait 3D Printer – Review the Specs Where to Buy

The Kodak Portrait has a launch price of $3,499. It is available from the retailers listed below.

Product image of Kodak Portrait 3D Printer

Kodak Portrait
