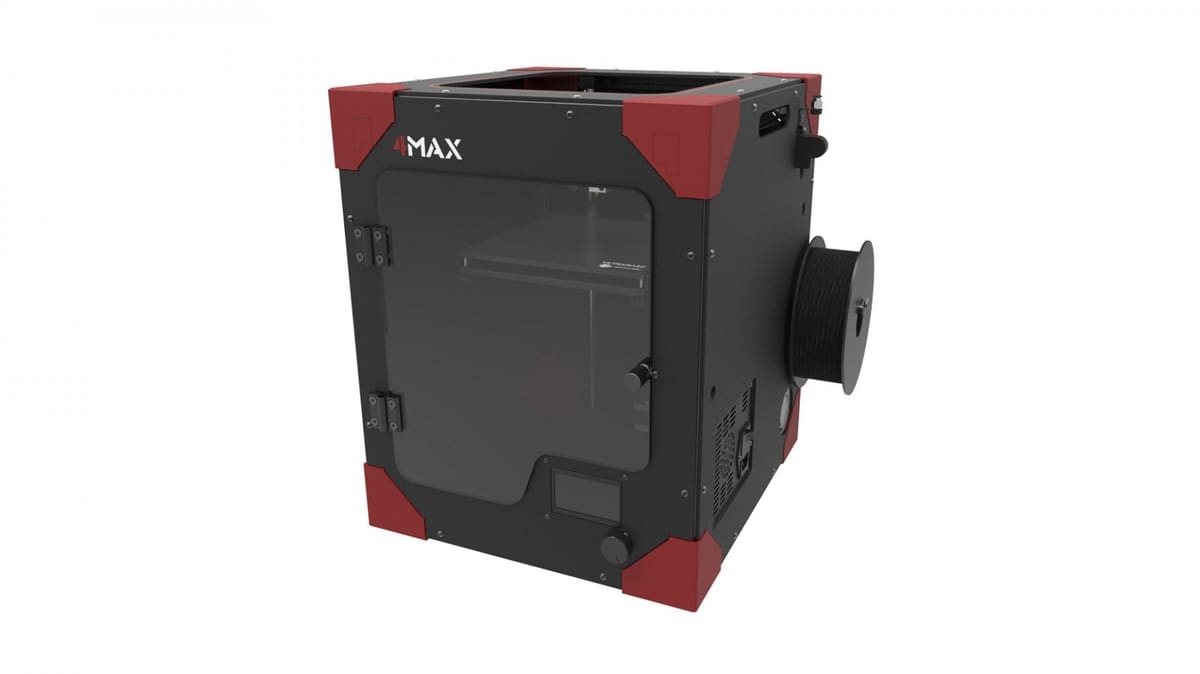

Featured image of Anycubic 4Max (Formax) 3D Printer: Review the Facts
Automatic for the People

Anycubic 4Max (Formax) 3D Printer: Review the Facts

Picture of Anatol Locker
by Anatol Locker
Apr 30, 2018

Anycubic 4Max (Formax) 3D Printer: Review the Facts

With a fully enclosed build space, interesting comfort features, and a very competitive price, the Anycubic 4Max (Formax) soon became a runner-up in the low-cost market. In this "Review the Facts" article we take a look at its specs and features.

This printer from the Chinese company Anycubic was announced in February 2018 and came to market early April the same year. It is clearly inspired by the Zortrax M200 (review here), which is an excellent printer at a much higher price.

Please note that this is not a proper Anycubic 4Max review yet, as All3DP’s editorial team hasn’t taken an in-depth look at the printer. But we can provide you with insights on the specifications.

Don’t miss: 17 Best 3D Printers of Winter 2018

Anycubic 4Max (Formax) 3D Printer: Review the Facts Review the Specs

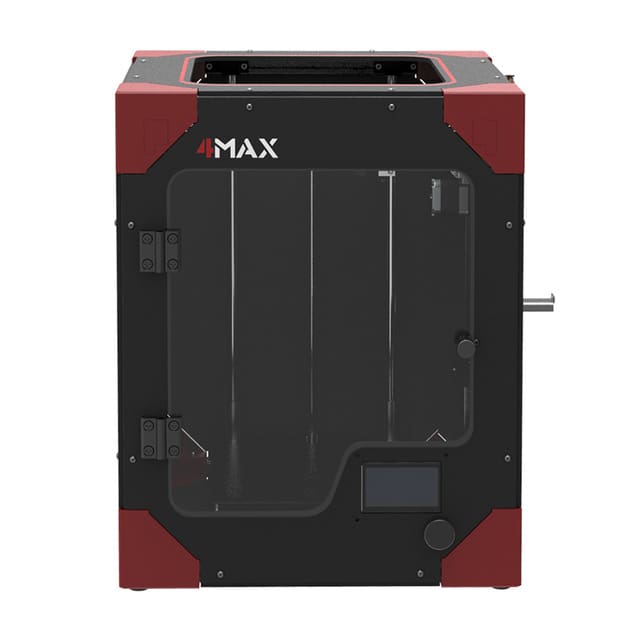

Image of Anycubic 4Max (Formax) 3D Printer: Review the Facts: Review the Specs

These are the specifications of the Anycubic 4Max (Formax) 3D printer:

  • Technology: FDM (Fused Deposition Modeling), single extruder system
  • Build Volume: 210 x 210 x 300 mm
  • Layer Resolution: 0.1-0.4 mm
  • Connectivity: SD card, USB
  • Printing Speed: up to 60 mm/s
  • Filament diameter: 1.75 (Direct drive)
  • Nozzle Diameter: 0.4 mm
  • Operational Extruder Temperature: max 250C
  • Operational Heatbed Temperature: max 110C
  • Heated Bed: Yes
  • Supported Filaments: PLA, ABS, PETG, HIPS, Wood
  • Input rating: 110V/220V AC, 50/60Hz
  • Printer Dimensions: 400 x 425 x 500 mm

Anycubic 4Max (Formax) 3D Printer: Review the Facts What Special about This Printer?

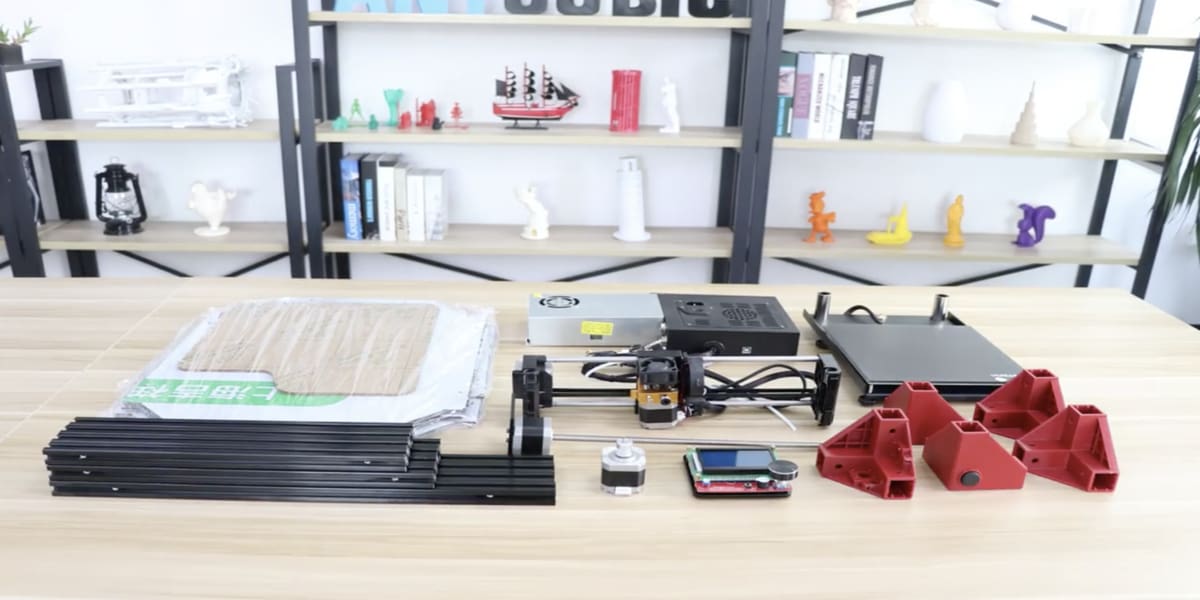

Image of Anycubic 4Max (Formax) 3D Printer: Review the Facts: What Special about This Printer?

This desktop 3D printer comes as a DIY kit that is relatively easy to assemble. It’s not as easy to build as the Anycubic i3 Mega (review here), as there are several more components to assemble (see image above).

There‘s an English documentation available, all the plugs and parts are clearly labeled. As usual, Anycubic even throws in some spares.

You should be able to assemble the Anycubic 4Max (Formax) in under 5 hours.

These are the most prominent features of the Anycubic 4Max (Formax):

  1. Closed build chamber: This is where the Anycubic 4Max (Formax) really stands out from its low-cost competition. A closed build chamber makes it easier to print with notoriously difficult materials like ABS or nylon. These filaments need not only a heated bed (which the Anycubic 4Max has), but also a good temperature management within the printer itself. With an enclosed build room, the upper layers of larger prints will turn out much better.
  2. Filament outage sensor: It’s one of the 3D printing problems you probably already ran into: You started a large print overnight… and then the filament runs out on the last layers. Filament outage can be so annoying! Thanks to a dedicated mechanical sensor in the Anycubic 4Max, the printer senses if spool runs out and stops automatically. Later, you can load a new spool and resume printing.
  3. Power outage: If you are living in an area where power can run out without warning, you’ll love this feature. As soon as you pull the plug or the power cuts out, the Anycubic remembers the last position it printed – and will resume from that point as soon as the power is back up again.
  4. Anycubic Ultrabase: This build plate is the same as in the Anycubic i3 Mega – and we really came to like it. First, this coated glass plate can heat up to 110 degrees Celsius. Second, with a little initial help of gluestick, we never had problems of having the prints stick to the bed. Lastly, it’s still easy enough to remove the print from the bed without having to use brute force. So, in this, the Anycubic 4Max (Formax) really shines.

Models can be loaded via an SD card. Alternatively, you can hook up the Anycubic 4Max to a computer and print directly from there.

When it comes to 3D slicing, the manufacturer offers a dedicated version of Cura on its SD card.

The printer itself is capable of producing prints as big as 210 x 210 x 300 mm. That‘s quite spacious for a $500 3D printer, but if you are looking for more build space, take a look at these large-format 3D printers.

Anycubic 4Max (Formax) 3D Printer: Review the Facts Where to buy it

Image of Anycubic 4Max (Formax) 3D Printer: Review the Facts: Where to buy it

You can order the Anycubic 4Max (Formax) 3D printer from most popular online stores. Currently, the price ranges between 400 and 500 US-Dollars.

Product image of Anycubic 4Max (Formax)

Anycubic 4Max (Formax)

The Anycubic 4Max 3D comes with an enclosure for printing more difficult filaments. It also continues with the last printing from power off with only one click.

You can reach Anycubic on their English / Chinese homepage. If you have questions regarding the 3D printer, you can also check their Facebook page.

This concludes our “Anycubic 4Max (Formax) 3D Printer: Review the Facts” article. If you have any comment, please feel free to add them to the comments.
