Pepsi and Protolabs 3D Print Black Panther Masks for Collector’s Edition Soda Cans

In a unique marketing campaign for the superhero movie Black Panther, Pepsi partnered up with the manufacturing service provider Protolabs to create a collectibles kit that featured five special edition soda cans fitted with 3D printed Black Panther masks.

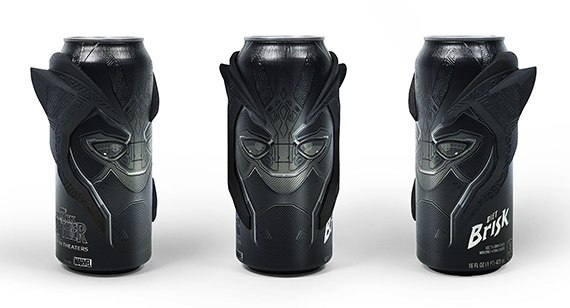

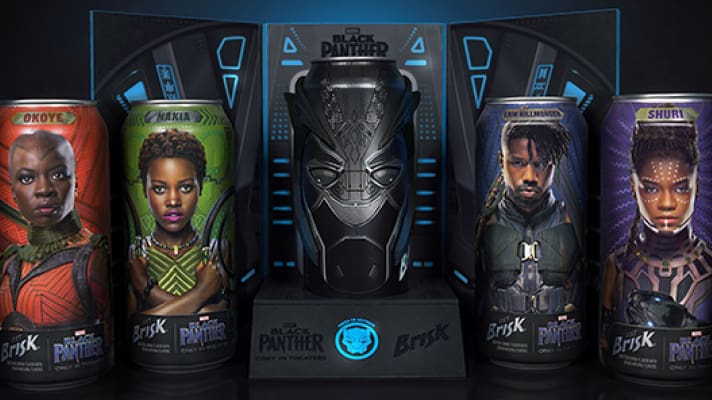

Right in the nick of time for the last month’s premier of the renowned superhero film Black Panther, Pepsi enlisted the help of Protolabs to 3D print a limited-edition promotional collector’s item. The kit, which features five cans that represent each of the movie’s main characters, is fitted with a special 3D printed Black Panther mask.

Aiming to develop and produce 250 complex masks as quickly as possible, Pepsi decided that creating molds would be too expensive. Therefore, they turned to the professional-grade 3D printing service provider Protolabs to create the detailed designs.

“Much of this kit was inspired by the costumes and characters from the movie. This was an exciting opportunity for us to incorporate new technologies to develop unique textures, graphics, dimensional elements, and lighting to bring the kit to life,” says Andrew Phinney, an R&D packaging engineer at PepsiCo.

Testing 3D Printing Processes for the Perfect Pepsi Panther Mask

The team considered using a number of 3D printing technologies, including SLS, SLA, PolyJet, CLIP technology from Carbon and Multi Jet Fusion, but finally settled on just a couple to actualize their unique concept.

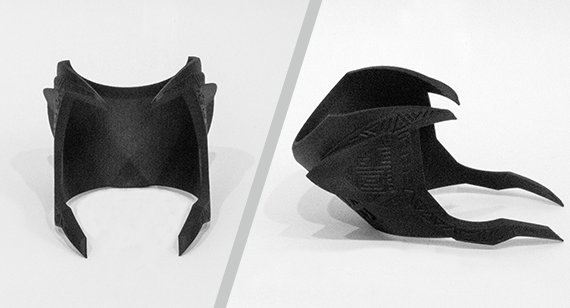

At first, they utilized fused deposition modeling (FDM) machines to create the initial prototypes of the masks. They added some modifications to ensure that the design worked with the picture on the can and that it would remain secure during shipping. For the final product, Multi Jet Fusion technology was used to create the final parts.

As the flagship technology for HP’s impressive 3D printer line, Multi Jet Fusion was chosen due to its ability to provide a high quality surface finish and resolution, while also keeping production prices relatively low.

“When we received the Multi Jet Fusion part it was clear that this technology was going to meet the cosmetic requirements we outlined at the beginning of the design process,” Phinney explains.

Another reason for choosing Multi Jet Fusion was that the team wanted to create a collector’s item that they could be sure would last up to 20 years. Phinney adds that, although SLA and PolyJet offered a high resolution, it wasn’t guaranteed that these processes would hold the deep black color and last for multiple years.

With the perfect 3D printing process chosen, the team started conducting vibration, compression and drop tests to make sure the mask would stay in place. Once they were sure of this, they moved onto shipping the kits. In total, it took just six months to go from conceptualization to a final product, all thanks to Protolabs’ 3D printing technology. Both the Pepsi cans and their sleek 3D printed masks helped gain a lot of attention for the movie, which as most of us know, ended up being a smash hit in the box office.
