TEN-HIGH 40W Laser Engraving Machine – Review the Specs

Picture of Tyler Koslow
by Tyler Koslow
Oct 22, 2018
Advertisement
Advertisement
Advertisement

The TEN-HIGH 40W laser engraving cutting machine is a CO2 gas laser engraver that strikes the balance between affordability and professional quality. Review the specs to learn more.

When shopping for a laser engraver, there are a few important aspects that a maker should take note of. Affordability is generally a major factor in this decision, but safety and quality should take precedence here. Messing around with a high-powered laser is no joke, and these machines can present some frustrating problems if something breaks or needs to be tinkered with.

That’s why we recommend finding a laser engraver that sits somewhere in the middle of affordability and professional quality. One viable option that seems to be taking this segment by storm is the TEN-HIGH 40W laser engraving cutting machine, a popular laser engraver that is available for around $1,300.

It’s not extraordinarily cheap or expensive, instead presenting itself as an ideal option for makers that want a reliable laser engraver without breaking the bank. The Chinese-manufactured TEN-HIGH 40W laser engraving cutting machine is equipped with a number of safety and performance features that place it a notch or two above other low-priced laser engravers.

Sorting through the sea of budget laser engravers can be a trying experience, as there are a lot of options and little distinction between them. So let’s review the features and specs of the TEN-HIGH 40W laser engraving cutting machine to find out what sets this machine apart from the pack.

TEN-HIGH 40W Laser Engraving Cutting Machine
Check price at:
Advertisement

TEN-HIGH 40W Laser Engraving Cutting Machine – Review the Specs Features

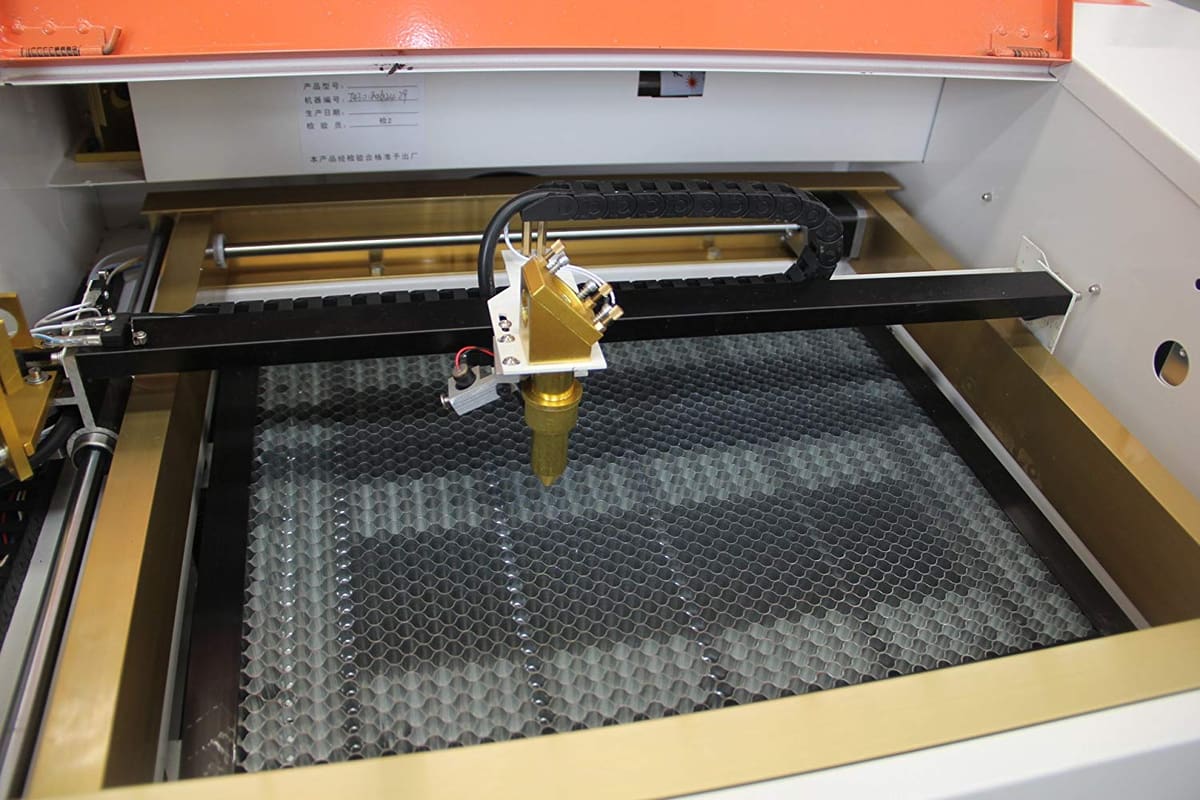

Image of TEN-HIGH 40W Laser Engraving Cutting Machine – Review the Specs: Features

For software, users can either install CorelDRAW or utilize the LaserDRW software that is included with the product.

Advertisement

TEN-HIGH 40W Laser Engraving Cutting Machine – Review the Specs Technical Specifications

Image of TEN-HIGH 40W Laser Engraving Cutting Machine – Review the Specs: Technical Specifications

Here are the technical specifications for the TEN-HIGH 40W Laser Engraving Cutting Machine:

  • Laser Type: CO2 Gas
  • Laser Power: 40W
  • Communication Interface: USB port
  • Wavelength: 10.64um
  • Engraving Area: 400 x 300mm
  • Automatic lifting height: 150mm
  • Engraving Speed: 0-500mm/s
  • Cutting Speed: 0-30mm/s
  • Cutting/Engraving accuracy: 0.15mm
  • Carving Depth: 0-2mm
  • Cutting thickness: 0-4mm (Acrylic), 0-2mm (hardwood), 0-3mm (cork/plywood, plywood)
  • Software: CorelLASER, LaserDRW
  • System: WIN7/WIN8/WIN10 (32-bit system is the most stable)
  • Machine size: 810 x 610 x 410mm
  • Net Weight: 50kg

Components

  • Laser Tube: 40W (Length 700mm/Diameter 50mm)
  • Focal Lens: (Diameter 18mm / Focal Length 50.8mm)
  • Reflection Mirror: Molybdenum Mirror 20mm
Advertisement

TEN-HIGH 40W Laser Engraving Cutting Machine – Review the Specs Where to Buy

You can purchase the TEN-HIGH 40W Laser Engraving Cutting Machine on Amazon:

TEN-HIGH 40W Laser Engraving Cutting Machine
Check price at:
