2019 Einscan Pro 2X 3D Scanner – Review the Specs

Picture of Tyler Koslow
by Tyler Koslow
Jan 16, 2019

2019 Einscan Pro 2X 3D Scanner – Review the Specs

Table of Contents

Shining 3D has released the Einscan Pro 2X 3D scanner and ExScan Pro software, ushering in the next-generation of seamless 3D scanning solutions. Let's review the specs.

Akin to the increasing affordability that has revolutionized the desktop 3D printer market, 3D scanning technology is undergoing a similar transformation as these devices become easier to use, less expensive, and most importantly, more capable of capturing high-quality 3D images.

One of the pioneers responsible for the ongoing innovation in the field of 3D scanning technology is Shining 3D. Founded in 2004, the 3D scanner manufacturer has become a tour de force on the global high-tech market, expanding outward from its roots in China and gaining a hefty presence in both North America and Europe.

Following in the footsteps of Shining 3D’s professional-grade 3D scanning product line, which includes the EinScan Pro and EinScan Pro+, the company has just released two new models: the EinScan Pro 2X and EinScan Pro2X Plus. First revealed at formnext 2018 in Frankfurt, Shining 3D is praising its latest batch of products as the next-generation of multifunctional handheld 3D scanners.

“Based on the feedback received from thousands of users and the valuable input of SHINING 3D’s own R&D team, the EinScan Pro 2X & 2X Plus deliver substantial improvements on scan speed, accuracy and function. Making a dramatic breakthrough in scanning speed and data quality, the EinScan Pro 2X series is aimed to improve the efficiency in generating high-quality 3D models,” said Oscar Meza, VP of Global Sales at SHINING 3D.

Both the EinScan Pro2X and EinScan Pro 2X Plus come packaged with ExScan Pro, a new software program by Shining 3D that is intended to greatly simplify the 3D scanning process. Furthermore, Shining 3D is also offering a full-fledged production ecosystem that includes Solid Edge SHINING 3D Edition and the manufacturer’s extensive line of 3D printers. All in all, the company is aiming to provide customers with a comprehensive workflow that is comprised of 3D scanning, design and simulation, and 3D printing.

In the following article, we’ll take a closer look at the EinScan Pro 2X, the base model of Shining 3D’s newest handheld 3D scanning system. Let’s review the features, specs, and where you can buy this 3D scanner.

Product image of Shining 3D Einscan Pro 2X

Shining 3D Einscan Pro 2X

Einscan Pro 2X 3D Scanner – Review the Specs Features

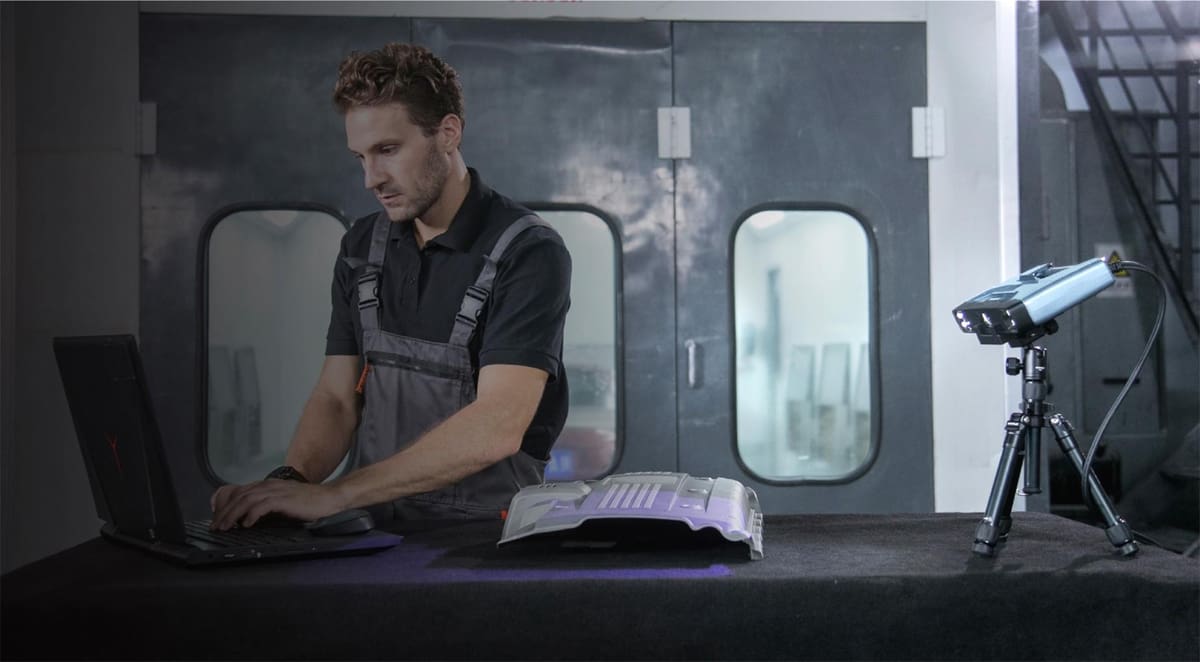

Image of Einscan Pro 2X 3D Scanner – Review the Specs: Features

Before we explore how the Shining 3D Einscan Pro 2X differs from the original Pro model, let’s go over the features that this professional 3D scanning system has to offer.

Similar to the other handheld 3D scanners designed by Shining 3D, the EinScan Pro 2X is both lightweight and compact in size, making it portable and extremely versatile. Weighing in at just over 1kg, you can take this 3D scanner just about anywhere, stretching the boundaries of what you can capture far beyond what a stationary system can offer.

This system is ideal for scanning small-to-medium sized objects, and it does so at an incredibly high speed without sacrificing quality. The EinScan Pro 2X offers four different 3D scanning modes: Handheld Rapid Scan Mode, Handheld HD Scan, and Fixed Scan Mode (both with or without a turntable). It also supports a range of alignment modes, including feature alignment, markers alignment, turntable coded targets alignment, and manual alignment.

With Handheld Rapid Scan Mode, the EinScan Pro 2X is capable of processing up to 1,500,000 points per second (30 fps). While Handheld HD Scan Mode is a bit slower, it does offer an impeccable scanning accuracy of up to 0.05 mm. For both of these handheld modes, the volumetric accuracy can be improved by utilizing markers on the objects you plan to scan.

When in Fixed Scan Mode, which is the mode used when the scanner is stationary, the accuracy can reach up to 0.04mm.

Another aspect that places the EinScan Pro 2X a notch above other handheld 3D scanners is the fine details that it captures. When using Handheld Rapid Scan and Handheld HD Scan modes, the minimum point distance is up to 0.2mm, leading to the generation of high-resolution 3D data.

The EinScan Pro 2X has a modular design and a number of optional packs that can be added to enhance the 3D scanning experience. The Color Pack makes it possible to capture full-color textures alongside the object’s geometry. If you want to use a turntable and tripod to help automate the scanning process, you can do so by adding the Industrial Pack.

It’s important to note that while Shining 3D offers an HD Prime Pack for increased scanning speed and better quality, this add-on is only compatible with the Pro 2X Plus mode. All in all, like the EinScan Pro model before it, Shining 3D has engineered the EinScan Pro 2X to be modifiable depending on each user’s needs.

Compared to the original EinScan Pro, the 2X model offers better specs across the board, including quicker scanning speeds and improved accuracy.

Perhaps even more impressive than the new 3D scanner is the software behind it all. Shining 3D has developed ExScan Pro, 3D scanning software that aims to make the process as simple as taking a video. It offers a brand-new and highly intuitive user interface and workflow.

One of the paramount facets found in ExScan Pro is Operation Mode, a function that enables users to increase the speed of the scanning process during operation and set the resolution after that fact. It’s also compatible with a wide array of file formats, capable of outputting STL, OBJ, PLY, ASC, and P3.

Outside of the scanning software, Shining 3D has also collaborated with Siemens PLM Software to develop a the Solid Edge SHINING 3D Edition software. This state-of-the-art software is equipped with some incredible design tools, including reverse engineering, generative design, convergent modeling, synchronous modeling, and simulation, fused with a versatile CAD tool all in one single platform.

As Shining 3D explains, the purpose of this design software is to complete the company’s extensive ecosystem, which currently entails 3D scanning, design and simulation, and additive manufacturing. The EinScan Pro 2X is an integral part of this ecosystem, making professional 3D scanning much more accessible and easy to use for beginners, while also improving the image quality and overall workflow for advanced users.

Einscan Pro 2X 3D Scanner – Review the Specs Tech Specs

Image of Einscan Pro 2X 3D Scanner – Review the Specs: Tech Specs

Depending on which mode is being used on the Shining 3D Einscan Pro 2X, the capabilities of the 3D scanning system will differ significantly. Here’s a roundup of the technical specifications:

Technical Specifications

  • Model: Shining 3D Einscan Pro 2X
  • Scan Modes: Handheld HD Scan, Handheld Rapid Scan, Fixed Scan with turntable/Fixed Scan without turntable (Industrial Pack Add-on Required)
  • Scanning Accuracy
    • Handheld HD Scan: up to 0.05 mm
    • Handheld Rapid Scan: up to 0.1 mm
    • Fixed Scan: 0.04 mm (single shot accuracy)
  • Volumetric Accuracy: 0.3 mm/m (Markers Alignment)
  • Scan Speed
    • Handheld HD Scan: 20 fps; 100,000 points/s
    • Handheld Rapid Scan: 30 fps; 1,500,000 points/s
    • Fixed Scan: Single Scan < 1s
  • Point Distance
    • Handheld HD Scan: 0.2 mm-2 mm
    • Handheld Rapid Scan: 0.2 mm-2 mm
    • Fixed Scan: 0.16mm
  • Single Scan Range: 135*100 mm——225*170 mm
  • Depth of Field: ±100 mm
  • Working Distance: 400 mm
  • Light Source: LED
  • Align Mode
    • Handheld HD Scan: Markers Alignment
    • Handheld Rapid Scan: Markers Alignment, Feature Alignment, Hybrid Alignment
    • Fixed Scan (with Turntable): Turntable Coded Targets, Feature, Markers, Manual Alignment
    • Fixed Scan (without Turntable): Markers, Feature, Manual Alignment
  • Texture Scan
    • Handheld HD Scan: No
    • Handheld Rapid Scan: No
    • Fixed Scan: Yes (with Color Pack Add-on)
  • Outdoor Operation: Set up the shelter or cover to avoid direct sunlight
  • Special Objects for Scanning: For the transparent, highly reflective or some dark objects, please spray powder before scanning
  • Printable Data Output: Able to export watertight 3D model for 3D printing
  • Output Format: OBJ , STL , ASC , PLY , 3MF, P3
  • Scan Body Weight: 1.13 kg
  • Supported OS: Win 7, Win 8, Win 10, 64 Bit
  • PC Requirements: Display card: NVIDIA GTX770 or higher; Video memory>4G; CPU: i7 or higher; RAM: 16G or higher; USB 3.0

Einscan Pro 2X 3D Scanner – Review the Specs Where to Buy

You can request a quote for the EinScan Pro 2X below.

Product image of Shining 3D Einscan Pro 2X

Shining 3D Einscan Pro 2X
