Fourth Time's the Charm

Ortur-4 3D Printer – Review the Specs

Picture of Azzura Lalani
by Azzura Lalani
Apr 18, 2019

Ortur-4 3D Printer – Review the Specs

We dive in and review the specs of the Ortur-4. Read on as we take a look at all we know about this speedy printer's features.

The Ortur-4 is a high-speed printer that boasts printing times of two to three times faster than similar machines.

Produced by Dongguan Ortur Intelligent Technologies Co, a Chinese 3D printer manufacturer, this cleanly designed, solid machine has a steel casing structure and offers some excellent features for its sub-$500 pricetag.

Though we haven’t had a chance to use it yet, we’ve pored over the specs to see whether it’s worth your money. Interested in learning more about it? Dive into our review of the Ortur-4’s specs.

Ortur-4

Product image of Ortur-4
1

Ortur-4 - Review the Specs Features

While there are plenty of RepRap machines on the market, this one has been able to distinguish itself thanks to a few key features, not to mention its reasonable price of under $500.

1. Printing Speed

The beauty of this machine is it’s fast. Ortur boasts it can print two to three times faster than other popular FDM 3D printers and in real life can print as high as 150 mm per second, while maintaining print quality. This is a handy feature if you’re using the machine for prototyping or just don’t want to spend a lot of time waiting on prints.

Special attention was given to the guide rails on the Ortur-4. (Source: 3D Printers Online Store)

2. Dual-axis linear guide rail

The accuracy of this printer is upgraded through its dual-axis linear guide rails, which are on each axis. This helps the machine move quickly, but also stay stable and smooth. It should also help with the machine’s longevity since it makes the whole part more sturdy.

3. Wire management

The wires are beautifully hidden throughout the Ortur-4. To keep its wires tucked away neatly and to help reduce the sound of the printer, a drag chain is used.

4. Auto bed leveling

Bed leveling is a lot easier when you don’t have to do it yourself. The Ortur-4 takes on this task for you by calibrating 9 points on the hotbed, much like a Prusa printer does.

Auto bed leveling is a handy feature this printer offers. (Source: 3D Printers Online Store)

5. Resume print

This is another key component in a printer’s arsenal so power outages or pauses don’t affect your print and it can go back to work when the power is back up.

6. Overheating protection

If the printer gets too hot, it will automatically stop till it’s cooled down sufficiently — a handy safety feature, though we wonder how much printing it takes to set this feature off.

7. Filament Detection

Nothing is more frustrating than running out of filament midway through a print and your printer not realizing it and chugging along obliviously. The Ortur-4 avoids this with filament detection, which notices the problem right away and pauses the print until you’ve replaced the empty spool.

Filament detection has become a fairly standard feature – and for good reason. (Source: 3D Printers Online Store)
2

Ortur-4 - Review the Specs Technical Specifications

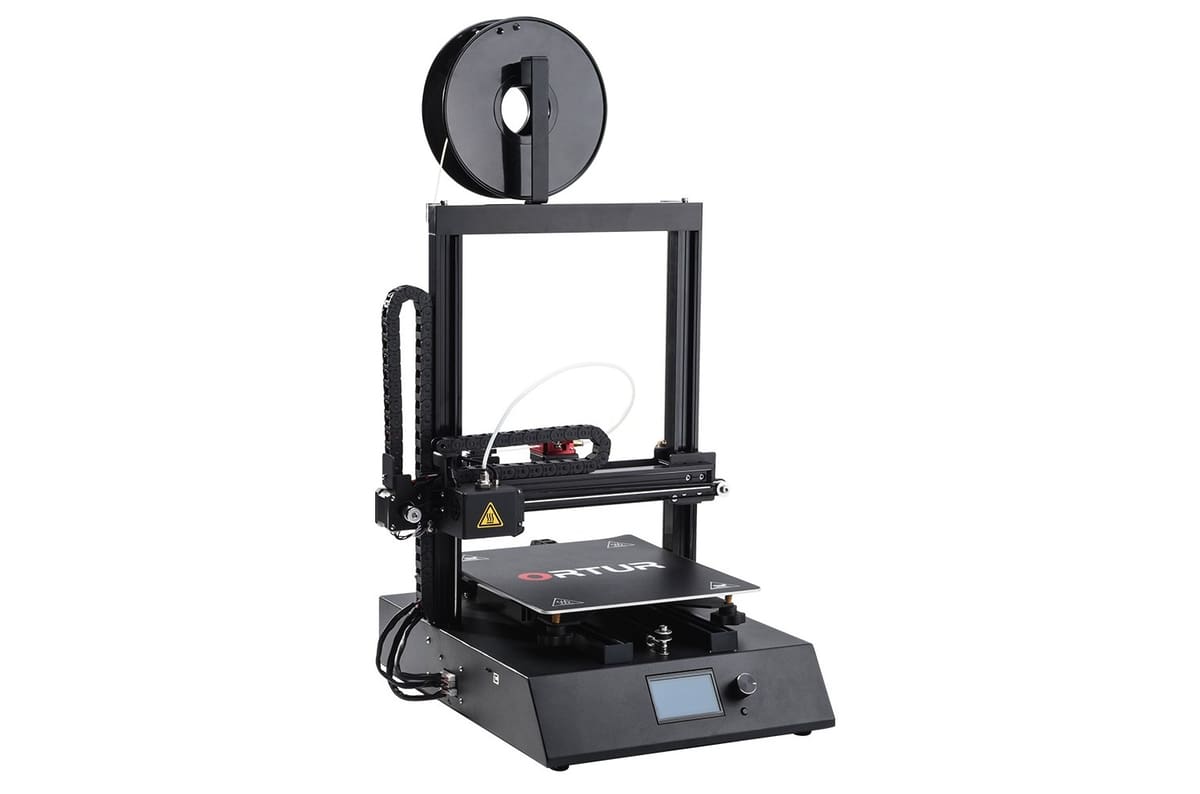

Image of Ortur-4 - Review the Specs: Technical Specifications
The Ortur-4 in all its glory. (Source: 3D Printers Online Store)

Here’s a rundown of the Ortur-4’s technical specifications:

General specifications

  • Technology: FDM
  • Type: Material extrusion
  • Year: 2018
  • Assembly: Semi-assembled
  • Mechanical arrangement: Cartesian
  • Manufacturer: Ortur

3D PRINTING PROPERTIES

  • Build volume: 260 x 310 x 305 mm (10.23 x 12.2 x 12 inches)
  • Extruder type: Single
  • Nozzle size: 0.4 mm
  • Max. extruder temperature: 275°C
  • Max. heated bed temperature: 90°C
  • Frame: Steel
  • Print chamber: Open, not enclosed
  • Bed leveling: Auto
  • Print bed: Aluminum
  • Heated bed: Yes
  • Display: LCD screen with control knob
  • Connectivity: SD card, USB, micro SD
  • Built-in camera for monitoring: No
  • Print recovery: Yes
  • Filament sensor: Yes

MATERIALS

  • Filameter diameter: 1.75 mm
  • Third party filaments: Yes
  • Materials: ABS, PLA, PETG, PVA, more

SOFTWARE REQUIREMENTS

  • Recommended slicer: Cura, Simplyfy3D, Slic3r
  • Operating systems: Windows, Mac, Linux

DIMENSIONS AND WEIGHT

  • Outer dimensions: 450 x 420 x 710 mm (17.72 x 16.54 x 27.95 inches)
  • Weight: 11.5 kg (25.35 lbs)
3

Ortur-4 - Review the Specs Where to Buy

You can purchase the Ortur-4 from the following online retailers:

Ortur-4

Product image of Ortur-4
