2019 3DGence Industry F340 3D Printer – Review the Specs

Picture of Azzura Lalani
by Azzura Lalani
Jul 29, 2019
Advertisement
Advertisement
Advertisement

The Industry F340 by 3DGence is a versatile professional 3D printer which can handle PEEK. Read on as we review the specs.

Polish professional 3D printer manufacturer 3DGence bills itself as the first company in the world to introduce soluble support material for printing with PEEK. Among its printer lineup is the Industry F340, an enclosed machine with a heated chamber and air filtration system.

3DGence says this printer is ideal for a range of applications, including the automotive sector, prototyping, the production process and more. But is it the right printer for you? Read on as we deep dive into this industrial printer’s specs.

3DGence Industry F340

Product image of 3DGence Industry F340
Advertisement
1

3DGence Industry F340 - Review the Specs Features

Image of 3DGence Industry F340 - Review the Specs: Features

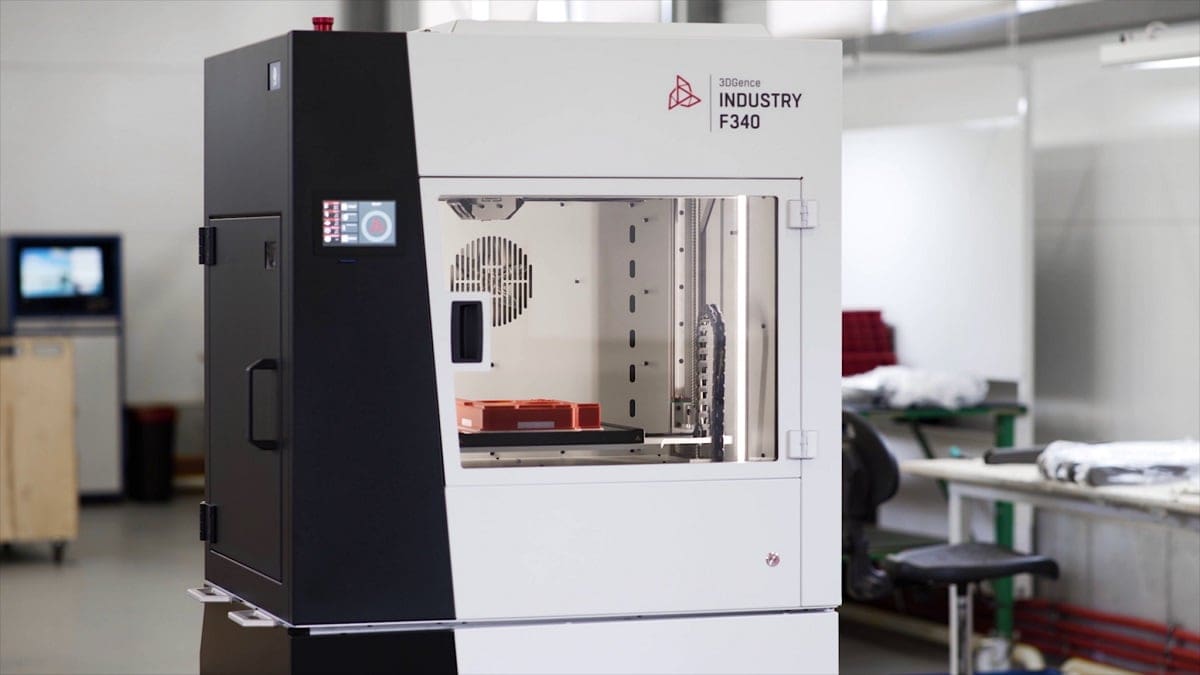

3DGence's Industry F340 printer is designed for industrial use. (Source: Supplied)

Modules

Perhaps most significant about this machine is its versatility. The Industry F340 has modules which you can swap out depending on which engineering-grade materials you want to use. This should save you money since you only need to buy one printer to rule them all.

Heated, enclosed printing chamber

Temperamental filaments need very specific printing conditions in order to shine. This heated, enclosed printing chamber should help achieve that.

Heated filament chamber

Similarly to above, the heated filament chamber should keep your expensive filaments dry and toasty while they’re in use. It’s handy because nothing’s worse than damp filament

Air filter

This air filter should help avoid releasing harmful fumes into the air by purifying it while you print.

Dual extrusion

Everything you print should have easy-to-remove support structures thanks to dual extrusion. This will mean less time spent in post-processing.

Smart material manager

This system is supposed to be able to recognize the type of material you use, weigh it, automatically load it and has a flow control sensor.

Advertisement
2

3DGence Industry F340 - Review the Specs Technical Specifications

Image of 3DGence Industry F340 - Review the Specs: Technical Specifications

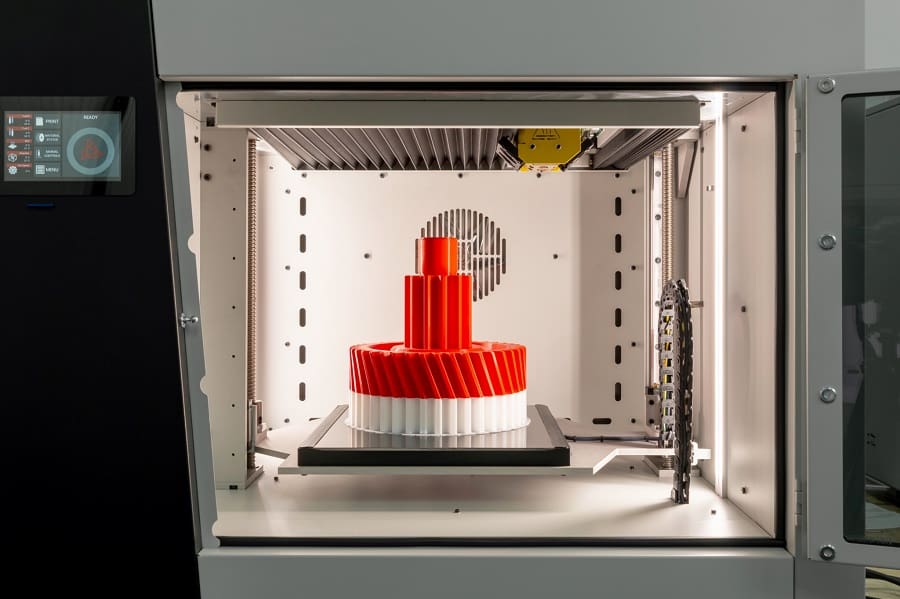

The F340's heated printing chamber allows you to 3D print accurate and durable parts. (Source: Supplied)

GENERAL SPECIFICATIONS

  • Technology: FFF
  • Year: 2018
  • Mechanical arrangement: Cartesian
  • Manufacturer: 3DGence

3D PRINTING PROPERTIES

  • Build volume: 260 x 300 x 340 mm
  • Layer resolution (min): 40 microns
  • Extruder: Dual extrusion
  • Extrusion: Direct drive
  • Printing nozzles: 0.4 mm and 0.6 mm
  • Filament diameter: 1.75 mm
  • Max. extruder temperature: PRO module: 190 – 265°C, HF module: 190 – 265°C, HT module: 265 – 340°C, HTmax module: 340 – 500°C
  • Max. heated bed temperature: 160°C
  • Print chamber: Enclosed
  • Connectivity: USB, SD card
  • Power: 240V A – 11A 50/60 Hz
  • Power consumption: Max. 2700 W

MATERIALS:

  • Third-party filament: Yes
  • Filament materials: PLA, ABS, PET, nylon, PP, ASA, PC, PC-ABS, PC-ESD, PC-CF, PA-CF, PEEK
  • Support materials: HIPS, BVOH, ESM-10, dedicated breakaway

SOFTWARE REQUIREMENTS:

  • Operating system: Windows, macOS
  • Recommended slicer: 3DGence Slicer
  • Supported file types: .stl, .obj

DIMENSIONS AND WEIGHT:

  • Shipping box dimensions: 1200 x 800 x 1100 mm
  • Shipping weight: 250 kg (includes accessory kit)
  • Printer dimensions: 945 x 748 x 950 mm
  • Printer weight: 140 kg
Advertisement
3

3DGence Industry F340 - Review the Specs Where to Buy

You can purchase an Industry F340 3D printer by requesting a quote from 3DGence.

3DGence Industry F340

Product image of 3DGence Industry F340
