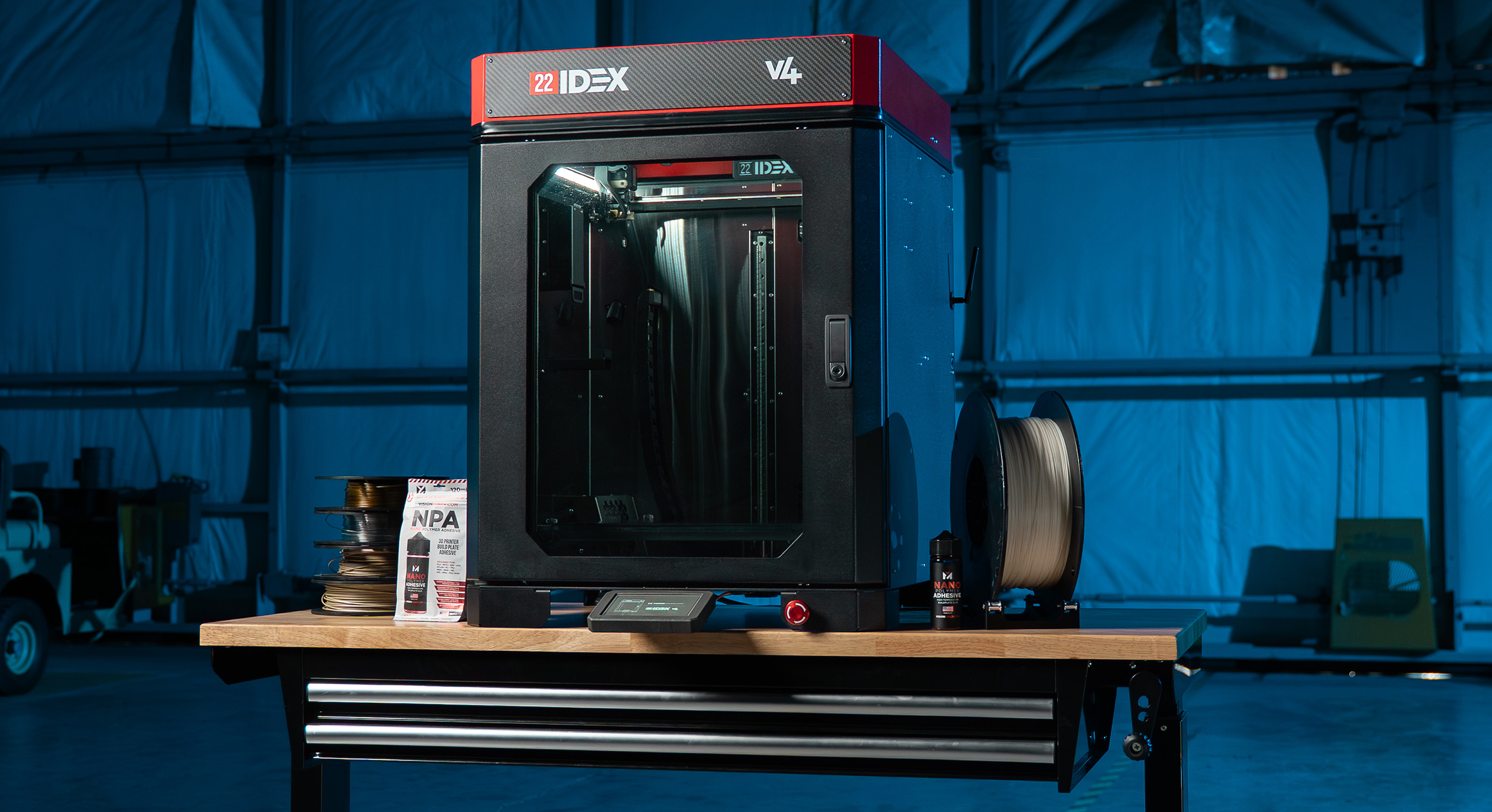

Vision Miner 22 IDEX V4: A High-Temp IDEX Workhorse That’s Built for Uptime, Not Tinkering
With 500 °C nozzles, fully automated calibration, and a design focused on serviceability, this machine is made to produce high-performance parts – not just prototypes.
Vision Miner has spent nearly a decade building serious tools for real-world production. For the past five years, its 22 IDEX platform has earned a reputation on shop floors across military, oil and gas, medical, and automotive industries.
Now, the company’s latest release – the 22 IDEX V4 – takes things up a notch. It’s a high-temperature, independent dual-extrusion 3D printer made for parts that need to handle heat, chemicals, and heavy loads – all at a price ($14,900) that even small teams can justify.
“For years, manufacturers have had to choose between hobby-grade printers that can’t handle real materials and six-figure machines that are out of reach for most teams,” says Robert Lent, chief operating officer at Vision Miner. “The 22 IDEX V4 bridges that gap – bringing true industrial capability to anyone who needs high-performance parts, not just prototypes.”
Why the 22 IDEX V4 Matters
In additive manufacturing, there’s a clear divide between hobby printers and industrial machines: the 22 IDEX V4 bridges that gap.
Starting at $14,900, it delivers the heat, chamber control, and throughput needed for materials like PEEK, PEKK, ULTEM™, PPSU, PC, nylon, and carbon-fiber composites. That’s why the 22 IDEX lineup has already become a proven workhorse in demanding environments.
Built for Production, Not Tinkering

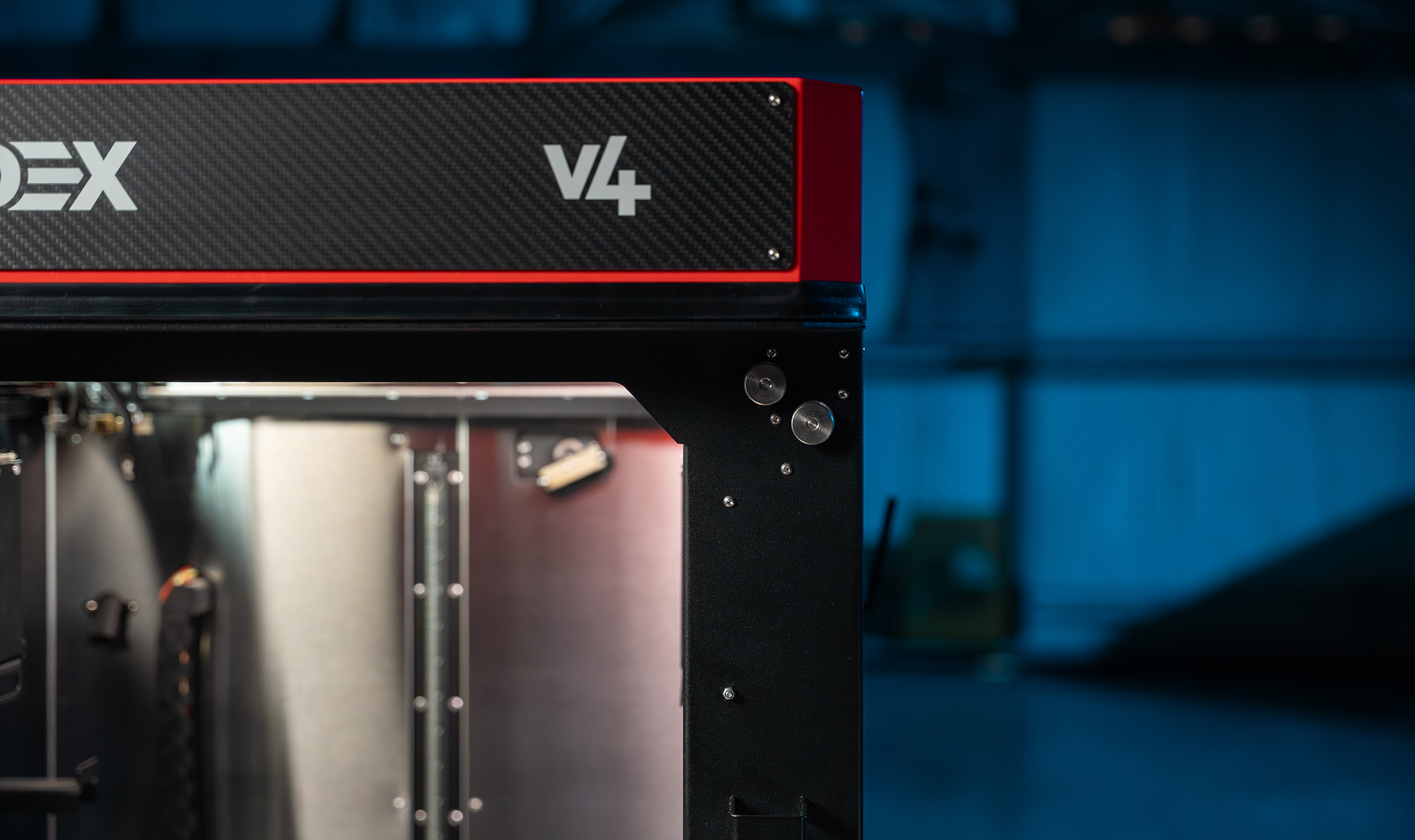

The V4 is built to run nonstop and be serviced fast. It combines a 500 °C nozzle, 200 °C bed, and 100 °C actively heated chamber with triple-wall insulation and a stainless-steel interior that reflects heat back into the part. A sealed dual-pane front door keeps the chamber stable, improving layer adhesion and dimensional accuracy when printing high-temp polymers.
The welded steel frame, lockable access panels, and mounting points for benches or vehicles make it rugged enough for industrial or even field use.
An integrated HEPA and carbon filtration system keeps air clean through internal recirculation – safe to operate without external exhaust. It runs on standard 110V, 15–20A power and offers a 350 × 350 × 450 mm build volume, ideal for small-batch production.
High-temp Materials at an Accessible Price
The V4 gives manufacturers access to true high-temperature printing, usually reserved for much pricier systems.
Take PEEK, for example: teams that once machined small PEEK blocks costing over $1,000 (and wasting most of the material) can now print the same parts for around $14 in raw filament – saving thousands and cutting lead times dramatically.
In one case, an electronics manufacturer now prints custom wave-solder trays overnight for a few hundred dollars instead of waiting weeks. A Japanese automotive company uses the printer for ABS prototypes with soluble HIPS supports, slashing tooling time and cost.
Meanwhile, Dark Matter X, a Subaru performance parts maker, builds components from carbon-nylon and PC-carbon. Aerospace users have even printed HVAC systems and helicopter components for under $30 each.
Independent Dual Extrusion Done Right
Each toolhead hits 500 °C, enabling dual-material, soluble-support, duplicate, and mirror modes – effectively like having two printers in one. Users can even mix nozzle sizes on the same job.
A triple-Z bed with mechanical self-leveling tilts perfectly to the nozzle plane to enable true 5-axis printing, minimizing setup time and keeping alignment consistent after plate swaps.
Automation That Saves Hours
With a single command, the V4 calibrates tool offsets, Z height, squaring, and leveling. The bed automatically aligns to the nozzle plane, so switching between carbon fiber, glass, or spring-steel plates is quick and painless.
Under the hood, four externalized XY motors with Trinamic drivers hit speeds of 500 mm/s and 15,000 mm/s² acceleration. Features like auto belt tensioning, input shaping, active filament drying, and runout detection keep production consistent and hands-off.
Open Control, Secure by Design
The printer runs on Duet electronics with open-source firmware and full documentation. Users can control it via Wi-Fi, Ethernet, or run it offline in secure environments. For defense and aerospace users, removable networking modules ensure ITAR compliance – a rare but critical feature.
Most Use Cases at a Fraction of the Cost
The 22 IDEX V4 handles 80%-90% of high-temperature industrial FDM applications at a fraction of the price of larger systems.
For oversized parts or materials needing even hotter chambers, Vision Miner offers bigger platforms – but most manufacturers find the V4 to be the perfect daily workhorse. Many even run multiple units in parallel for redundancy and extra throughput.
For full specs, pricing, and more details on the Vision Miner 22 IDEX V4 3D Printer, visit Vision Miner’s website.
