As mentioned, compatibility can be a significant reason to change the 3D printer’s firmware, so let’s take a closer look at what we mean.

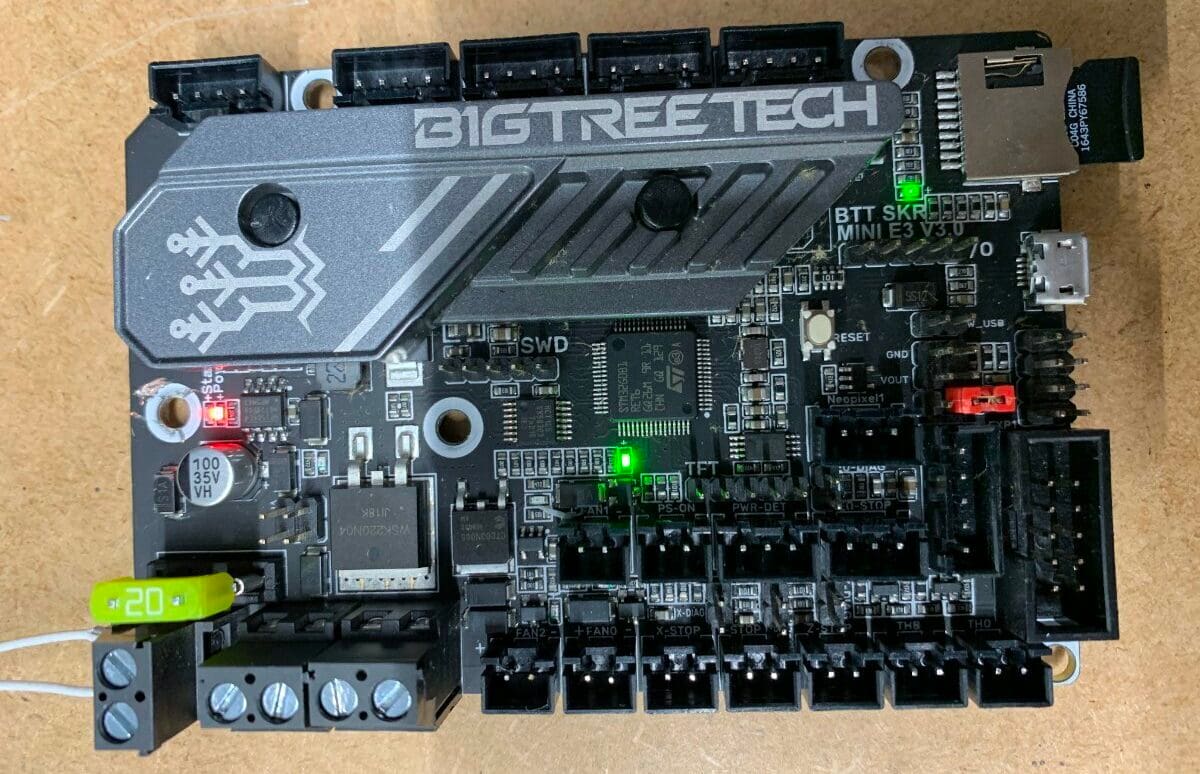

The Controller Board

The controller board is like the motherboard in a PC or smartphone. So, just as an Apple device can’t run Android OS, similarly, a controller board can’t run every firmware. Some controller boards are limited by their hardware capabilities, others because of their proprietary design.

If you’re going to change the firmware of your 3D printer, it’s crucial to know the exact specifications of your controller board. Often, they’re printed on the controller board itself. Otherwise, you can look at the manufacturer’s specifications sheet for more detailed information.

Some printers, especially high-grade professional ones, have proprietary controller boards. In such cases, it’s more difficult or even impossible to make any firmware changes.

The Firmware

Just as controller boards aren’t designed to run every firmware, similarly, firmware isn’t designed to be universally supported. When you’re choosing firmware, you need to look at whether your chosen option is compatible with your controller board specifications.

You should check the websites of your firmware and controller board to see if one mentions the other. If you have any doubts, you can always contact the manufacturers to be sure.

It also helps to know the current firmware running on your 3D printer. If you’re using the stock firmware, 3D printer manufacturers often upload updated versions to their websites.

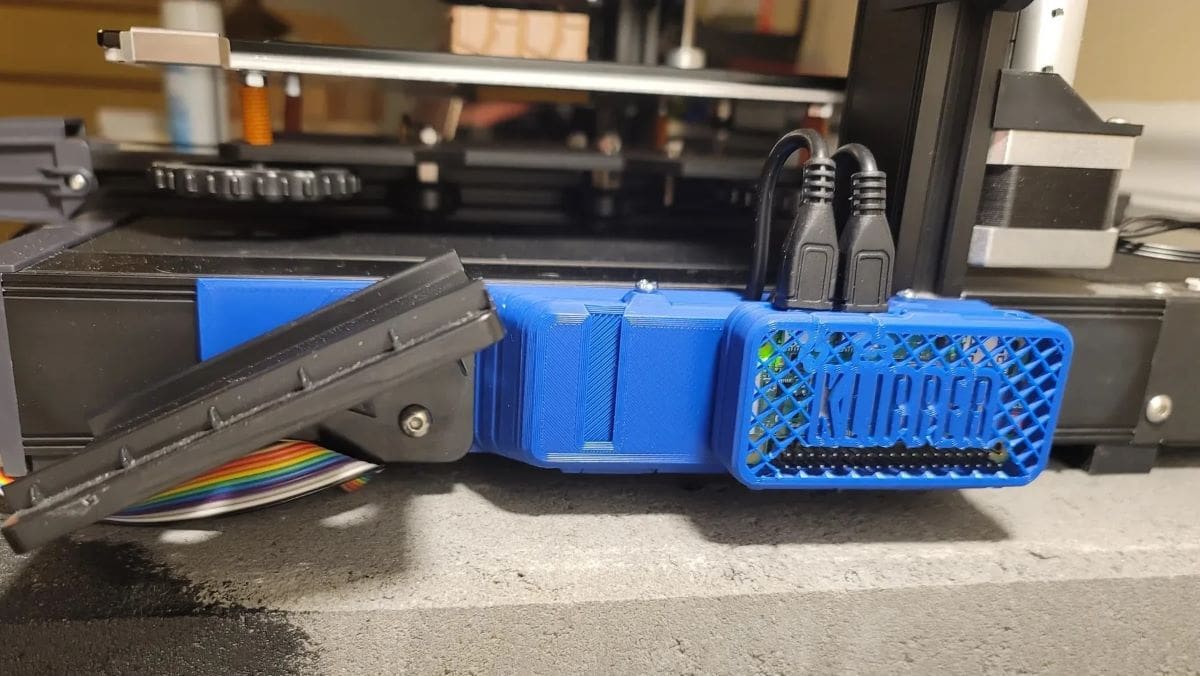

To change your 3D printer’s firmware you’ll need the following things:

• A computer: It can be the same machine you’re using for your 3D printing workflow.
• Arduino IDE: You can download this for free from Arduino’s website. It’s required to view, edit, and upload firmware.
• USB cable: Depending upon your 3D printer port, you’ll need a USB cable to connect your PC to your 3D printer.
• Firmware file: Depending on your preferences, download the 3D printer firmware file from the respective sources. In this article, we’ll be using Marlin as an example of firmware when updating.
• Printer-specific information: Once you’ve chosen the compatible firmware, navigate to where the machine-specific configurations are stored. You should make a note of the default settings that are specific to your 3D printer. These might include:
  • Steps (mm) for your extruder and X-, Y-, and Z-axis motors
  • Maximum travel distances of your three axes
  • Maximum feed rates (or speed) and acceleration for your axes and extruder motors
  • Any other custom settings in your original firmware

Below are the major steps that you need to follow to change your 3D printer’s firmware:

1. Connect your 3D printer to the computer with a USB cable.

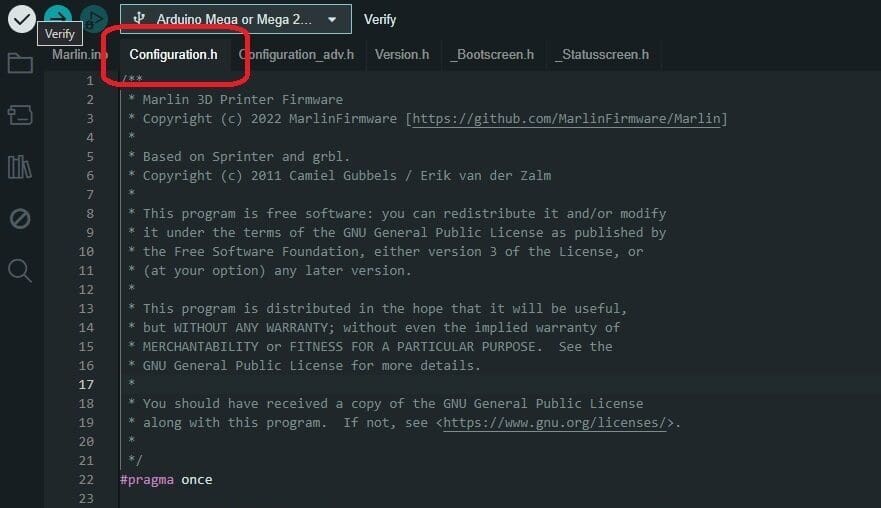

2. Open your firmware (in this case, Marlin) in Arduino IDE.
3. If you wish to make any changes, you can make them now in the printer-specific section of the firmware. (You can find the instructions on how to execute any changes in the firmware itself.)

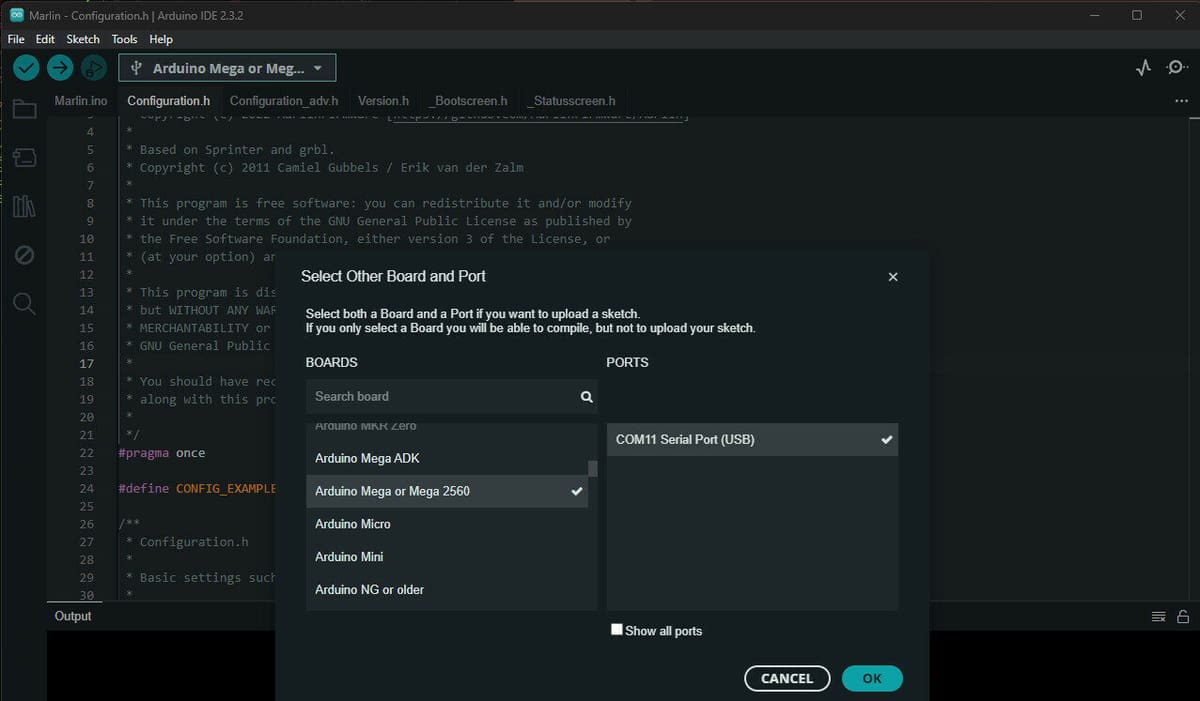

4. In the “Tools” section, select your 3D printer controller board processor, and make sure that the COM port is correctly configured.
5. Once you’re done, click on the “Tick” icon in the top left corner. This will initiate the compiling process. After the firmware is compiled, you’ll get a message that says “Done Compiling”.
6. Upload the firmware to your 3D printer.
7. Initialize EEPROM in your 3D printer.

That’s it! In just seven steps, you’ve changed your 3D printer’s firmware. If you’re more of a visual learner or want more detailed step-by-step instructions for various configurations, there’s a great tutorial by Teaching Tech.

An important note: Be wary of changes to units when entering values for speed or acceleration. Some firmware measure speed in mm/s, but others sometimes use mm/min. Also, some 3D printers need a bootloader to change firmware.

So, now that we know how to make the change, let’s look at the best options around!

Marlin is one of the most widely known and commonly used 3D printer firmware options. Many 3D printer manufacturers include Marlin firmware as is or adapt it to run on their 3D printers (known as forks). With its origins in Sprinter and GRBL (other firmware), Marlin’s strengths are in its high level of customization and strong community support.

It comes in two different versions: one for 8-bit boards and one for 32-bit boards. The 32-bit version offers better and more up-to-date features. The ability to customize almost everything allows you to use Marlin for even your own builds of 3D printers. In fact, Marlin is often used to drive CNC machines and laser engravers.

There’s also a relatively recent fork of Marlin‘s called Jyers. It’s meant for Creality’s Ender 3 V2, as the stock firmware, while based on Marlin, has certain limited capabilities that users may be interested in accessing.

• Website: Marlin
• Key features: Supports a large variety of machines, highly compatible, widely used, frequently updated
• Compatibility: Virtually every 8-bit controller or 32-bit controller boards
• Requirements: Arduino IDE

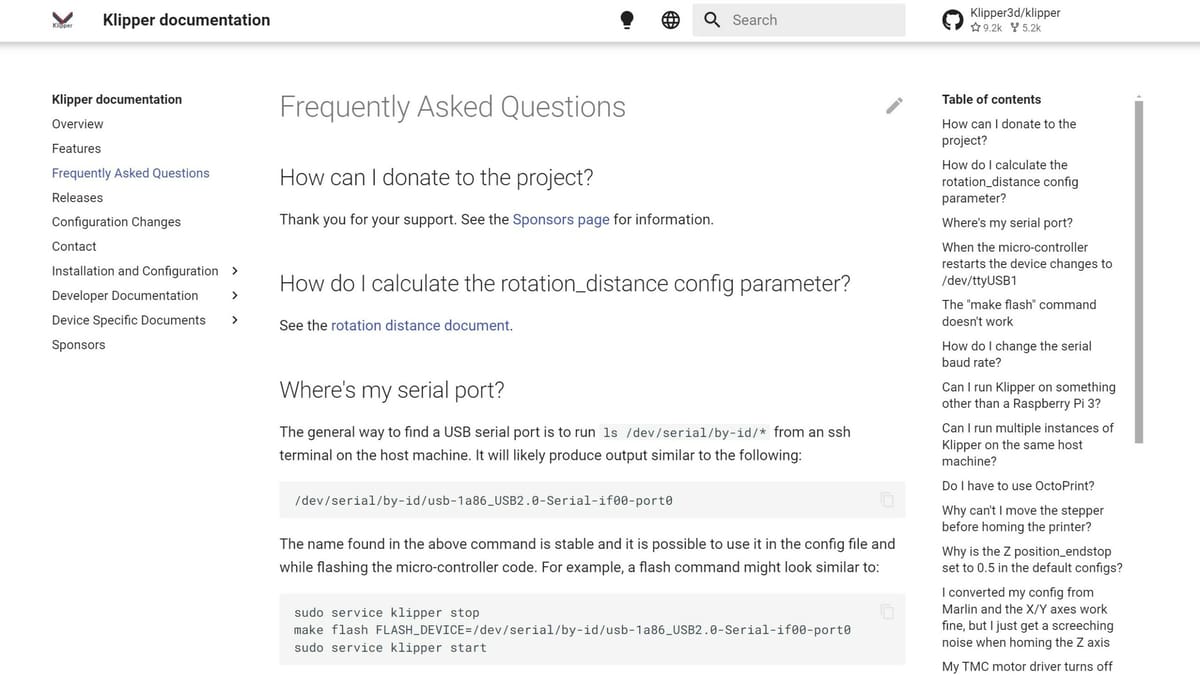

Klipper firmware is a feature-rich and newer 3D printer firmware. The main highlight of Klipper is its ability to do calculations at a high speed, which results in faster 3D printing speeds. Klipper firmware can enable your 8-bit 3D printer to run at speeds greater than 80-100 mm/s. To achieve this, it makes use of an additional single-board computer like a Raspberry Pi.

The features such as “smooth pressure advance” and “input shaping” deliver a highly reliable and good quality 3D printing experience. It can run on many Cartesian and delta-style 3D printers with little additional hardware (other than the Pi). Klipper firmware is written in Python, but with simpler coding.

Now that it’s not just an experimental firmware, you should definitely try this one out for better print quality with faster speeds.

• Website: Klipper
• Key features: Allows printing at higher speeds, OctoPrint compatibility, precise stepper motor movement, well documented
• Compatibility: Atmel ATmega-based microcontrollers, ARM-based microcontrollers, Beaglebone PRU-based printers
• Requirements: Raspberry Pi

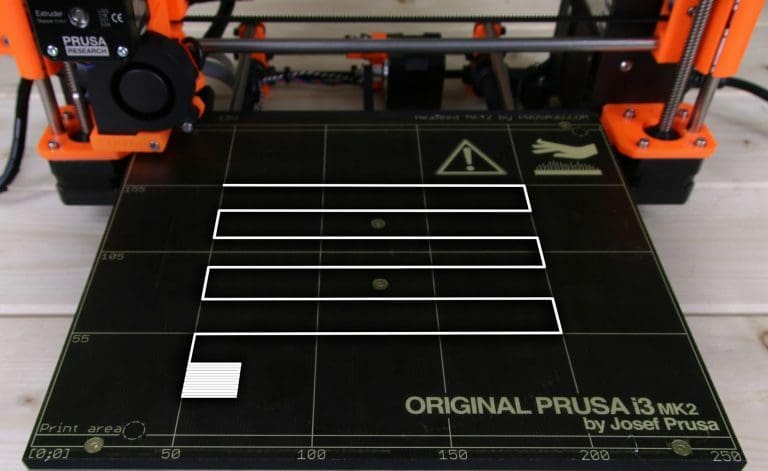

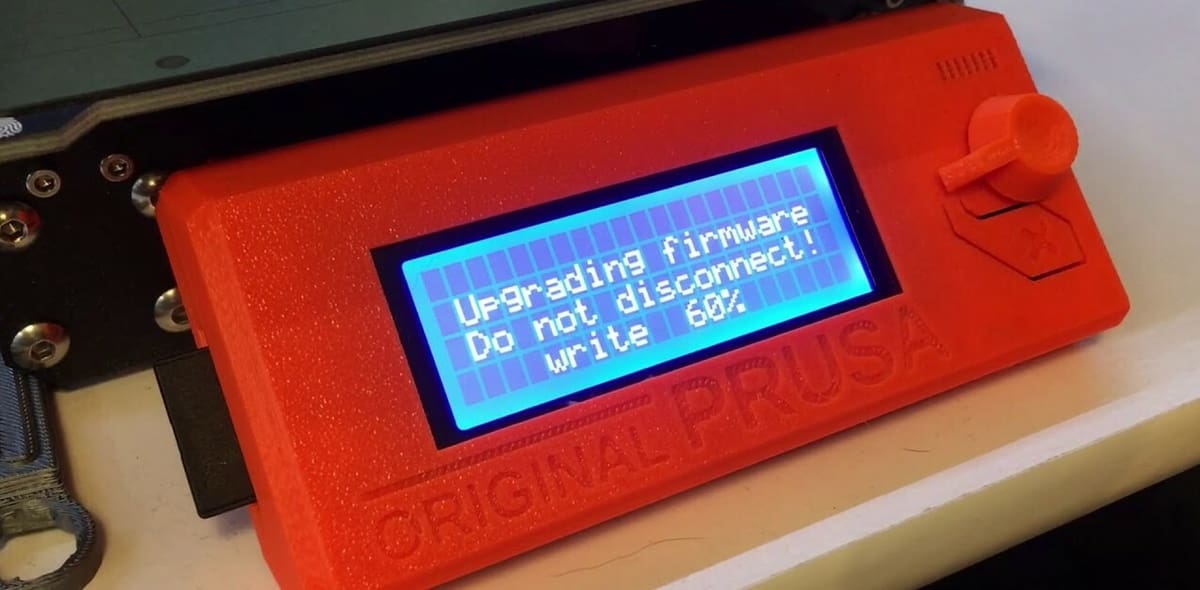

Prusa’s firmware is a modified version of Marlin firmware. It’s tuned to work with the Einsy Rambo boards that come with Prusa 3D printers. This means that the firmware is only compatible with Prusa’s own printers, but it comes packed with neat features and is regularly updated.

Prusa printers are some of the best 3D printers out there with many proprietary features such as multi-material printing support, mesh bed leveling, and TMC 2130 drivers. These features benefit from firmware that’s specifically tuned to work best with them. With the open-source and free nature of Prusa firmware, it’s only gotten better with time.

• Website: Prusa
• Key features: Clean and easy to use, well documented, open source
• Compatibility: Einsy Rambo board
• Requirements: Prusa 3D printer

Repetier firmware comes from the same team that pioneered the popular Repetier Host software. These two work well together and complement each other’s features. Repetier firmware generates very reliable and fast 3D prints and works for both Cartesian and delta 3D printers.

Another great feature is that Repetier firmware is highly customizable. Using the Repetier firmware configuration tool, you can easily input your specific needs and control lots of parameters. Also, being open source and free to download helps with regular feature updates and maintenance of this firmware.

• Website: Repetier
• Key features: Excellent documentation, compatible with Duet-based boards, optimized for use with Repetier-Host, easy to customize
• Compatibility: A range of 8-bit boards, plus RADDS (RepRap Arduino-Due Driver Shield)
• Requirements: Arduino IDE

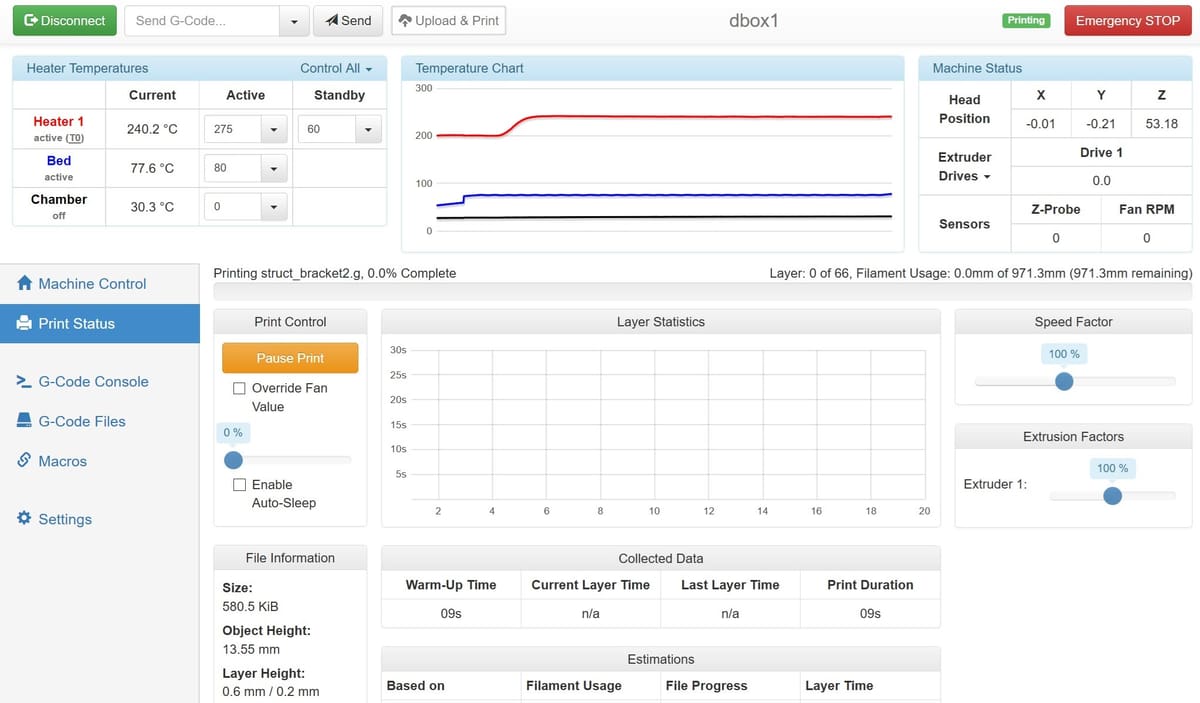

Originally designed for the Duet controller board, RepRap firmware was one of the earlier options to support 32-bit boards. You can easily update the firmware by just making a few changes in the configuration file via an SD card. There’s also a great online configuration tool that can help you define or update your firmware configuration file.

One limitation is that RepRap firmware only works on a few boards, specifically ones that use 32-bit AVR chips. Setting up RepRap firmware can be intimidating, especially for anyone unfamiliar with the general process. However, if you have the patience to read through the documentation (and seek help where necessary), the features it offers are well worth your time.

• Website: RepRap
• Key features: Highly modular, web-based configuration and control
• Compatibility: Duet, RADDS, Smart-RAMPS
• Requirements: A text editor, Pronterface host software, Bossa (depending on the board)

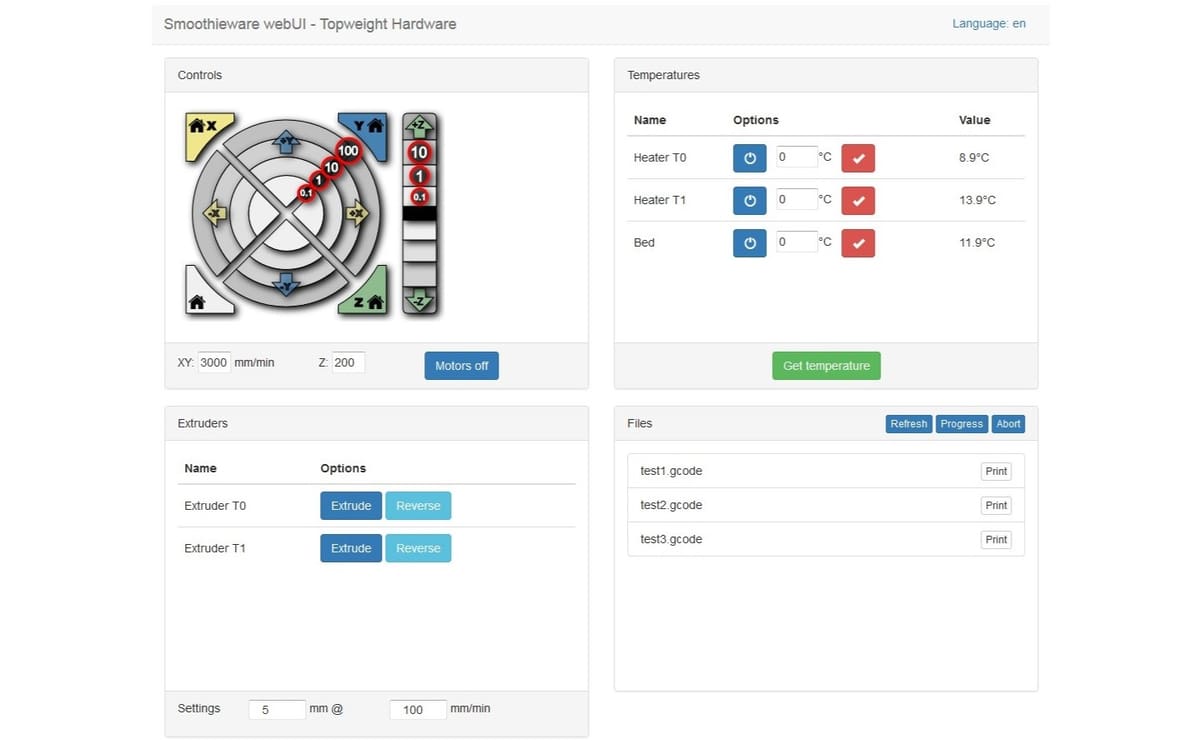

Written for the Smoothieboard controller, Smoothieware is another firmware designed for 32-bit boards. Smoothieware is a multipurpose, feature-rich program that was developed with performance in mind. It also allows for a huge amount of custom configuration, including the ability to add extra stepper motors and configure the board for laser cutting or CNC milling.

Similar to RepRap firmware, Smoothieware is limited to very few boards, the only major ones being the Smoothieboard itself and the Azteeg X5 Mini. The user and development community is also relatively new and small. But with great documentation, this open-source and free firmware is easy to explore.

• Website: Smoothieware
• Key features: 32-bit compatibility, easy and flexible configuration, support for laser cutters and CNC mills
• Compatibility: Smoothieboard, R2C2 electronics board, Azteeg X5 Mini
• Requirements: Text editing software
