Having a hard time getting your symmetries nice and even, or want to flip an object the opposite direction in Blender? Learn more about the Blender mirror modifier which makes this task straightforward!
Blender is a great program for 3D modeling complex objects. Even though it’s free, it offers a lot of handy tools that can smooth out your workflow. One of the things that can be a bit tricky when it comes to modeling is symmetry. Getting an object or character looking the same on both sides can be a real headache unless you use the mirror modifier.
Let’s take a look at how using the mirror modifier can help solve the issue of symmetry. By the way, you might also want to get familiar with merging if you’re making complicated models!
For our first example, we’re going to make use of the Blender Monkey. This is a neat little test mesh packaged with Blender that you can use for your experiments. Since it is also common to use the mirror modifier when modeling characters, it’s perfect for our example!

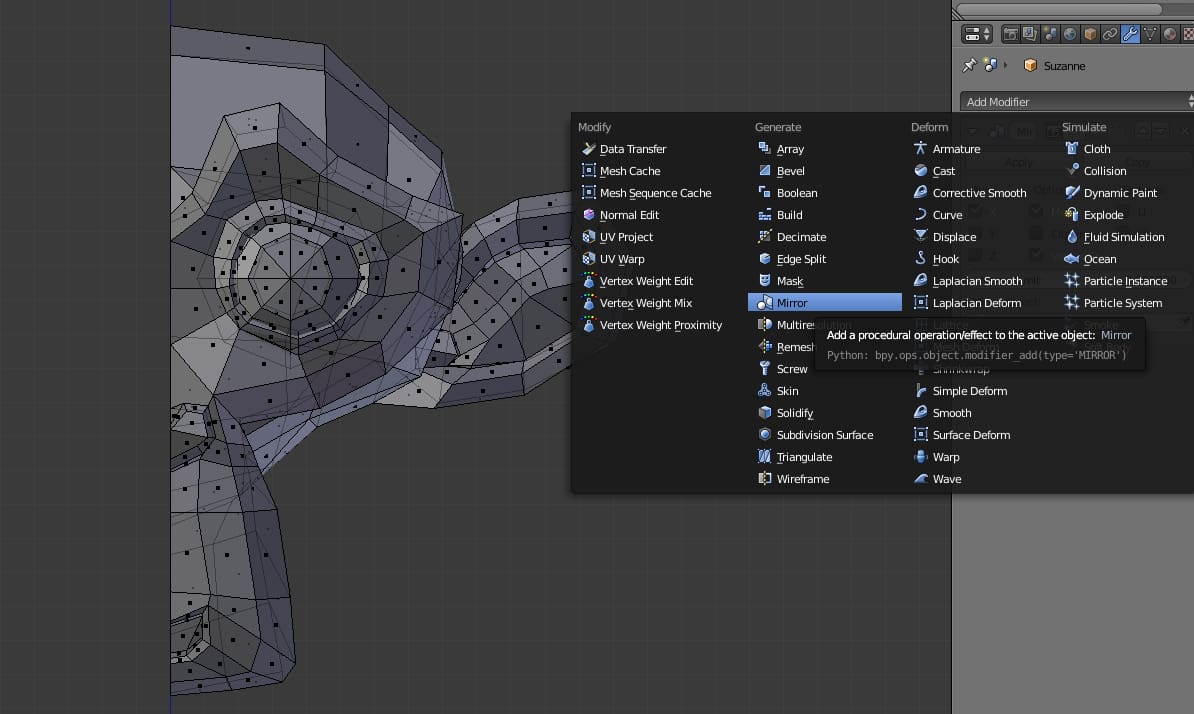

We’ll start with the most straightforward use of the modifier: Mirroring a mesh which is half of an object so that it makes a complete, symmetrical object. For this purpose, the monkey has been cut in half in Edit Mode.
Applying the modifier is easy:
Remember, modifiers can only be applied in Object Mode, although you can still use Edit Mode and preview the effects.

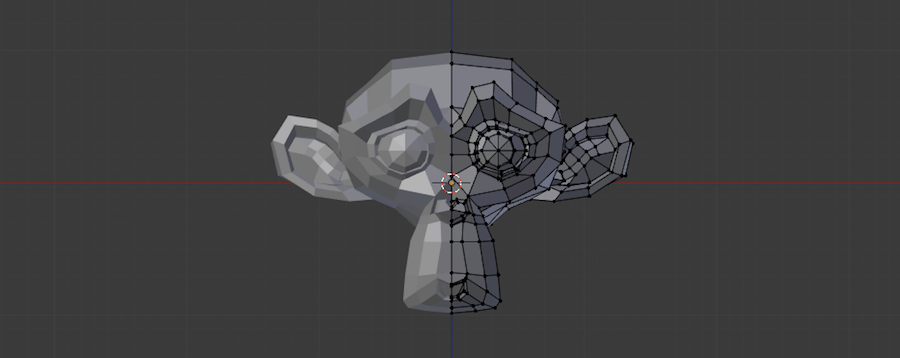

Now, the object is mirrored! The plane of mirroring is based on the Origin Point.

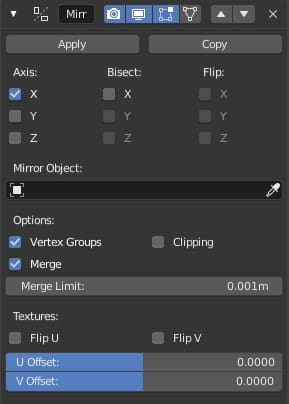

By default, the object is mirrored along the X-axis but can be any combination of X, Y, and Z. Make sure you have “Merge” selected so the two halves are properly combined!
Bisect can be used if you haven’t already cut your object in half for the same effect.
Flip will make the object half switch sides.
The Merge Limit determines how close vertices need to be to the mirror plane to be merged to the other half. A higher limit means a wider range will become merged.
Some of the options are not available in older versions of Blender. It’s important to make sure there are no faces inside the object along the mirror plane, especially if you intend to 3D print the object, as this will affect whether or not it is manifold.

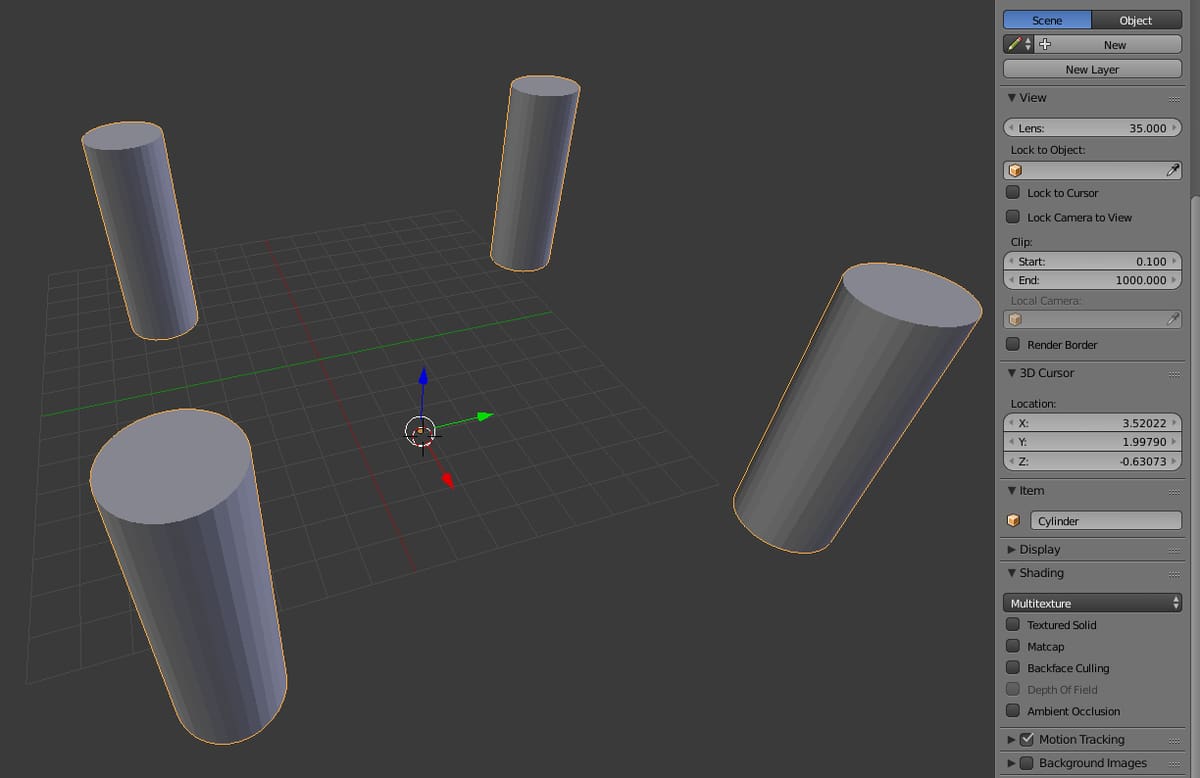

There are other ways to use the mirror modifier other than to just create symmetry in an object. It can also be used to create symmetry of position. An example might be placing four pillars in a square. This requires moving the Origin Point outside of the object so that the entire object is duplicated by the mirror modifier.
Here’s how you would do it:
You can also experiment with the Z-axis to create other kinds of arrangements. It can be an interesting way to discover unique shapes and patterns!
Feature image source: Blender Gallery Archive
