Clogged nozzles are a common issue in FDM 3D printers. Explore this guide discussing the easiest fix: The 3D printer cold pull method.
Clogged nozzles can seem tedious to fix, but before you take your toolhead apart, try the cold pull method. This method makes use of a strand of filament and strategic temperature changes to unclog or clean a nozzle without dismantling the whole thing.
Also called the atomic pull by Ultimaker, this procedure involves using a strand of filament with a molten tip to pick up a glob of material, as well as other small debris, clogging the nozzle, and then pulling the strand out, hopefully taking the clog and debris with it. Repeating this cold pull a few times can fix many nozzle issues without having to dismantle the nozzle and risk injury or incorrect reassembly, so it’s usually the first line of defense against clogs.
Generally speaking, nylon is the best filament for performing a cold pull is nylon. It’s typically recommended because it’s naturally slippery and thus less likely to snap when pulled out of the nozzle. That said, if you don’t have any nylon lying around, go with your next slipperiest and least brittle material.

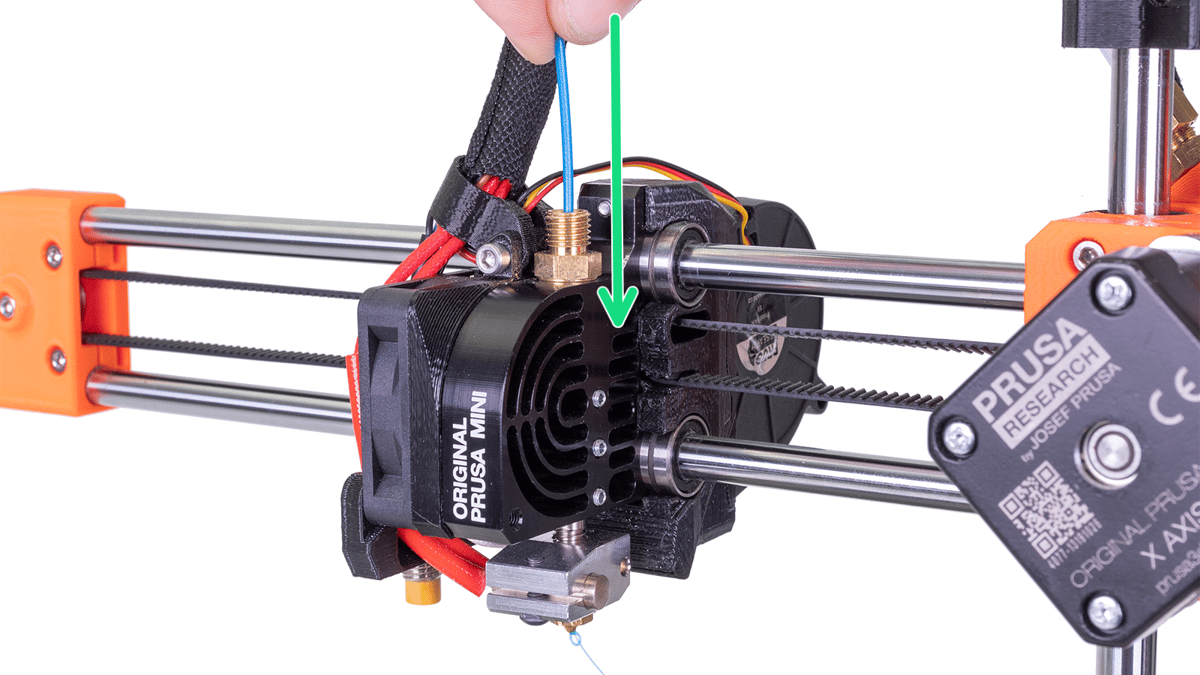

Here’s how to perform a cold pull:
If you performed these steps correctly, then you have now made a negative mold out of the nozzle. Repeat this process until the nozzle is completely free of any old filament. If you’re doing this with the same filament in the same color as the one that got stuck, then it can be very difficult to see your progress. Hence we recommend you use a different color, with nylon filament being the absolute best option.
Feature image source: Thomas Sanladerer / YouTube
