Raise The Roof

2019 Raise3D E2 3D Printer: Review the Specs

Picture of Emmett Grames
by Emmett Grames
Oct 31, 2019
Advertisement
Advertisement
Advertisement

The Raise3D E2 is an industrial-grade machine and a new addition to the market of the "school-friendly" printers. Read on as we review its specs.

Raise3D has made a name for themselves with their big, reliable systems for dual extrusion FDM printing. Now they’re turning to a new market with their latest machine. Focusing on features that make the machine safer and more suitable for the majority of users, the Raise3D E2 has been promised to offer industrial-grade printing while still maintaining high ease-of-use.

An interesting addition to their marketing, Raise3D claims that their new system is also perfect for educators with a plethora of handy features and a well-supported ecosystem of compatible software and materials making it friendly to most users. The previous Pro 2 and Pro 2 Plus, while popular, were by comparison not optimized for education, with features such as size being more closely aligned to the needs of professional makers.

Follow along as we take a dive into the Raise3D E2’s specifications and speculate on the performance of this machine.

Advertisement

Raise3D E2 3D Printer: Review the Specs Features

Image of Raise3D E2 3D Printer: Review the Specs: Features
Relatively compact, this machine is smaller than the preceding Pro 2 (Source: Raise 3D)

The Raise3D E2 has a lot of interesting features to dig through, so let’s break it down and have a look!

Built with Educators in Mind

All of the details of this printer seem to fit nicely into Raise3D’s claim that the E2 is perfect for educators. While enhanced safety features and aspects that greatly increase ease-of-use are certainly appealing, there are still other things to consider. At the moment, the asking price, even with the educator’s discount, paired with the lack (so far) of a structured curriculum makes for a difficult entry point into educational 3D printing. In regards to the curriculum, Raise3D responded to a request for comment, stating that “…there is something we are working on, however, nothing we could announce publicly at this stage.

Independent Dual Extruders (IDEX)

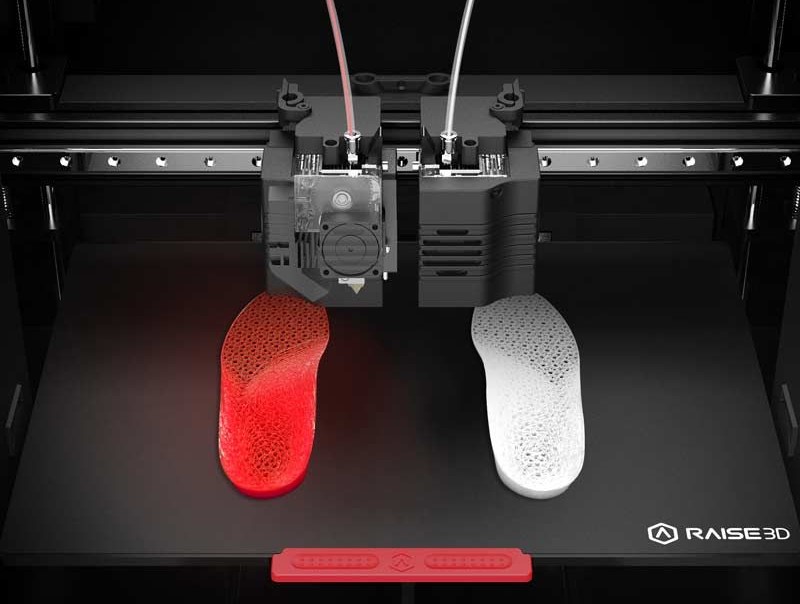

The IDEX extruders allow for Mirror and Duplicate printing (Source: Just3DP)

Similar to the popular BCN3D Sigma printers, the Raise3D E2 will feature an IDEX setup where there are two independently operated tool heads on a single axis. This type of setup typically allows dual extrusion printing without drawbacks such as oozing from the inactive nozzle, as well as some handy printing functions. Advertised by Raise3D are “Inverse” and “Duplicate” printing, which allows the printer to print a mirrored version or a carbon copy of a part, respectively. This can either speed up printing for batches of identical parts or enable faster creation of symmetrical parts, the given example being for the shoe industry.

330 x 240 x 240 Print Area

The print area offered by the E2 is slightly smaller than that offered by the Pro 2, and about as large as most hobby-grade machines, with the popular Prusa i3 MK3S and Ender 3 being good comparisons. This change was probably made to fit in more handy features in a compact package, and also reflects the switch to education, where use in a classroom environment doesn’t necessarily require a huge print volume.

Bed Leveling and Offset Calibration with Industrial Video Assistance

As with the vast majority of printers in this price range, the Raise3D E2 features fully automatic bed leveling which should help you get prints started quickly and easily without worrying too much about that typically problematic first layer.

An interesting feature, Raise3D states that the E2 has an automatic function that creates an offset after leveling the bed, which supposedly decreases print failures. It is not clear how this function works, but our guess is that some form of optical sensor is used to measure the offset between the two nozzles relative to the build plate, and account for any inconsistencies during printing.

An enclosed frame and air filtration system makes the E2 safe to operate, even in a classroom (Source: Raise3D)

Closed Frame Construction with Air Filter

Built with a sturdy aluminum frame, the Raise3D E2 features a fully enclosed build area and filament holder, with an air filtration system. This should aid in reducing fumes and print warping with materials like ABS. The enclosed frame, besides giving a clean and professional aesthetic, should also make the printer relatively safe, with sensitive components and moving parts tucked neatly away behind sturdy metal panels.

A very handy feature for educators, the E2 will automatically pause the current print when the build chamber is opened. This should greatly increase safety in a classroom where curious little fingers can easily get caught in unforgiving moving parts.

Power Save and Filament Run-out

As is becoming a trend in new printer releases, the E2 features sensors that will detect power outages and filament run-outs, pausing the print and saving its progress so the print can be continued when the power or filament is restored.

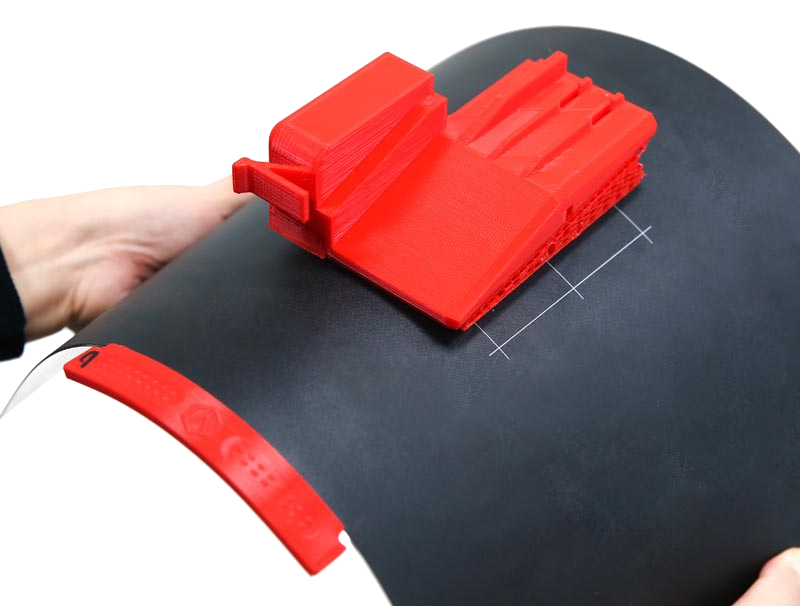

Flexible build plates make removing prints a simpler, safer process (Source: Just3DP)

Flexible Build Plate

The Raise3D E2 features a removable flexible magnetic build surface with a silicone coating. This should, in theory, make removing finished prints from the machine easier, and may even help in streamlining the print process, as a used plate could be swapped out for a new one at the end of a print, giving the E2 a faster turnaround time between prints.

Further Features

Additional features of the Raise3D E2 include:

  • Color Touch Screen
  • Resume print function
  • Filament runout detection
  • WiFi
  • Closed frame construction with an enclosed build chamber
  • Air filtration system
Advertisement

Raise3D E2 3D Printer: Review the Specs Technical Specification

Image of Raise3D E2 3D Printer: Review the Specs: Technical Specification

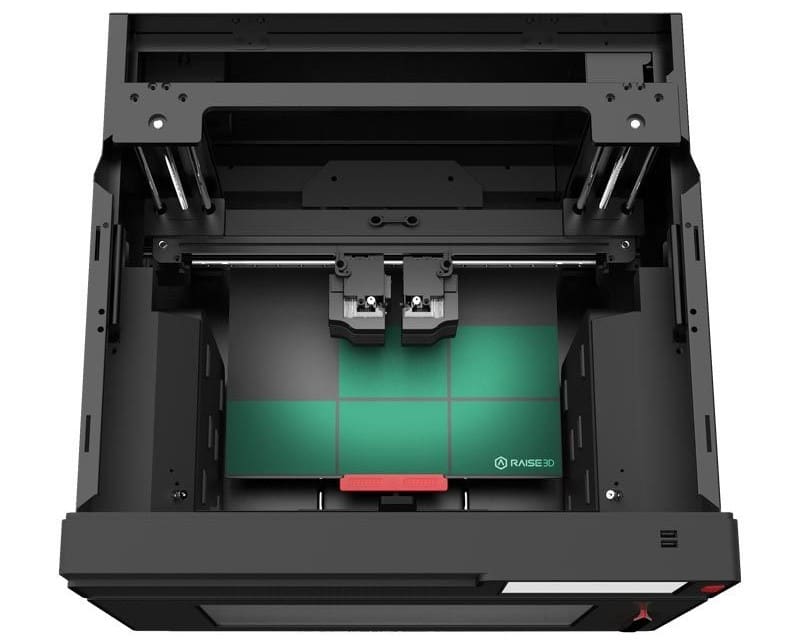

The E2 features a comprehensive automatic leveling and offset system (Source: Just3DP)

General Specifications

  • Technology: FFF (FDM)
  • Year: 2019
  • Assembly: Pre-assembled
  • Mechanical arrangement: Cartesian Style IDEX
  • Manufacturer: Raise3D

3D Printing Properties

  • Build volume: 330 × 240 × 240 mm
  • Heated Bed: Yes
  • Extruder type: Independent Dual Extruder (IDEX)
  • Nozzle size: 0.4 mm
  • Max. extruder temperature: 300 °C
  • Max. print speed: 150 mm/s
  • Frame: Aluminum
  • Enclosed print area: Yes
  • Air filter: Yes
  • Bed leveling: Automatic
  • Connectivity: USB, Ethernet, WiFi
  • Build-in camera for monitoring: Unspecified
  • Print recovery: Yes
  • Filament runout detection: Yes
  • Display: Touchscreen control
  • Other feature(s): Print pauses when chamber door opened, removable flexible build plate

Materials

  • Filament diameter: 1.75 mm
  • Third-party filament: Yes
  • Filament materials: PLA, ABS, TPU, Flexible, Wood, PVA, HIPS, etc.

Software Requirements

  • Operating system: Windows, Mac
  • Recommended Slicer: ideaMaker

Dimensions and Weight:

  • Assembled dimensions: 607 x 596 x 465 mm
  • Weight: Unspecified
Advertisement

Raise3D E2 3D Printer: Review the Specs Where to Buy

Image of Raise3D E2 3D Printer: Review the Specs: Where to Buy

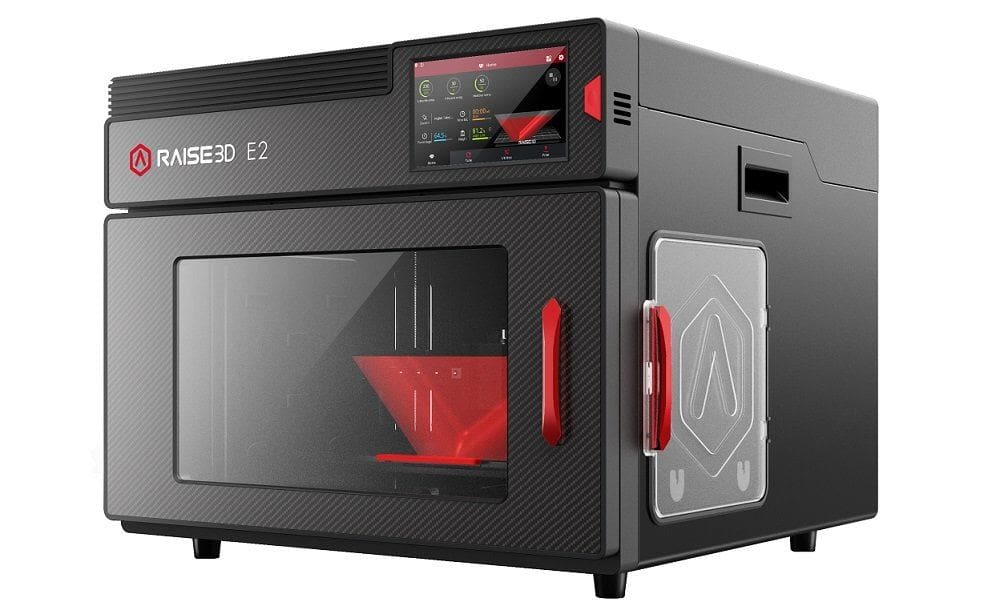

The E2 certainly looks professional with its clean aluminum build (Source: Raise 3D)

The E2 will begin shipping in November, and educators wishing to acquire a unit will receive roughly $500 off. Despite earlier statements that in Europe the E2 would only be available to educators, Raise3D notes, “that, after many requests from customers from other sectors, we have decided to extend E2 to the whole market.

You can get a quote for the Raise3D E2 from the following retailers.

(Lead image source: Raise3D)
