In just the past five years, the additive manufacturing industry has seen dramatic advancements in metal materials, new technologies, and lower-cost metal printers. These factors, along with advanced digital design techniques, are why we’re seeing more applications of metal 3D printing in a wide range of industries from manufacturing to healthcare to aerospace.
Let’s look at why companies are turning to metal additive manufacturing then take a look at what they’re printing.
Today, most new products – from skateboards to fuel injectors – are digitally designed. And all designs take into consideration the manufacturing method. However, engineers designing for 3D printing can ignore most of the constraints of traditional metal part fabrication and design to optimize a part’s functionality while at the same time reducing material, time, and cost.

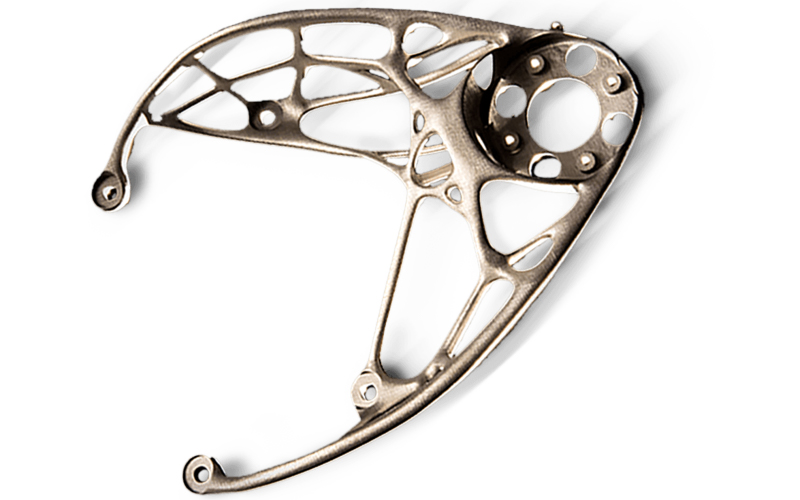

For example, take mechanical parts like robot arms or support structures like airplane walls; engineers use software to simulate mechanical stresses and design parts with strength just where needed. These parts often have alien-looking lattice structures or hollow spaces yet can perform better than traditionally manufactured pieces that appear more solid. These 3D printed parts reduce the amount of metal required, lowering cost and weight.
In this case study by Materialize, a 3D printing service and software provider, the company redesigned a robotic suction gripper to cost less than a third and weigh a quarter of the original, and it needs no assembly.
Because metal 3D printing can create parts within parts, engineers can design a complex assembly in one piece. This part consolidation saves time and labor to assemble parts or perform processes such as welding. It can dramatically increase the efficiency of the final part.
For example, in collaboration with German custom additive manufacturing system manufacturer AMCM, American space company Launcher built a combustion chamber for liquid rocket engines, complete with injectors and internal regenerative cooling channels as a single part. Additionally, the 850mm-tall part is made of specialty copper material CuCrZr, an engineering feat made possible through advanced metal 3D printing technologies.
Putting design aside for a moment, let’s look at the metals.

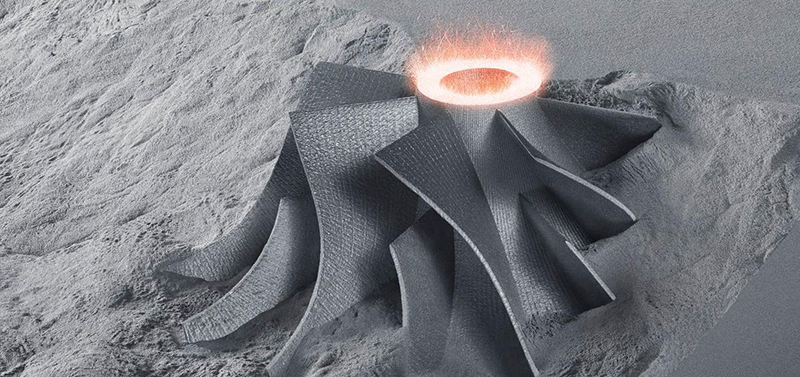

Dozens of metals and high-performance alloys are available for 3D printing with some exclusive to 3D printing. From a wide range of stainless steels for hardness and strength to titaniums that are biocompatible and lightweight, the list includes cobalt cromes, aluminums, nickel-based alloys, gold, silver, platinum, copper, and more. The number of metal purveyors offering lines of proprietary metal alloys for additive manufacturing is growing, which in turn expands the application possibilities.Metal for 3D printing is typically in powder form and, as such, can be more expensive than similar materials in solid form used in machining. However, because 3D printing is an additive manufacturing technology, not a subtractive one such as milling, less material is needed and less material is wasted.
Old doubts about the strength, integrity, and durability of additive manufacturing metals have been put to rest as more parts are tested in aerospace, manufacturing, surgical implants, and virtually everywhere metal is used.
Now that we’ve covered some of the reasons why companies are choosing to 3D print with metal, let’s take a look at what they print.
Unique and limited-volume parts is the largest and broadest category of applications for metal 3D printing spanning everything from manufacturing equipment to high-end bicycle frames to specialty robotic parts.
Companies choose 3D printing when advanced engineering software has uncovered a better, more efficient part design that can only be produced by 3D printing. With complex designs, such as this hydraulic manifold shown above, often the only method is 3D printing.
Similarly, when a specialty metal part requires additional metal tools to create the part, such as a mold, along with additional processes, like welding or assembly, 3D printing is often the faster and more efficient solution. As volume production of a part increases, however, the cost-benefit of metal 3D printing decreases, which is the basis for this category. Some manufacturers, such as BMW, have turned to 3D printing mass production parts, but it remains a niche for metal 3D printing.
Take a look at these companies that turned to metal 3D printing for low-volume and specialty parts:

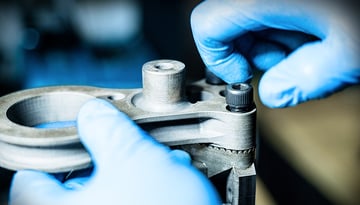

From golf clubs to door hinges, printing a metal prototype that functions exactly like the final machined metal part is another top application of metal 3D printing.
Strong metal prototypes 3D printed in their final metal material provide engineers and designers with a proof of concept that goes beyond look and feel; a product’s usability, ergonomics, and manufacturability can be put to the test. The high cost and long lead times of milling or molding just a few metal parts is a common barrier to metal prototypes. Metal 3D printing, however, requires no tooling, little machine setup, and production is typically faster (a few days compared to a few weeks for milling), enabling engineers to explore more designs in a shorter period of time and compress their product development cycle. In fact, designers can typically churn out iterations at a fraction of the time compared to traditional methods.
Take a look at these companies that turned to metal 3D printing for prototypes:
Whether temporary replacements or permanent spare parts, having the ability to print critical parts onsite and on-demand makes metal 3D printers a smart investment for a wide range of organizations. The global pandemic only made the case stronger for shortening the supply chain and having essential parts locally available.
For original equipment manufacturers, there’s a virtual revolution brewing for their spare parts management. Instead of warehousing thousands of spare parts, manufacturers can host a digital print-on-demand inventory, saving space and workload. Metal 3D printing can produce physical parts from digital files in a matter of hours or days for larger parts.
Beyond spare parts for today’s equipment, metal 3D printing is extending the lifespan of discontinued equipment and expanding repair possibilities for a host of obsolete machines. Combined with 3D scanning to reverse engineer parts and create digital models, today’s technology can not only produce a spare part when no part exists, but even improve upon the part, often reducing weight and the amount of material used.
Take a look at these companies that turned to metal 3D printing for spare parts:
The medical device category of metal 3D printing applications is huge, not only in scope but in volume. In terms of project applications for metal 3D printing, healthcare leads the pack, with everything from dental crowns and bridges to hip implants at the top of the list.
Although dental labs do quite a bit of 3D printing with plastics to create molds and ceramics to produce tooth replacements, 3D printing final metal stainless steel implants is growing.

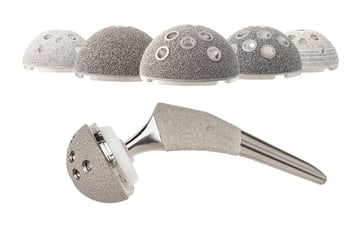

Apart from dentistry, the number of 3D printed metal parts that can be implanted into the human body is nothing short of astonishing. From bone replacements to cranial implants to vascular stents, the essential benefits of 3D printed body parts are customization and unique form.
Surgeons, increasingly dissatisfied with the limitations of one-size, off-the-shelf parts, are helping drive a movement toward made-to-order implants customized for a patient’s unique needs. The shapes of many 3D printed implants are either impossible or difficult to produce with traditional tooling. For example, the hexagonal porous structures of hip-replacement sockets that enable bone growth and increase stability. Plus, for one part, tooling makes the cost unrealistic.
Take a look at these companies that turned to metal 3D printing for implants:

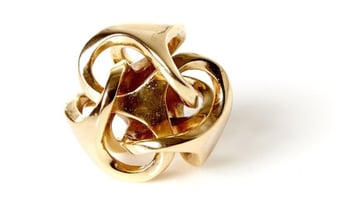

Artists stretch the boundaries of design with 3D printing in mind, especially jewelers, who use the technology to print final pieces out of precious metals. Complex and delicate geometric designs, not possible through traditional methods, enable jewelers to offer unique and bespoke creations.
Jewelers have flocked to 3D printing with plastics for investment casting patterns, which are cheaper and faster to produce than traditional methods, while 3D printing with precious metals is less popular but growing.
Take a look at these companies that turned to metal 3D printing for jewelry:
If you’re a metal 3D printer manufacturer or a company currently using metal 3D printing and you’d like us to feature your case study here, send more information to Carolyn Schwaar.
