Fresh-faced Artillery was founded in October 2018, but it’s already released a worthy contender to Creality’s dominance in the budget 3D printing sector with its first printer, the Artillery Sidewinder X1.
At $400 – give or take – the printer offers an impressive set of features for its price tag.
Since the original released back in 2018, Artillery has rowed through numerous iterations to address (mainly negative) user feedback. With an ear, seemingly, to the ground, the manufacturer has been quick to pick up on this feedback, resulting in the most recent iteration, Sidewinder X1 V4, being a rock-solid printer worth a second look in 2020.
We’ve gone hands-on with the fourth iteration Sidewinder X1 to find out if it lives up to expectations.
Verdict
Pros
- Well-designed machine
- Superfast heating
- Whisper silent
Cons
- Awful filament holder
- Delicate wiring
- Uneven heat dissipation
The stock Artillery Sidewinder X1 already boasts a lot of features you would think of upgrading similar budget printers with.
Be it the X1’s direct drive system, its AC heated bed, or its super silent motherboard and fans, the Sidewinder stands out amongst its budget competitors. Paired with its spacious 300 x 300 x 400mm build volume and sleek appearance, this 3D printer appeals to tinkerers and beginners alike.
Naturally — given the price category — the printer does have its pitfalls. Especially the ribbon cables that endow the printer with such a sleek look are prone to break over time, and the thermal inequality of the build plate can lead to problems when printing with temperature-sensitive filaments.
However, the out-of-the-box experience was — mostly — fun, and we would still recommend it to beginners (with the patience to possibly tinker further down the road) as well as experienced users. It’s a solid starting point capable of great prints.
The Tech
Artillery, a Shenzhen-based 3D printer manufacturer (that also appears to market its printers under the Evnovo brand) leads its lineup with the Artillery Sidewinder X1, a large desktop 3D printer, that boasts topline features such as a sturdy chassis, direct drive extruder system, and a big, fast-heating print bed.
While all were present on the previous Sidewinder X1 machines, the latest is said to be the one. So let’s get into the details.
Sleek Design

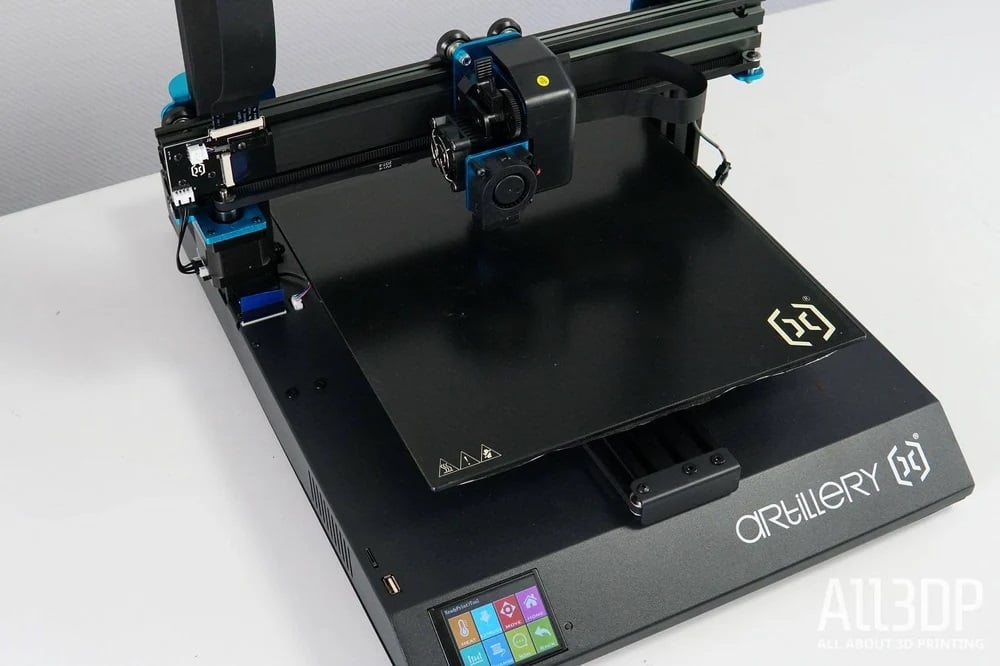

The Artillery Sidewinder X1 is one of the countless Creality CR-10-style printers that surfaced after the immense success of the model. However, the Sidewinder X1 is not a mere clone, neither from the installed tech nor from the overall appearance.
Unlike its source of inspiration, the Artillery Sidewinder X1 has the power supply, mainboard, and touchscreen neatly stored in the base unit. This gives the 3D printer a sleek and professional appearance, quite unlike similarly priced printers that put out much more of a DIY-vibe.
Cables

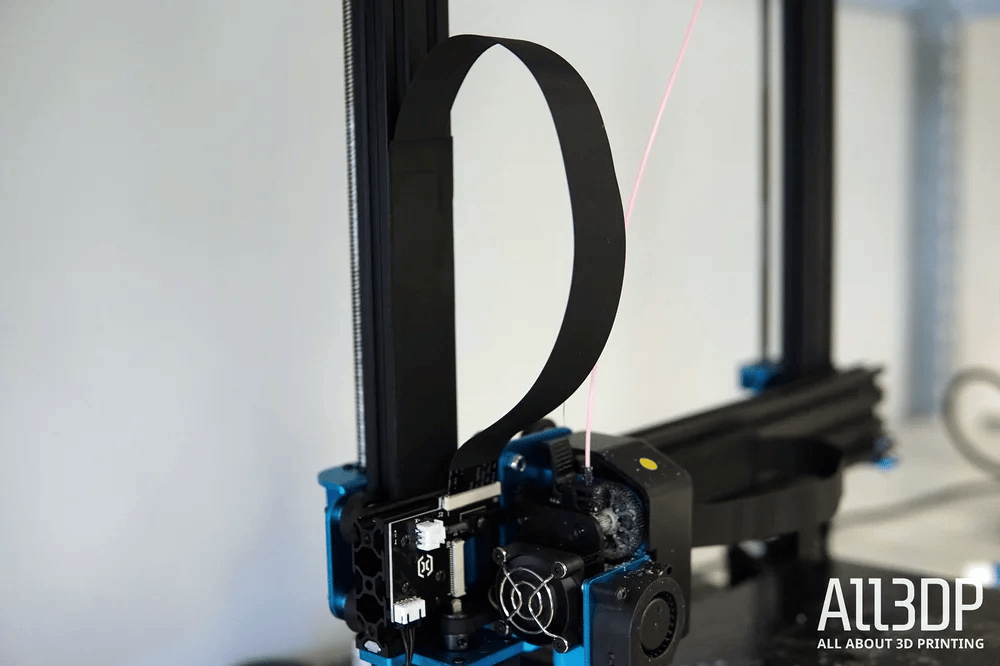

One of the main reasons the Sidewinder differentiates itself from its competitors is the use of ribbon cables. And to be quite frank, this elevates the X1 from a design perspective right up there to the top. Unlike a great number of budget desktop printers and the fistfuls of spaghetti-like cabling they come with, the Artillery Sidewinder X1 deviates itself with neatly arranged large ribbon cables.
However, style and functionality don’t always go hand in hand. Some users of previous X1 iterations faced problems with ribbon cables wearing out and breaking at the connector pins due to rapid motion. Obviously, our contact with the machine is limited compared to an owner running one for months. Still, during our fortnight review, there was nothing to suggest the cables were put under undue stress, even at the printer’s limits of movement. But Artillery does include spare ribbon cables, so it seems they are aware of the problem.
To prolong the lifetime of the ribbon cables and connectors, tinkerers have come up with multiple cable covers and strain reliefs to download and 3D print on Thingiverse.
The Framework
Another welcomed and seldomly seen feature is the use of hefty 20 x 60 mm extrusions for the bed rail and x-axis on the X1. Having a sturdy Y-axis rail is somewhat common nowadays, even on budget printers. Still, the 60 x 20 mm extrusion on the X-axis is a rarity, as most printers make do with a 40 x 20 mm at best, even 3D printers with a direct drive setup – such as the Creality CR-10 V3. Now keep in mind that these notoriously need more rigidity on the X-axis due to the increased weight of the extruder.

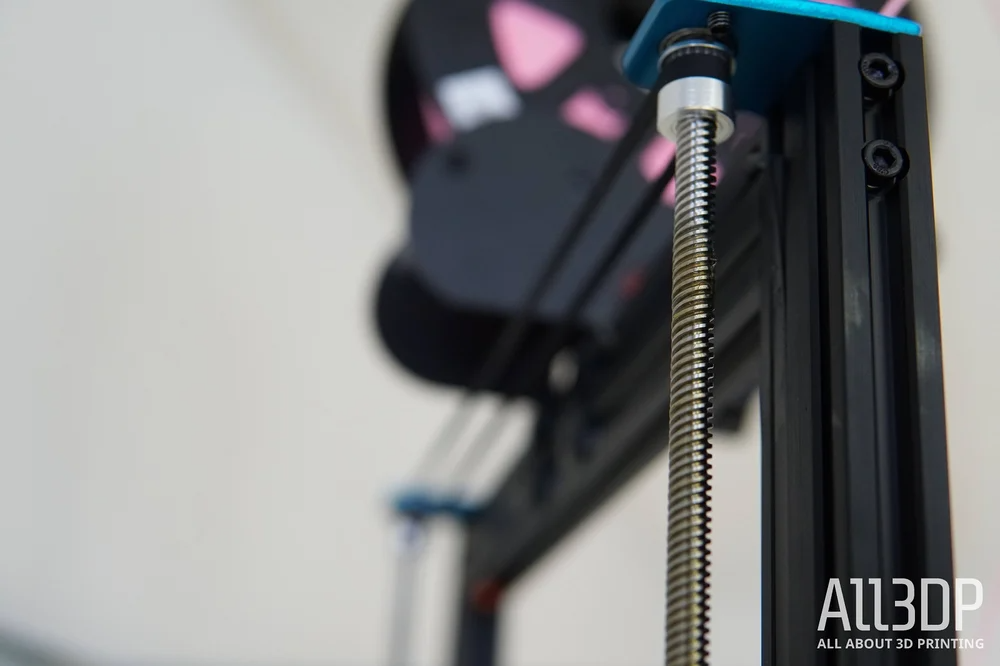

The Z-axis is operated by a dual lead screw setup with anti-backlash nuts on the back, and to keep them synchronized, a connector belt with a pulley — a measure that addresses potential desyncing of the dual lead screw motors over time. While it is not the top-notch solution, as dual end stops would be, it does a decent job, and we faced no desyncing throughout our review.
The Z gantry itself is made of strong 20 x 40 mm extrusions held in place atop the base unit by four screws. Having a solid scaffold ensures less Z-wobble when using that tall build space. However, we found having a more robust connection between the base and gantry – such as an angle connector – wouldn’t hurt, especially as the Sidewinder tends to struggle with Z-wobbling towards the top of its Z-axis height.
Nonetheless, the Sidewinder manages to put out a sleek but also sturdy appearance.
The Bed
The heart of every 3D printer is its print bed. In the Artillery Sidewinder X1’s case, the heart is comprised of a 300 x 300 x 400 mm sized porous ceramic coated glass surface.
Print volume-wise, this puts the Sidewinder X1 slightly above average. However, where the Sidewinder is pretty much uncontested, is its ability to get from naught to printing. To quantify it, the Sidewinder’s heated bed leaves others in the dust, heating from room temperature to 60°C in approximately 45 seconds. And, for the sake of completeness, the nozzle is in no way inferior.
But back to the bed at hand. The Sidewinder achieves these Speedy Gonzales-like top speeds due to mounting the heater directly to the underside of the glass sheet with no metal plate in between, and the bed being AC heated instead of the more commonly used DC-heated variant. This means the bed is heated directly with 220/110V (depending on your region) instead of 24V.
While on the one hand, this does lead to superb heating times, there is also the risk of an electric shock, especially if the connectors are exposed to a lot of motion over time. In Artillery’s defense, we found literally no loose ends; all the wires are insulated. Nonetheless, we would have wished for strain relief for the hotbed wiring.

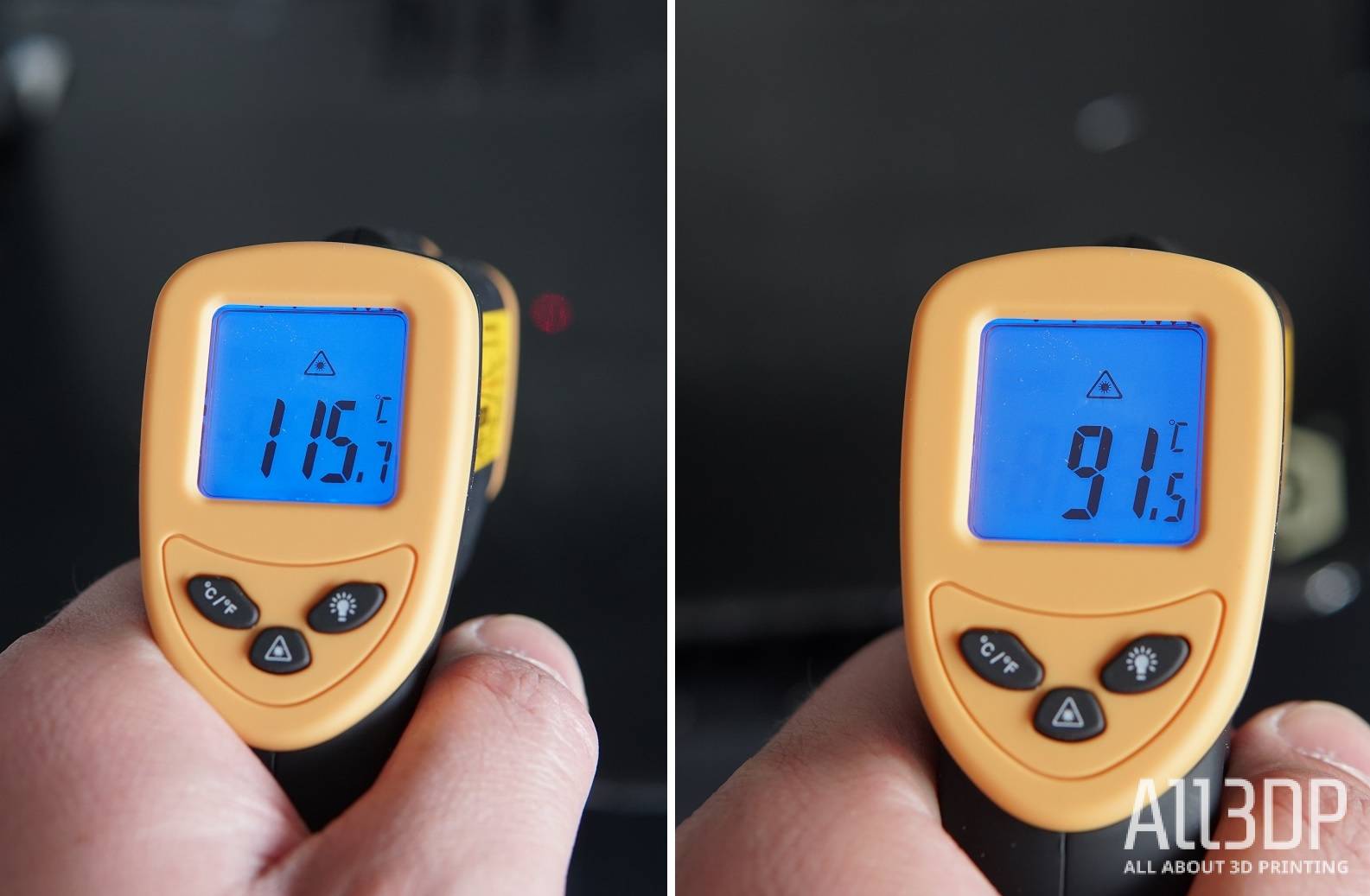

We did notice, though, is that the actual surface temperature of the plate falls short by around 10°C, something to keep in mind when printing with temperature-sensitive materials that require a heated bed. But, the major headache is that the heated bed does not provide equal thermal dispersion, meaning that the temperature decreases towards the out fringes of the bed. This can cause some major adhesion problems when printing (large-sized) objects with materials that are prone to warping.
The print surface is a ceramic glass plate, much like the oft-copied Anycubic Ultrabase and its superb bed adhesion. In short, the textured surface expands when heated, providing the needed material adhesion and shrinks again when cooling down, resulting in the prints popping right off.
One last minor drawback is that it is not removable. Granted, with the prints popping off nicely, there is seldom a need to remove the print bed to shove in the spatula sideways in order to get the print off the bed. But especially with the bed’s thermal inequality, using some extra bed adhesion in the form of glue might come in handy, and removing and cleaning off the glue after a print would be much easier with a removable bed.
All in all, though, we would prefer the coated glass build plate over a regular glass or PEI sheet any day of the week.
The Extruder
Well, if the bed is the heart, the print head is … heck, we don’t know. Anyway, this is where the magic happens. In the Sidewinder’s case, this is done by a direct Titan Aero-style extruder and a Volcano-style hot end.
Having a direct drive setup is something of a rarity in the Sidewinder’s price segment – here it performs well and we’re glad for its inclusion. We already mentioned the 40 x 60mm extrusions allowing for stable travel of the print head and reducing backlash, as well as the sturdy gantry and dual Z-axis lead screws.
As indicated earlier, the Sidewinder’s hot end is also rather speedy when it comes to heating (naught to 200°C in under one minute) and can go a high as 270°C. However, we would recommend staying within the consumer material temperature range of about 250°C for the most part as otherwise, the cold end of the extruder might become damaged.
As is typical for the volcano-style hot end, you can work with some pretty high flowrates, due to its elongated melt zone, allowing you to use nozzles with a 0.8mm or even 1mm diameter effectively.
As customary, the Artillery Sidewinder X1’s extruder is equipped with two fans. One to cool the extruder, which does a decent job, no complaints there, and the other one to cool the prints, which, well, let’s just say it’s clocked in. It seems to be the single most-agreed-upon opinion across all boards and forums, that the second thing you should print is one of the many fan duct alternatives for the Sidewinder X1 on Thingiverse (the first thing should be a filament spool holder). From our experience, the 30 x 10mm part cooling fan is not completely useless, but by no means optimal. Ironically, for the little it does, it is still the loudest part of the machine during printing.
Connectivity & UI

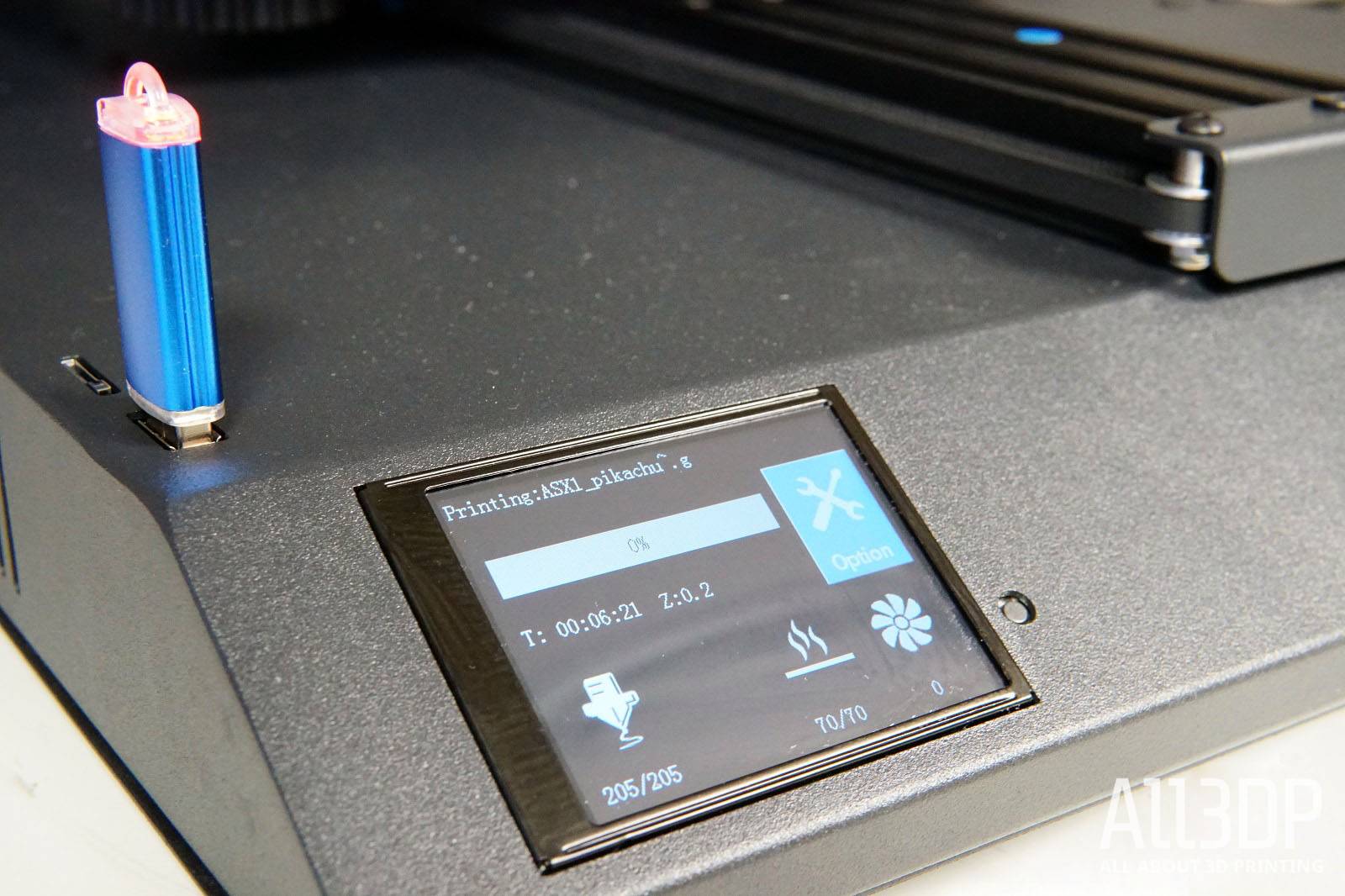

To oversee the whole printing process, the Sidewinder X1 features a 3.5-inch color touchscreen. The interface is easy to use, with different colors for different submenus. Also, all the features are accessible, and we couldn’t find any of the bugs you sometimes find on similar budget firmware.
Connectivity-wise, the Sidewinder X1 does support micro SD, and – our personal favorite – USB.
Call in the Artillery
The Setup and Preflight Settings
The Artillery Sidewinder X1 comes snugly packed in a well-organized box and is very easy to set up. After mounting the gantry to the base with four screws, you plug in a couple very neatly arranged ribbon cables, bolt the filament holder to the top, and the printer is good to go.
The Sidewinder lacks bed leveling sensors, meaning you will have to fall back to the tried-and-true method of sliding a sheet of paper in between bed and nozzle, and turning the knobs under the bed until the bed is even. However, with the Sidewinder’s assisted leveling system pinging the hot end to the four corners of the bed for you, it’s a trivial task.
Artillery does not provide a proprietary slicer, which leaves you to choose from a bouquet of open-source slicers. We decided to go with Cura, for which you can download the profile on Artillery’s GitHub repository. All-in-all Cura is one of the most matured slicers, providing you with the full range of parameters you can experiment with in order to fine-tune your print settings. The settings by Artillery worked fine though; we would only recommend to tone down the default printing speed from 100 mm/s to a more moderate 50-60mm/s.
While the possibility to cut printing time down is always tempting, we found the printer to fare noticeably better when slowing the printing speed down, especially with large prints as the printer’s movements caused noticeable Z-wobble in full height prints.
The Prints
Hands down, the first thing we would do, is print an alternative filament spool holder. You will know why when you change filaments on the Sidewinder yourself. The stock filament holder consists of two parts bolted to the top frame. If you have filament from only one brand, or better yet only one spool size, go ahead and skip this paragraph. If not, you will find yourself constantly loosening, adjusting and tightening the screw for the filament holder, depending on the spool you are currently using.
Especially if you have your printer set up on a shelf, or up against the wall in general, this means constantly turning your printer around to reach the screws in the first place. Do yourself a favor and print a one-size-fits-all extension.
After the necessary prints, we went to some fun ones to really rowel the printer through all the hoops. We started with your run-of-the-mill PLA filament, and gradually increased the difficulty with more demanding filaments.
When it comes to PLA, the Sidewinder X1 really is a more than solid choice.

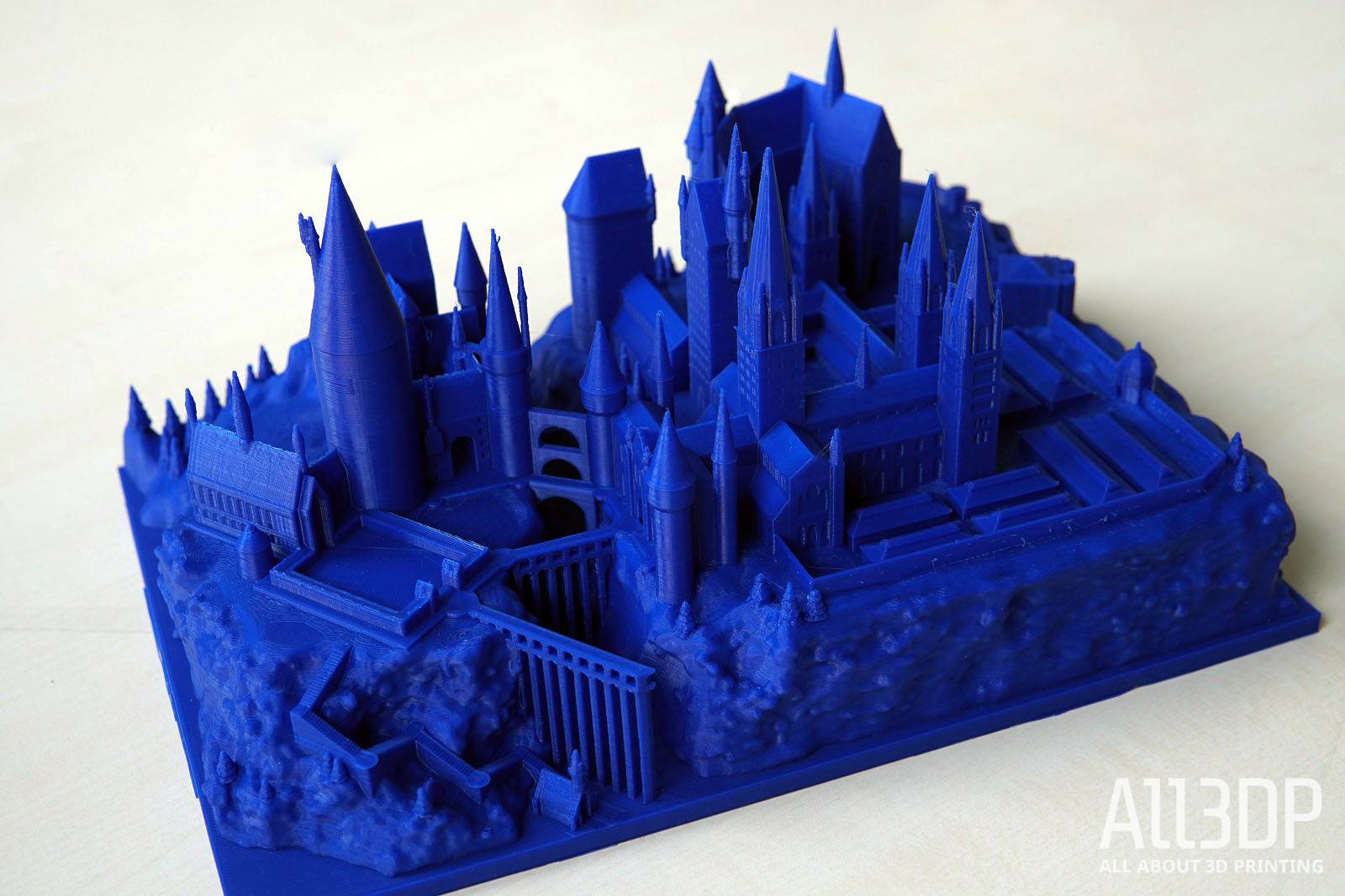

During our review, we printed many and more PLA prints, and all of them turned out well. For the most part, we kept printing speed at around 50-60 mm/s, but even when we went for full throttle at 100 mm/s, the prints still turned out aesthetically pleasing (up to a certain height, where noticeable Z-wobbling occurs).
Astonishingly, the Sidewinder X1 did handle ABS rather well, without any warping off the build plate. Especially with the Sidewinder’s inconsistent thermal dissipation, as we mentioned earlier, this came somewhat as a surprise. We did use a ton of glue beforehand though, just to make sure. Nonetheless, printing with ABS in an unenclosed printer is always tricky, but the Sidewinder did surprise us.
Keep in mind, even though the Sidewinder is listed in some spec sheets as having a heated bed capable of reaching 80°C, it can actually easily go as high as 120°C, which we would recommend when you try out ABS, as it adheres better to surfaces heated to 100°C or above.

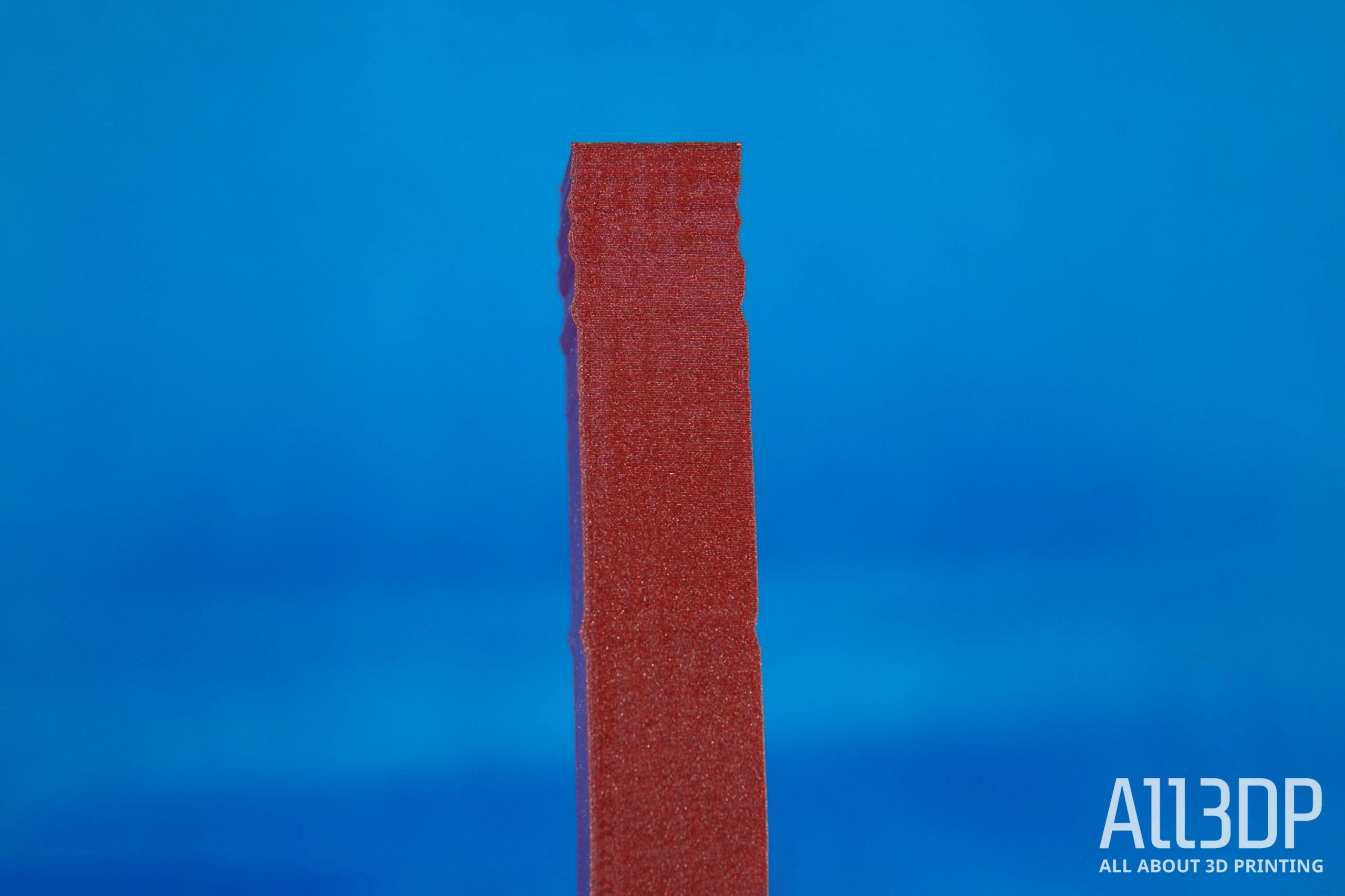

Surprisingly, we ran into more problems when we tried out the popular choice of ABS-alternative filament, PETG. Offering similar properties in rigidity and strength, it is generally easier to process, as it is less sensitive to the temperature differences that lead ABS to warp. However, when we printed with PETG, we encountered a different problem. The printer produced a lot of blobs, that even lead to some prints failing pretty much within the first layer. The blobs and other depositions transform an otherwise flat layer into an unwanted landscape, with the nozzle rocking over blob-mountains, causing layer shifts or even just ripping the layer free of the bed.
This seems to be a recurring issue with volcano-style hot ends, as they tend to ooze a bit, even after we tried to adjust retraction settings and enable the coasting feature in Cura. We did manage some improvement, but overall the print quality of PETG leaves much to be desired.
When it comes to flexible filaments, the direct drive extruder had no problem with feeding it, and the print result was passable. A little stringing here and there, but nothing out of the ordinary.
All in all, the Sidewinder can print with a range of different materials, but it’s the everyday prints with PLA where it really reaches its full potential.
The Usability
The Sidewinder X1’s menu is punchy with a lot of colors and convinces with ease of use. And that’s pretty much all there is to say about it. You touch it. It does the things you touch.
The inbuilt features such as filament runout sensor or the resume print function worked flawlessly. The filament runout is especially good, as the Sidewinder’s bed stays heated when the filament runs out in order to keep the print adhered. This lets you come back even hours later to add new material and restart the print, without the fear of the print detaching. But make sure not to manually move the print bed when switching filament, otherwise the printer loses its coordinates, and your print will fail. You can move the axes via the touch screen, though, and the printer will move back before resuming. During a power outage, naturally, the bed does not stay heated; nonetheless, the printer picked up right where it left off in our test of the feature.
Noise level wise, we already touched on it a couple of times during our review, but the Sidewinder X1 really is super quiet in comparison to other 3D printers. Due to the lack of a fan for the power supply in the base unit and even with the parts cooling fan on (during print jobs where it’s recommended), the operational noise-level stays around 45 dB, somewhere between a library and a quiet apartment on the decibel table. So, yeah, it is really quiet.
Is it Worth it?
The Artillery Sidewinder X1 does bring innovation to budget Cartesian printers, especially the AC heated bed and the stable direct drive extruder, which sets it apart from similar printers in its price section. Out of the box, the printer convinces with a sleek look, almost silent operating noise levels, and decent print quality.
On the other hand, you will likely have to exchange some parts of the printer at some point, especially the ribbon cables, as they are prone to break over time, and presumably you’ll need to add a strain relief for the hotbed, for your own safety. Thanks to the massive online community around the Sidewinder X1, there are DIY 3D printable workarounds to some of the possible problems. Others, such as the notable Z-wobble or the uneven heat dissipation, are harder to get by, as especially the latter can restrict the printer in its applications.
Nonetheless, we had our fair share of fun with the printer. It is capable of stellar prints, albeit with a small time investment to find the optimum settings. Then again, we don’t have to retrofit the machine in a couple of months, as many users will.
Tech Specs
GENERAL SPECIFICATIONS
- Technology: FDM
- Year: 2019
- Assembly: Pre-assembled
- Mechanical arrangement: Cartesian-XY-Head
- Manufacturer: Artillery
3D PRINTING PROPERTIES
- Build volume: 300 x 300 x 400 mm (11.8 x 11.8 x 15.75 inches)
- Layer height: 0.1 mm
- Extruder type: Direct drive
- Nozzle type: Volcano
- Nozzle size: 0.4 mm
- Max. extruder temperature: 240 °C
- Max. heated bed temperature: 80 °C
- Frame: Aluminum
- Print chamber: Open
- Bed leveling: Manual
- Print bed: Rapid-heating AC bed
- Display: Touchscreen
- Connectivity: SD, USB cable
- Built-in camera for monitoring: No
- Print recovery: Yes
- Filament sensor: Yes
MATERIALS
- Filament diameter: 1.75 mm
- Third-party filaments: Yes
- Materials: PLA, ABS, flexible PLA, TPU, wood, PVA, HIPS.
SOFTWARE REQUIREMENTS
- Recommended slicer: Cura, Simplyfy3D, Slic3r
- Operating systems: Windows, Mac, Linux
DIMENSIONS AND WEIGHT
- Outer dimensions: 550 x 405 x 640 mm
- Weight: 16.5 kg
